Positioning

3.2 Mounting the luminaire to
the fastening element

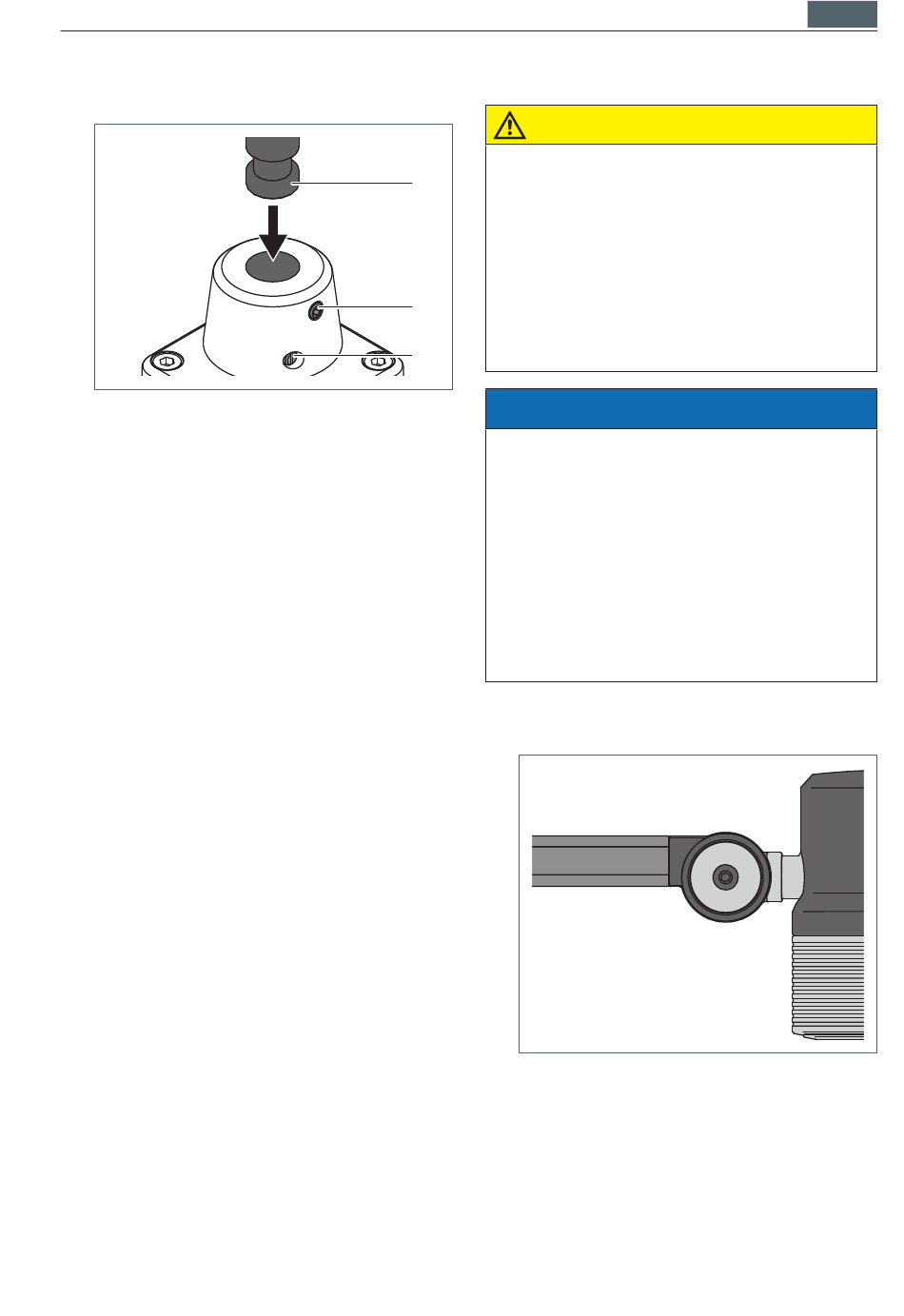

Fig. 3: Mounting the luminaire to the fasten-
ing element.
X Unscrew the screw C from the fasten-
ing element, see Fig. 3.
X Insert the stud A of the luminaire into
the opening of the fastening element.
X To secure the luminaire, screw the
screw C into the fastening element.
3.3

Adjusting the friction

You can adjust the ease with which the arm
in the fastening element can be rotated
(= friction).
X Screw the setscrew B into the fasten-
ing element until reaching the desired
friction, see Fig. 3.
4. Positioning
CAUTION
Risk of injury caused by a falling or
A
tilting luminaire.
Personal injury and material damage.
X Hold the luminaire head when
unscrewing the pivot screws.
B
X After positioning the column,
tighten the pivot screws.
C
NOTICE
Material damage caused by wrong
handling.
Damage to the luminaire.
X Do not move the pivots opposite
to the intended direction of rota-
tion.
X Do not bend the flexible tube and
avoid small bending radii.
X Place the luminaire in the desired posi-
tion.
Fig. 4: Pivot and pivot screw.
X For luminaires fitted with pivots: Tighten
each pivot screw until the luminaire is
fixed in the desired position, see Fig. 4
ENG
21
