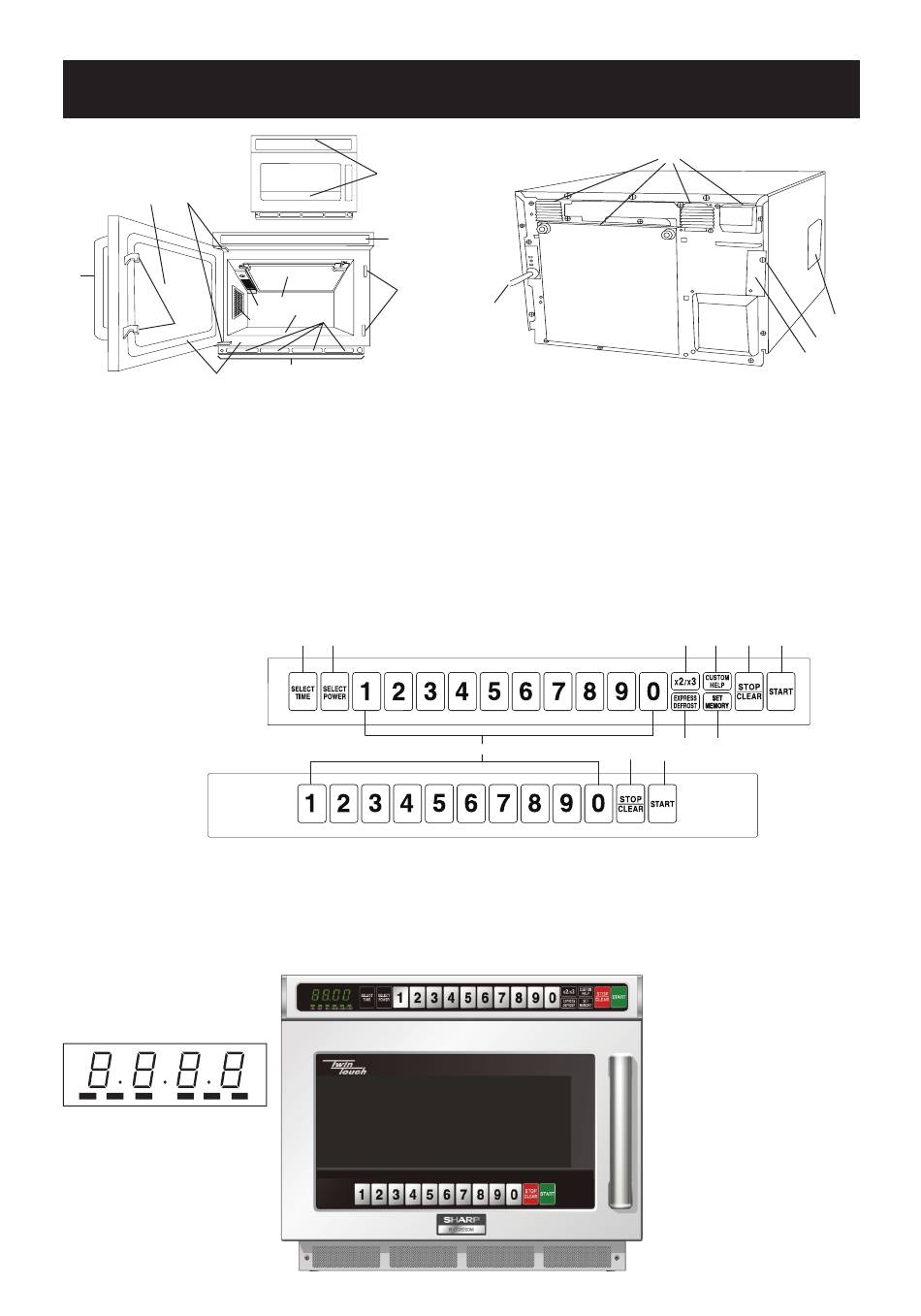

PART NAMES

10 9
12
11
8
1. Touch control panels
2. Door latch openings
3. Ceramic shelf
4. Splash cover
5. Oven light
6. Air intake openings
7. Air intake fi lter
8. Door seals and sealing surfaces
9. Door hinges
10. Oven door with see-through window
11. Door latches
1. SELECT TIME pad
2. SELECT POWER pad
3. DOUBLE/TRIPLE QUANTITY pad
4. CUSTOM HELP pad
5. STOP/CLEAR pad
ON DEF. NO. CHECK LOCK FILTER
1
1
2
4 18 3
6
5
7
1 2
15
12. Door handle
13. Service window for replacing the oven light bulb
14. Ventilation openings
15. Power supply cord
16. Mounting plate
17. Screw for mounting plate
18. Oven ceiling cover
7
6. START pad
7. Ten number pads
8. EXPRESS DEFROST pad
9. SET MEMORY pad
