INSTALLATION
Table 15. Typical Power Connections (Figure 28 and Figure 29)
Item Description
1 NEMA L6-30P
2 NEMA L6-30R
3 IEC-309 (P+N+G) 32A Plug
4 IEC-309 (P+N+G) 32A Receptacle
5 Country-specific UPS power (mains) cord
IBM FC IBM PN
1424 31F4466
6 Output power (UPS to PDU) cord
IBM FC IBM PN
2971 42R4321
NOTE P64 does not support i5/iSeries PDU 5162, IEC-309 (3P+N+G) 16A.
PDU
IBM
i5/iSeries 5161
or
p5/pSeries 9177

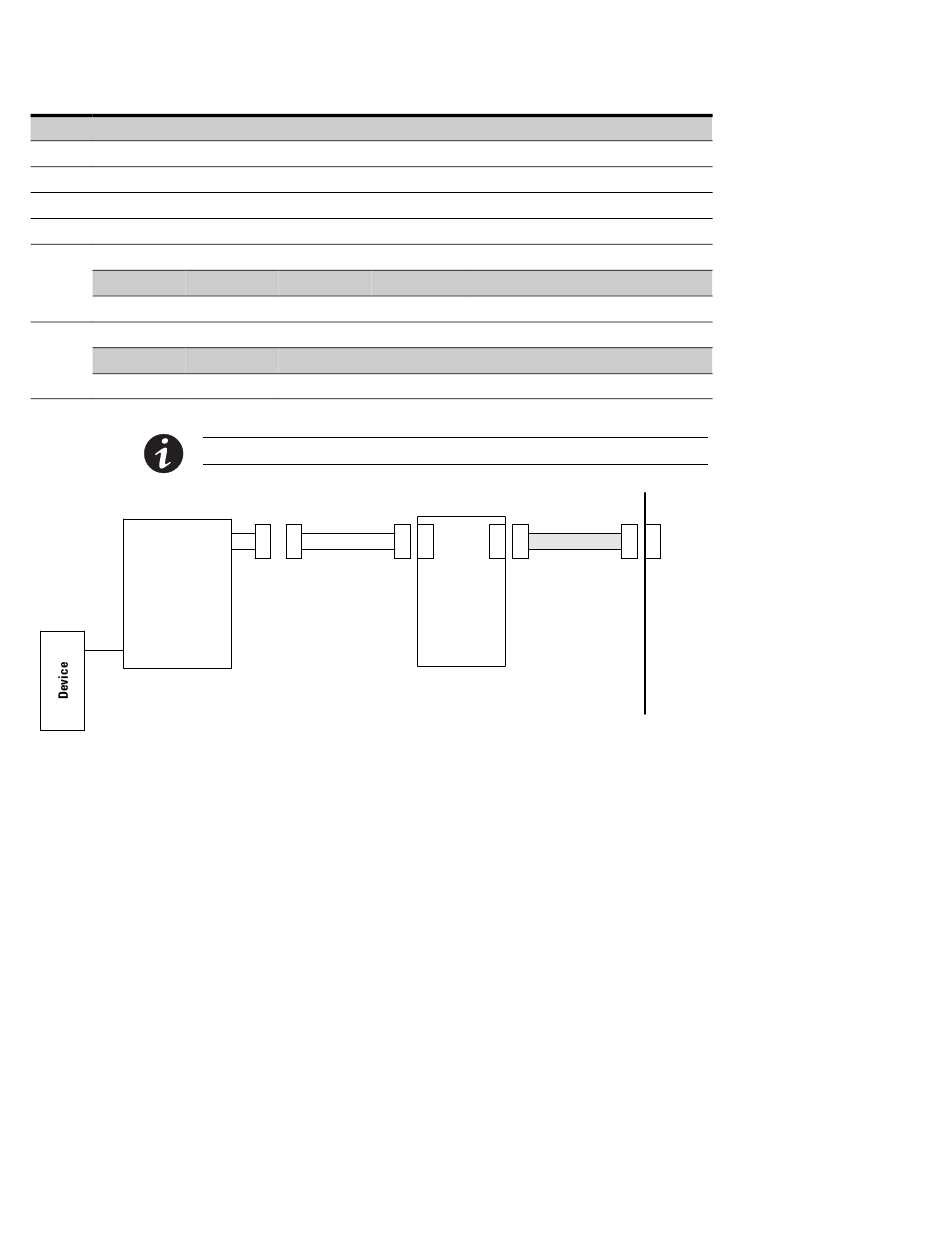

Figure 28. P64 International (IEC) Rack with Non-Redundant Power
28
EATON Powerware
Plug Type
46
3 4 Eaton (6)
®
9125 (9910-P64) UPS Installation Guide for IBM
Supplier Description
IBM IEC-309 (P+N+G) 32A, 4.3m/14 ft
1 2 1 2 IBM
P64
4200W
UPS
® S
Applications 164201637 Rev A
Mains
Varies
5 5
