PME-MP30DP
4

Connections

WARNING
Before starting the device, read the safety instructions.

4.1 Pin assignment

For the pin assignment of the MP30DP module please refer to the Operating
Manual "PME industrial measurement electronics with MP30 module field bus
link". On the front panel of the MP30DP is an additional 9-pin D-sub
connection socket for the Profibus connection.

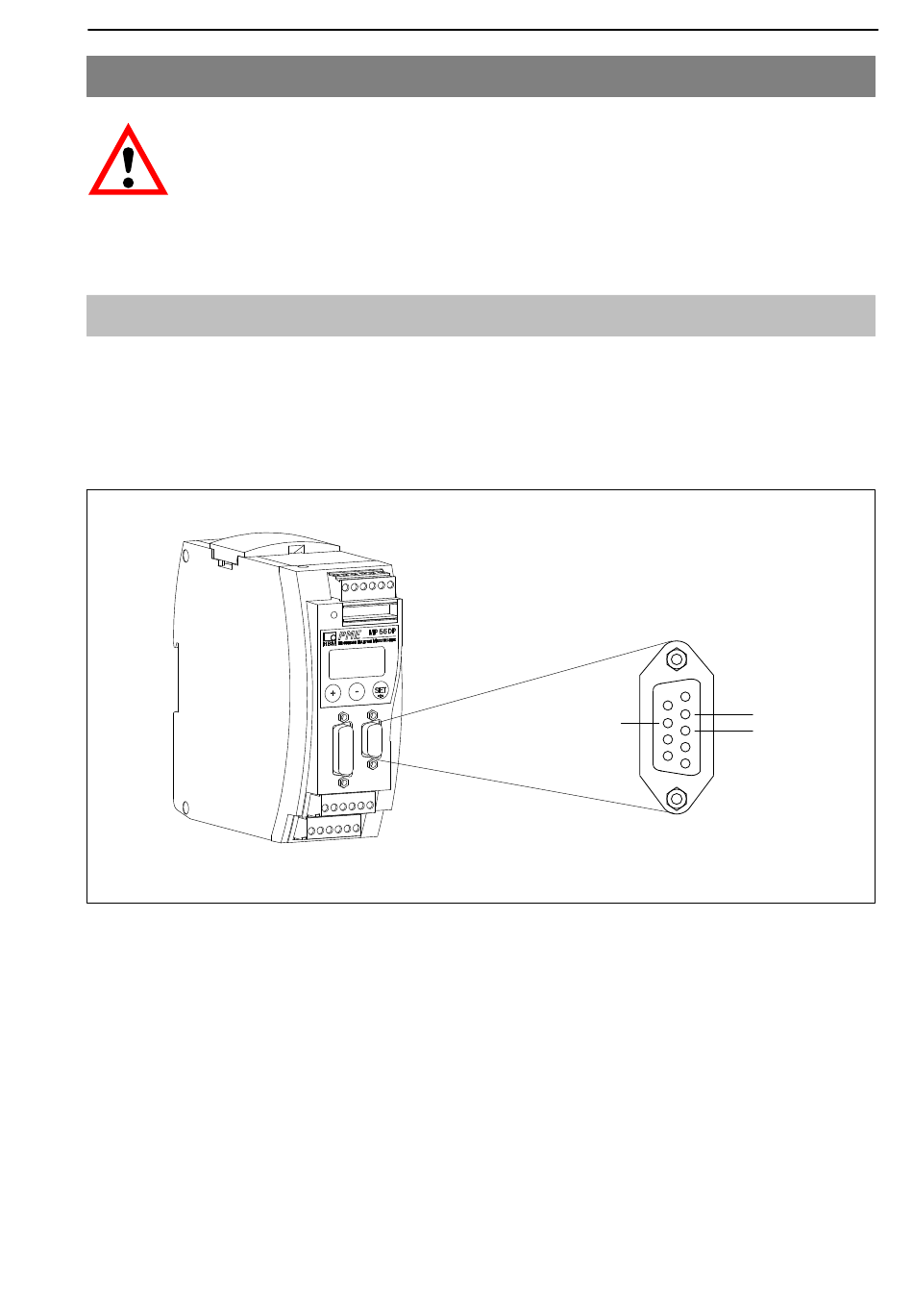

Fig. 4.2: Profibus connection in accordance with standard
A0737-4.0 de/en/fr
9
RS485-A
Vcc (5 V)
6
Profibus
connection
socket
27
GND
5
RS485-RTS
RS485-B
1
