• In order to avoid the accumulation of wax, the fruit feeder must be cleaned frequently
(Fig. 11).
• In the models with a base stand, always clean the hopper and inside of the base
stand, so that there are no peels or pulp remains.
REMEMBER:
• Do not place the front cover and the container
in the dishwasher. It can be cleaned with a soft
cloth and soapy water. Do not use abrasive
products or lime protection products.
• To clean the inside of the tap, fill the container
with clean water and press the tap to eliminate
the remains of juice and pulp inside the tap.
32

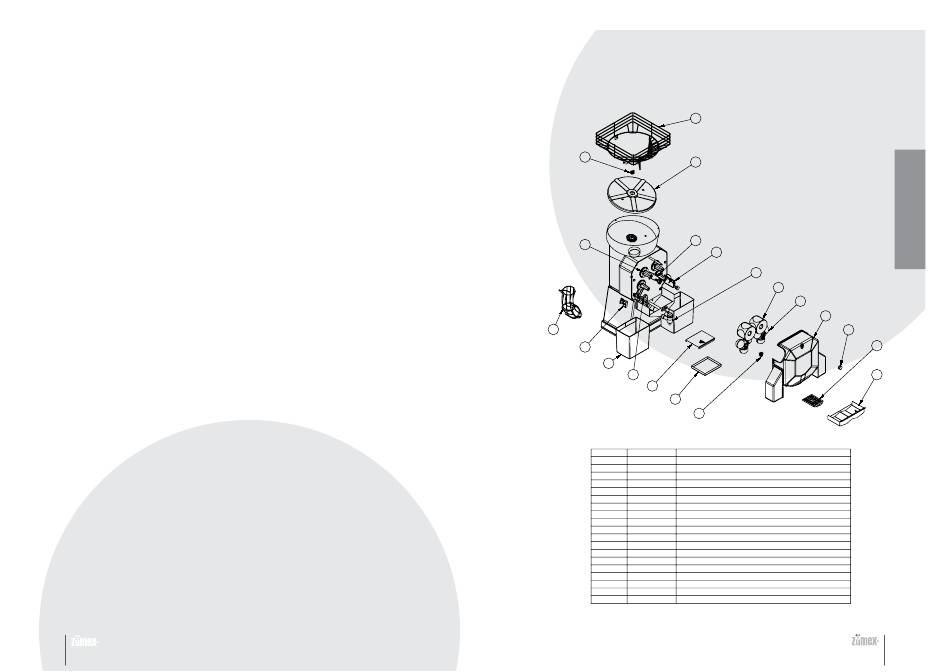

5. DIAGRAMS WITH PARTS AND LIST OF SPARE PARTS

19
17
18
10
8
12
9
11
14
15
16
17
Index Reference
1 260.0208.002
PLASTIC JUICE FILTER
2 260.0209.000 JUICE CONTAINER INTERIOR FILTER
3 33.013.001 FRONT COVER
33.0031.000 LOWER PRESSING UNIT
4
5 33.0024.000 UPPER PRESSING UNIT
6 13.125.001 STEEL FRONT TAP
7 33.0001.000 RIGHT PEEL EJECTOR
8 200.3364.000 FASTENER SUPPORT CAP
9 33.0059.000 BUTTON RUBBER PROTECTION
10 BLADE HOLDER
33.0013.000
11 13.115.002 PEEL BUCKET
12 225.0921.002 FEEDER TUBE D85
13
33.0004.000 RETAINING KNOB KIT
14 33.0002.000
LEFT JUICE EXTRACTOR
15 260.0214.001 DRAIN TRAY FILTER
16 260.0213.001 DRAIN TRAY
17 33.0003.001 SECURING KNOB
18 33.0034.000 FEEDER PLATE
FEEDER BASKET
19 260.0908.003
Zumex Speed Self-Service
7
6
5
4
3
13
2
1
Description
33
