5.2.1

Speed adjustment

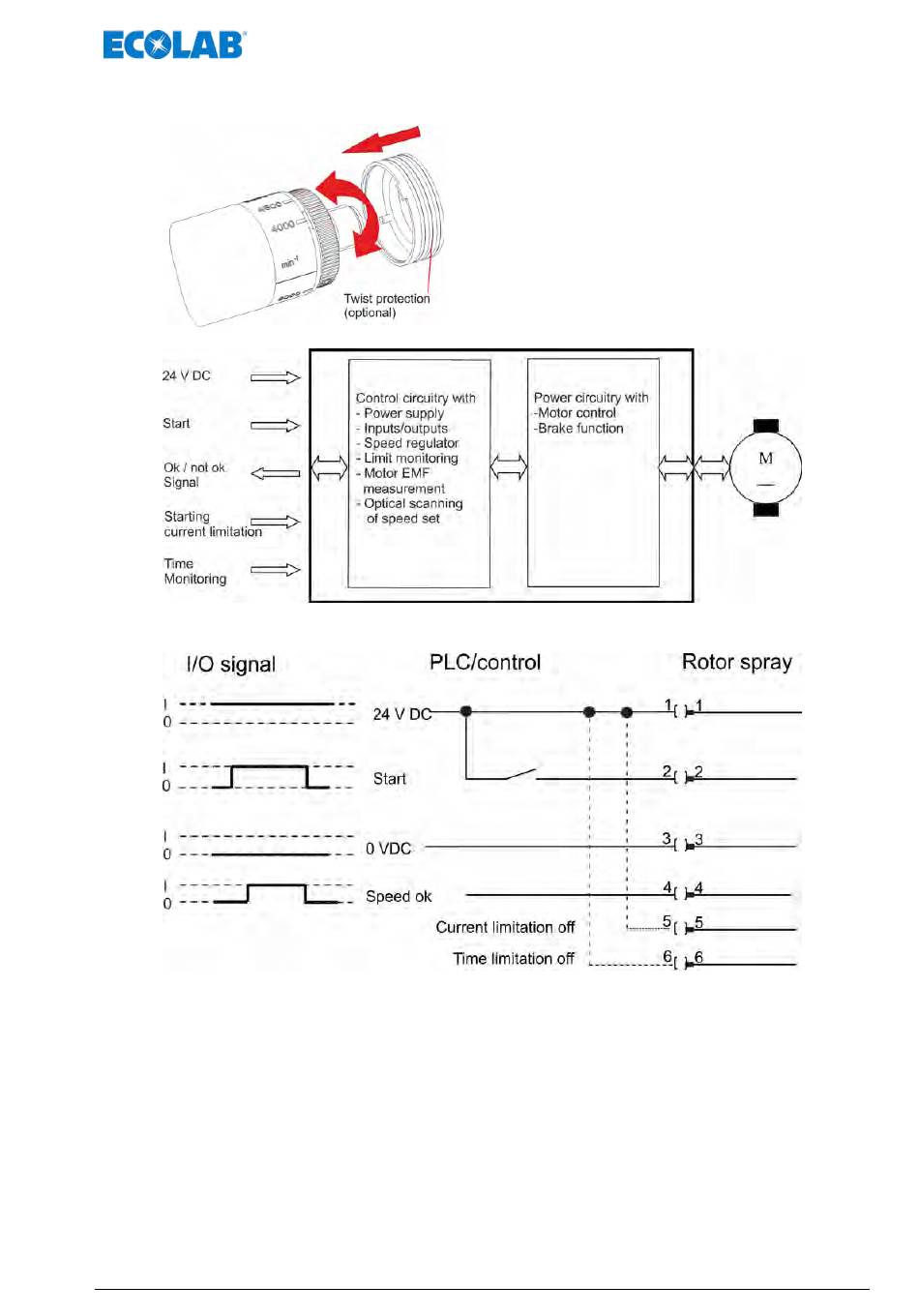

Fig. 4: Block diagram control board
The signal "Speed OK" is active as soon as the nominal speed is reached after the
start-up period. A PLC output is generally used for the start function.
The signal is one-active!
The cap at the connection end can be rotated and has
10 lock-in positions.
Thus the rotor spray speed is pre-selected between 4000 and
9000 rpm in increments of 500 rpm.
Scanning of the speed set point is optical.
A protective cap can be used to prevent unintentional turning.
(see accessories)
21
Construction
417101448 Rev. 04-02.2019
