Insert the stop pin (2) in the bore (3)
N
in the gearbox as far as stop, apply
slight pressure.
Rotate shaft or cutting attachment
N
until the stop pin slips into position
and blocks the shaft.
Mounting the Cutting Attachment
WARNING
Use a deflector that matches the cutting
attachment – see "Mounting the
Deflector".
Removing and Installing Metal Cutting
Attachments
Before removing and installing metal
cutting attachments:
WARNING
Wear protective gloves to reduce the
risk of direct contact with the sharp
cutting edges.
18
Brush knife 305-2 and 300-3
Aligning the cutting attachment
Cutting attachments with 2, 3 or 3 teeth
may point in either direction – these
cutting attachments must be turned over
regularly to help avoid one-sided wear.

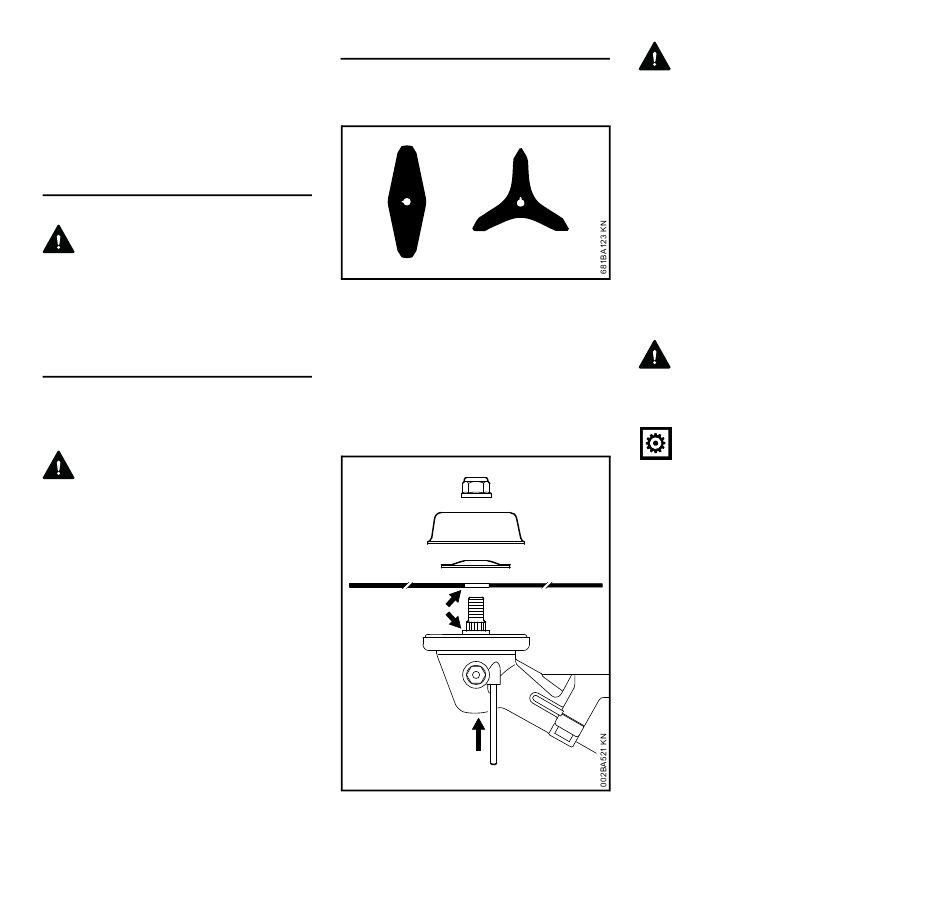

Mounting the cutting attachment
Fit the guard ring for mowing
N
applications.
4
3
2
b
a
Place the cutting attachment (1) in
N
position.
WARNING
Collar (a) must locate in the cutting
attachment's mounting hole (b).
Securing the cutting attachment
Fit the thrust washer (2) – convex
N
side must face up.
Fit the rider plate (3) (for mowing
N
applications).
Block the shaft.
N
Screw the mounting nut (4) on to the
N
shaft counterclockwise and tighten
it down firmly.
WARNING
If the mounting nut has become too
loose, fit a new one.
NOTICE
Remove the tool used to block the shaft.
Removing the cutting attachment
Block the shaft.
N
Unscrew the mounting nut
1
N
clockwise.
Pull the cutting attachment with its
N
mounting hardware off the gearbox.
FS 410 C-M, FS 460 C-M
