1 1 / / USER NOTICES

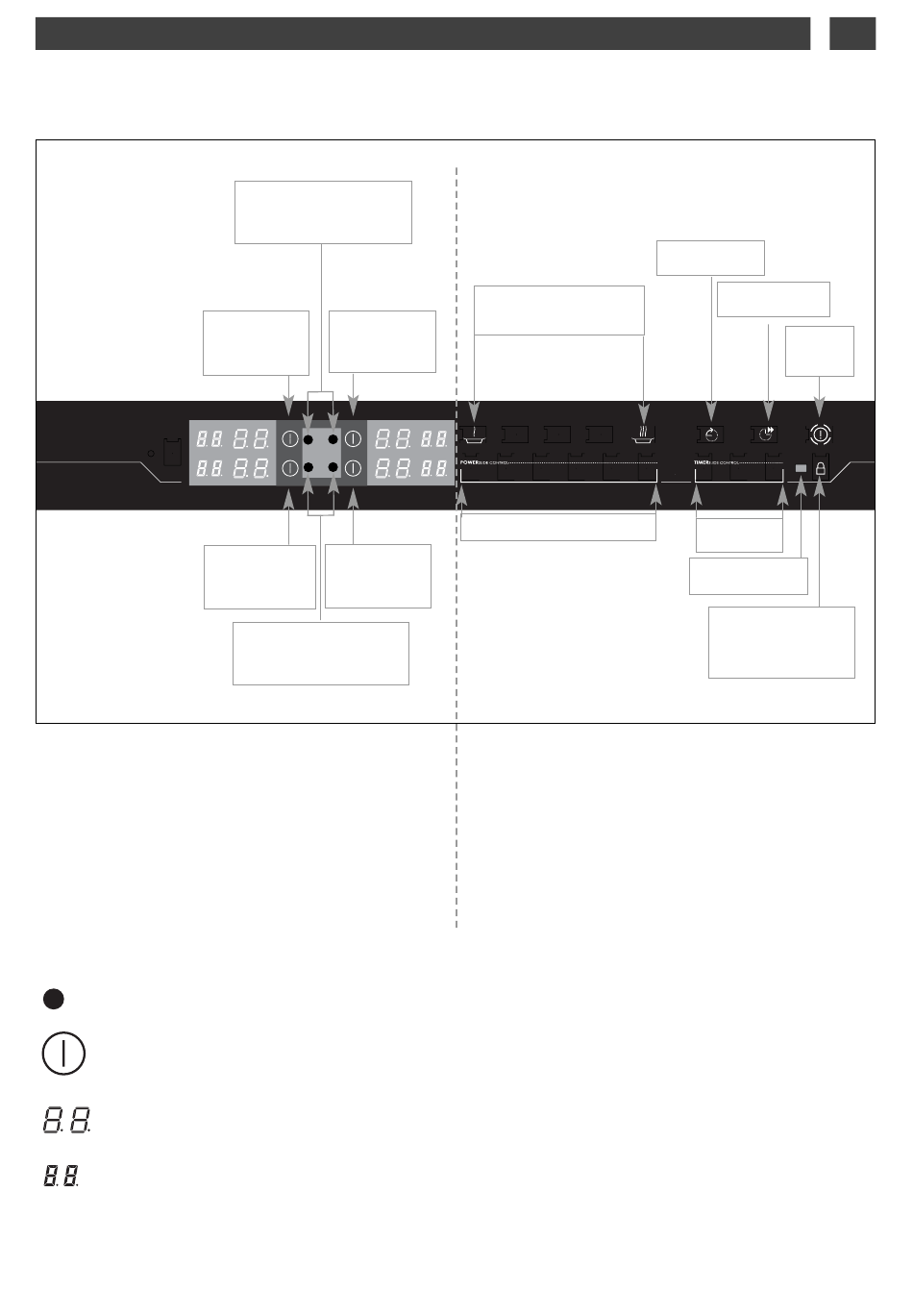

• LAYOUT OF THE CONTROL PANEL

•

SELECTOR TOUCH CONTROLS

These touch controls turn cooking zones on
or off. When a zone is selected, the
corresponding indicator lights up and you
can then change its settings.
•
For a selected zone
Indicator for selected zone
On/off touch control
Power display
Timer display
I
NDICATOR LIGHTS SHOWING
THE ZONE SELECTED
BACK LEFT AND
BACK RIGHT ZONES
R
R
EAR RIGHT
EAR LEFT ZONE
ZONE SELECTION
SELECTION
TOUCH CONTROL
TOUCH CONTROL
F F
RONT LEFT RONT RIGHT
ZONE SELECTION
ZONE SELECTION
TOUCH CONTROL
TOUCH CONTROL
I
NDICATOR LIGHTS SHOWING
THE ZONE SELECTED
FRONT LEFT AND FRONT
RIGHT ZONES
S
ELECTING POWER
PRESETS
P
OWER SLIDER
• ADJUSTMENT TOUCH
CONTROLS
These touch controls allow you to adjust
power, timer, programmer, etc. for each of
the selected zones.
43
"E T
LAPSED IME"
F
UNCTION
"R
ECOMMENDED"
TIMER
O
VERALL
STOP
BUTTON
T
IMER
SLIDER
L
OCK INDICATOR
LIGHT
L
OCK/UNLOCK TOUCH
CONTROL - CLEAN LOCK
