Connecting the
Tubeset
Disconnecting the
Tubeset
System Operation The system is now ready for use. Refer to
Make sure the mains power cord and tubeset are positioned to
avoid causing a hazard.
Make sure the mains power cord and tubeset are clear of moving
bed mechanisms or other possible entrapment areas.

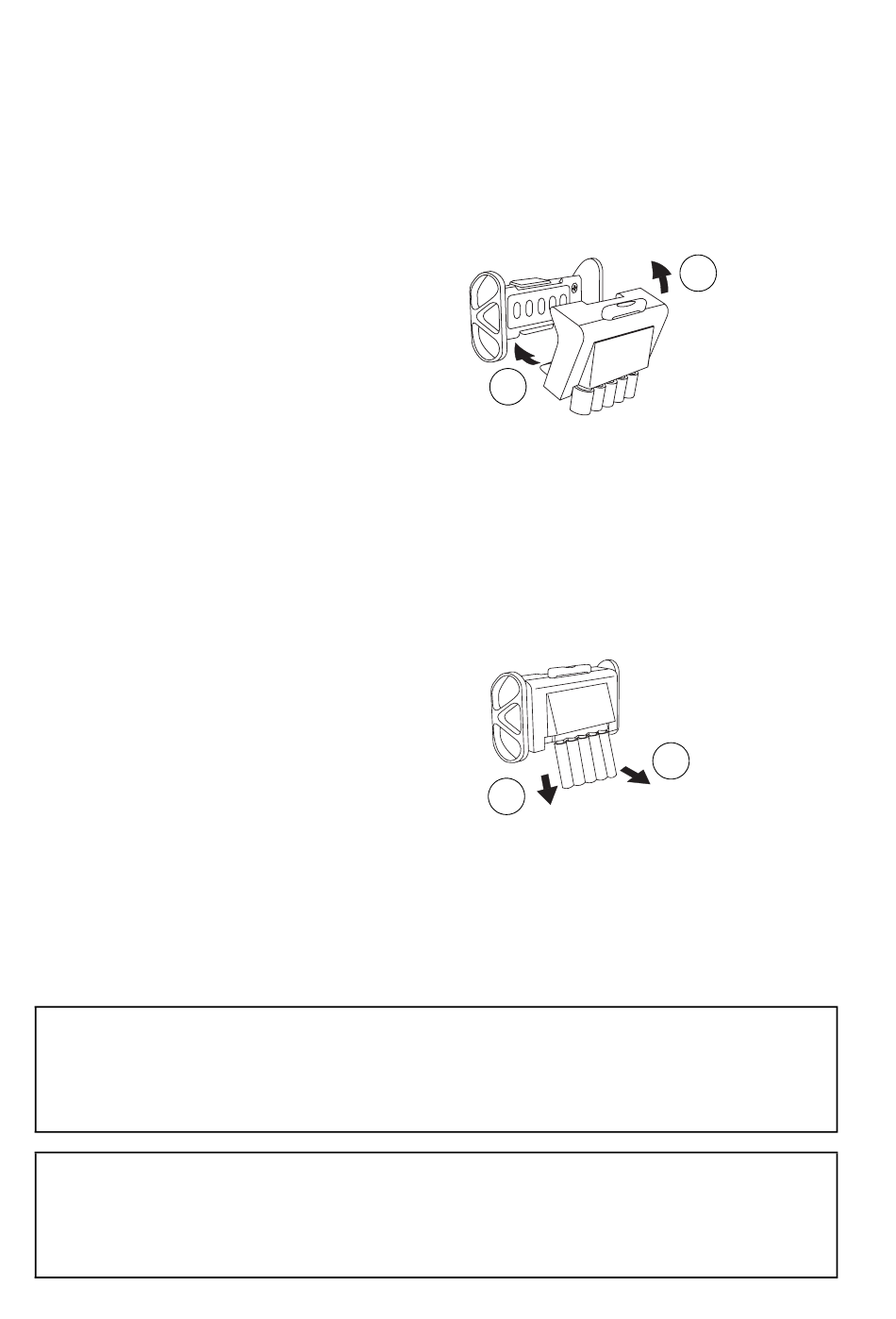

To connect the tubeset to the mattress and pump:
1. Locate the bottom of the tubeset connector onto the
bottom of the pump/mattress connector.
2. Pull the top of the tubeset connector up and over the
top of the pump/mattress connector, until the
tubeset connector "clicks" into position.
3. Make sure both connections are secure.
To disconnect the tubeset from the mattress and pump:
1. Move the tubeset connector down by pulling the
tubeset extrusion downwards, and then pull the
bottom of the tubeset connector away from the
bottom of the pump/mattress connector.
2. Lift the top of the tubeset connector off the top of
the pump/mattress connector.
Section 4, Page 11 "Controls, Alarms and Indicators"
and Section 5, Page 16 "Operation" for day-to-day
operating instructions.
WARNING
Caution
10
1
2
1
2
