Aesculap ®
activO frame system
►

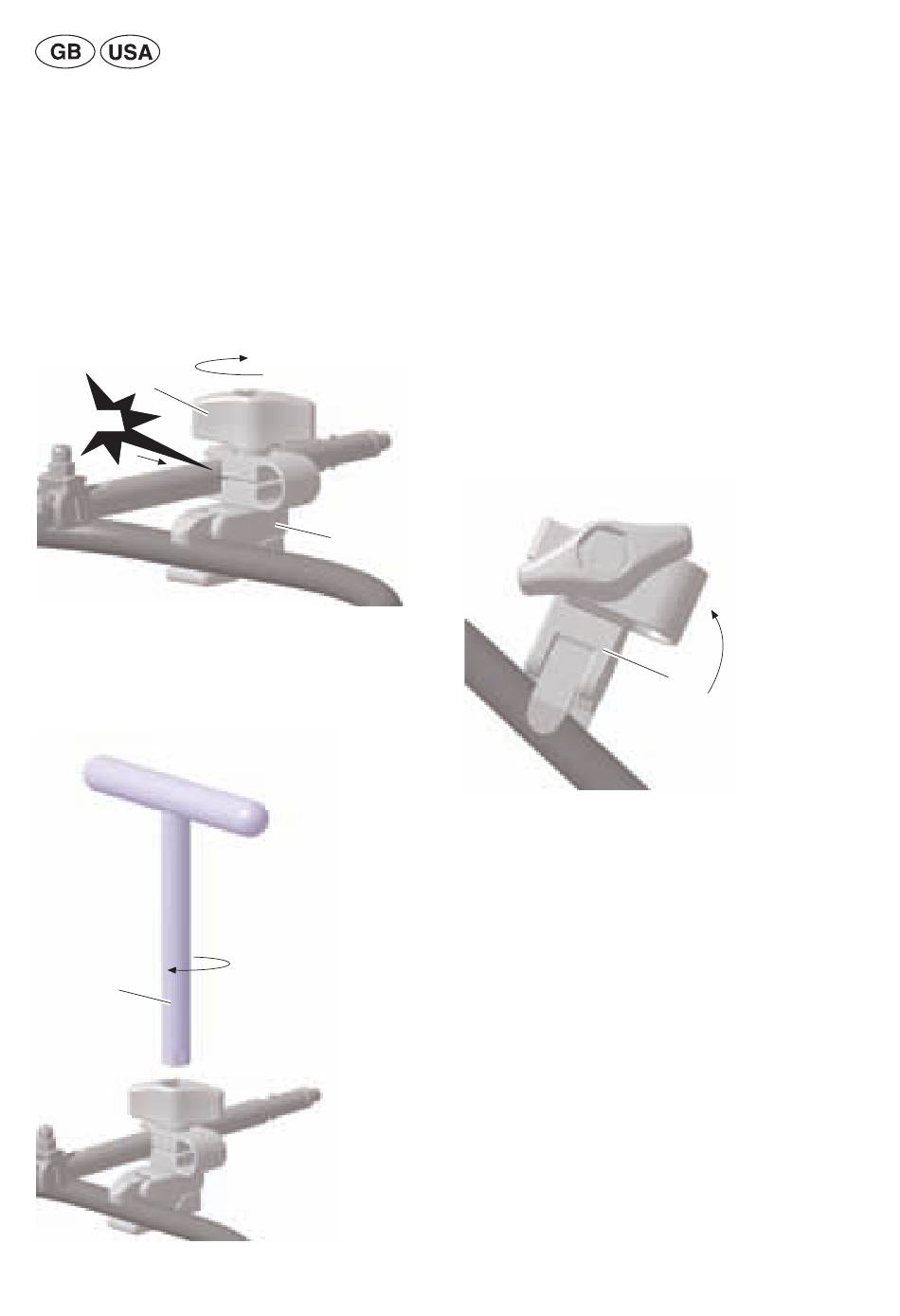

Click the coupling bar B or connecting piece with
the quick-release coupling A into the jaw piece of
the fasting clamp G and place it in the desired
position, see Fig. 7.
1
click
Fig. 7
►
Tighten fastening nut1 until the clamp is fully
closed. If necessary tighten further with T-wrench
H, see Fig. 8.
H
Fig. 8
8
2-3
G
Dismounting the fastening clamp from
the frame
►
Loosen fastening nut 1 by 2–3 counterclockwise
turns, using T-wrench H if necessary.
►
Unclick coupling bar B or connecting piece with
quick-release coupling A from the jaw part of fas-
tening clamp G.
►
Slide off fastening clamp G from the frame by
applying lateral pressure on the clamp, see Fig. 9.
Fig. 9
G
