17. "EXTRA" button.
18. Clear control button for dust extractor.
19. Start/stop button for dust extractor.

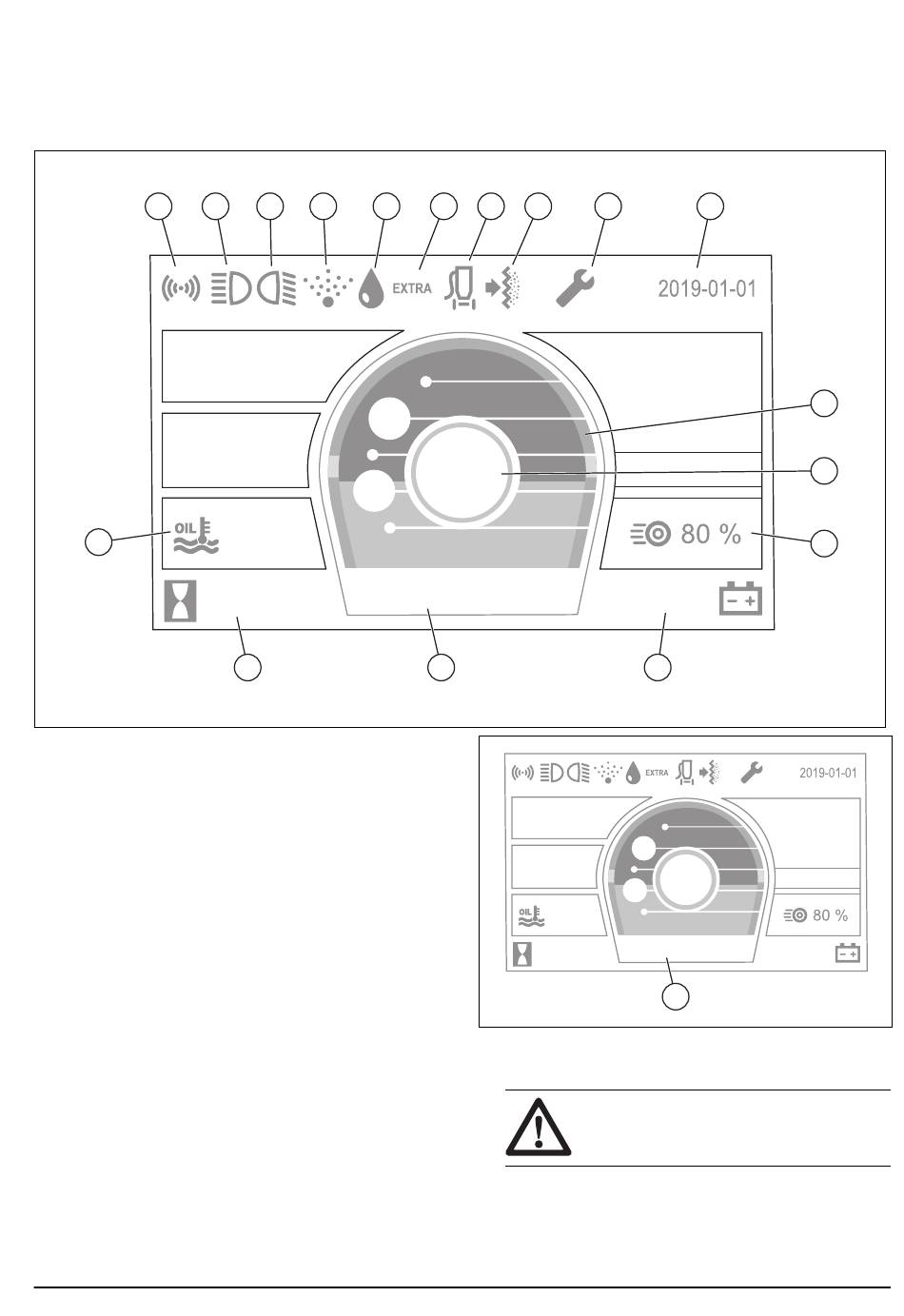

Display overview

1
17
1. Radio communication indicator (not used).
2. Front headlight indicator.
3. Rear headlight indicator.
4. Indicator for Mist Cooler System.
5. Water supply indicator.
6. "EXTRA" indicator.
7. Start/stop indicator for dust extractor.
8. Clean control indicator for dust extractor.
9. Servicing indicator.
10. Time and date.
11. Available power indicator.
12. Gauge for used power.
13. Water flow indicator and operation speed indicator.
14. Voltage indicator.
15. Rotation speed of the grinding discs.
16. Operation gauge. Shows time of operation (h),
distance (m) or energy (kWh).
17. Engine temperature indicator.
Rpm for the grinding discs
The display shows the rpm for the grinding discs (A).
1268 - 001 - 24.10.2019
2 3 4
100%
50%
15.6 h
16
20. Headlight button.
21. USB charger.
22. Connector for the CAN bus cable.
5 6 7 8
56%
840 RPM
15
15.6 h
• Idle speed is 340 rpm.
• The clutch engages at 480 rpm.
• Operate the product between 675-1010 rpm.
9 10
12.9 V
14
100%
56%
50%
840 RPM
A
CAUTION: Do not operate the product
between 420-675 rpm. The clutch can
disengage.
11
12
13
12.9 V
7
