in the same couple;
SPECTRUM: to regulate the spectrum as NORMAL or INVERTED, according to the reception instrument, that could only function with
one of the two modes. Normally "NORMAL";
BITRATE: to know the measures made on the multiplex bitrate in the output programs;
BITRATE USED: shows the bitrates used. This parameter refers to the total measure of all the
programs added to the list of output programs;
BITRATE AVAIL.: fshows the bitrates available. This parameter refers to the total available output
bitrates after including one or more programs;
BR. USED PEAK: a measure in bit/s of the maximum bitrate peak used by the programs in the output mux;
BR. AVAIL. PEAK: a measure in bit/s of the total available bitrate peaks available in the output mux;
RESET BR. PEAK: to reset the peaks to the initial levels, calculated according to the COFDM modulation settings.
After a bitrate overflow, when the peaks have reached their limit, this function has to be used;
OVERFLOW ALARM: bitrate overflow alarm management;
ALARM STATUS: shows if a bitrate overflow has occurred;
CANCEL ALARM: to cancel the overflow alarm. The product is reset on the standard working conditions (the red LED is turned off);
ENABLE: to enable (ON) or deactivate (OFF) the overflow alarm signal function. If the function is set on OFF, the option is disabled;
-
PROGRAM MENUS: To select the programs that will be broadcast in the previously created MUX and monitor the transmission band.
Wrong PIN
-
MUX 1, MUX 2 , MUX 3, MUX 4: to select the MUX to be used;
ALL PIDS: allows you to disable or enable the voice to one of the inputs or CAM;
ORDER LIST: to set the order criteria for the program list;
INPUT: ordered by classification to the input number;
LCN: sorting is carried out for LCN ie depending on the number associated with the program without
distinction of origin from the entrance;
PRIORITY: ordered by priority, i.e. according to the priority assigned to the program;
PROGRAM LIST: to set the list of output programs;
ADD: to add the selected program to the list of output programs. When it has been added the program
is marked with an (A) in front of its name in the channel list;
REMOVE: to remove the selected list from the list of output programs;
POSITION: to set the priority and, therefore, the program position in the list of output programs;
LCN: to set the program LCN. The available values are between 0 and 999.

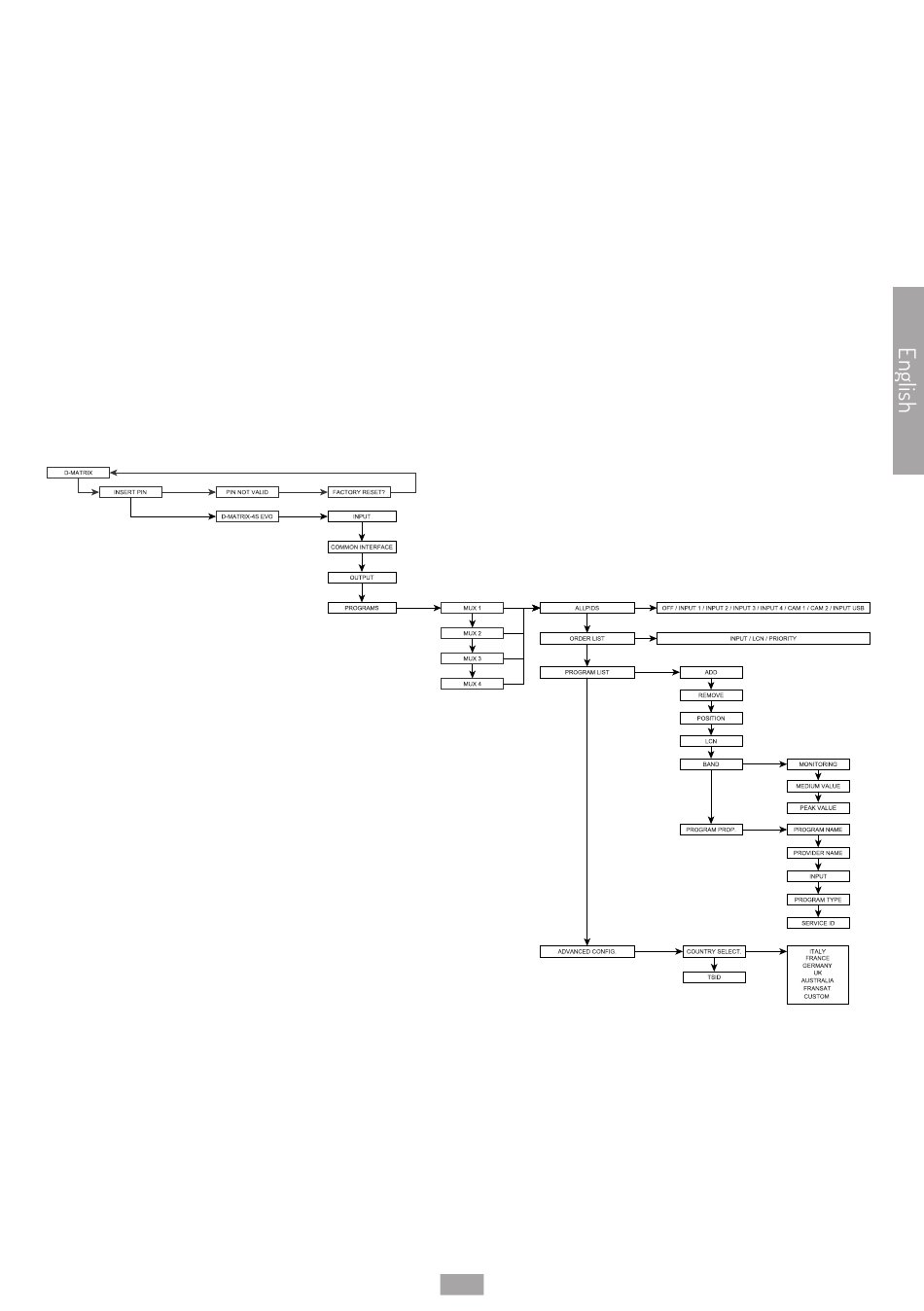

FLOW CHART PROGRAM
after 3 incorrect entries
