Scrigno OPEN 2.0 Antamatic Manuel D'utilisation page 61

EN

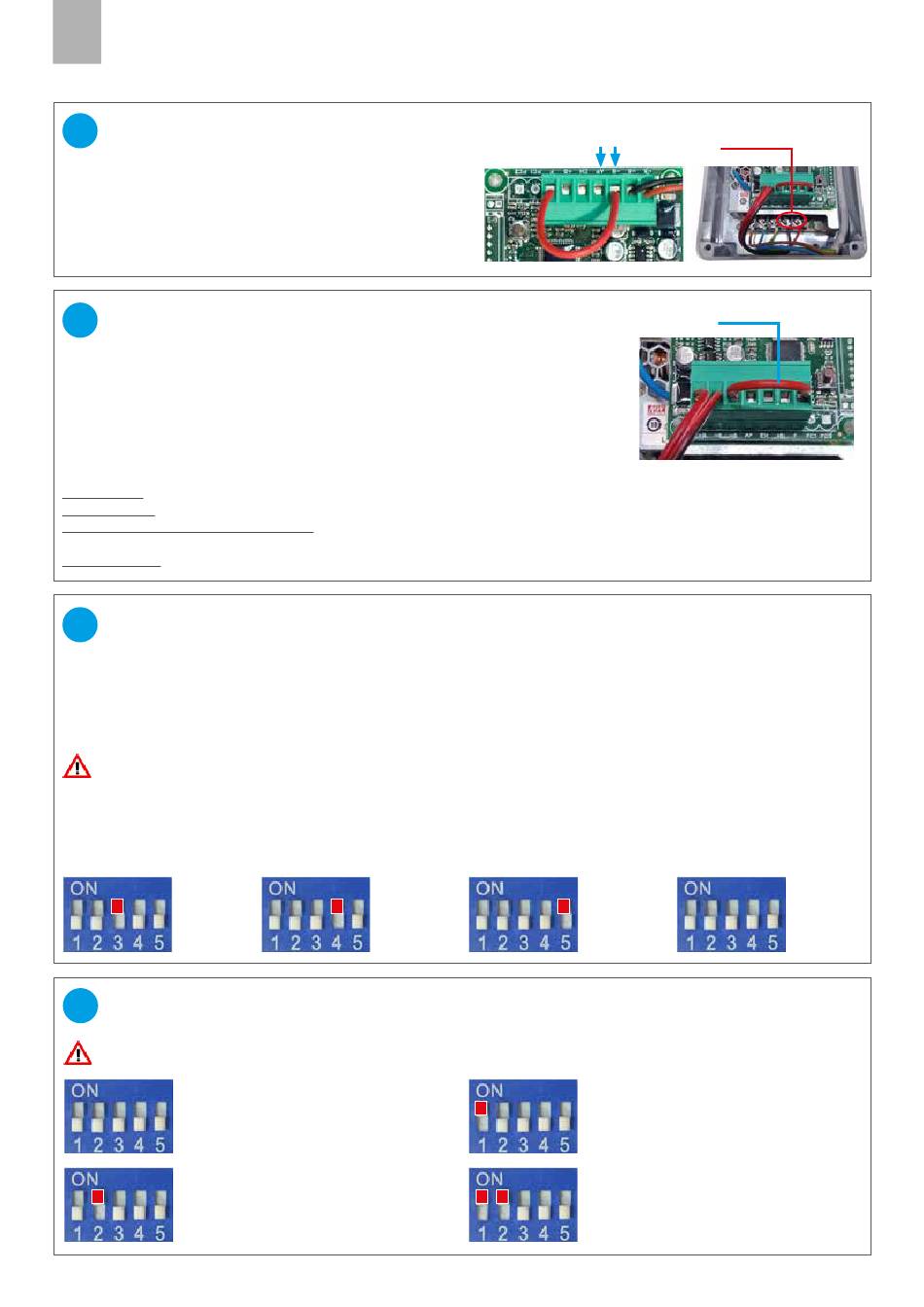

CONNECTION
29
Connect one or more radars or presence detectors (N.O.)
to the -B and AP inputs of the turret-connector.
The 24V output of the power supply unit can be used
if the characteristics of the radar are compatible.
Caution: prepare a switch to cut off power to the radar,
and thus permit resetting any errors.
DOOR LOCK
30
PHOTOCELL
and
Remove the jumper from the connector-turret between -B and F.
Connect an ON-OFF switch (N.C.) to the photocell input, between -B and F.
This will disable door movement and timed re-closure.
SAFETY PHOTOCELL OPERATING LOGIC
(jumper on connector J3) connect the photocell (N.C.) to the inputs -B and F.
Door closed: if I give an opening command, the door opens even with the photocell engaged.
Door opening: even if I engage the photocell, the door continues to open.
Door open (with automatic reclosing): I engage the photocell, the door remains stationary in opening, until I
disengage the photocell.
Door reclosing, I engage the photocell, the door reverses direction of movement and opens again.
ADJUSTMENT OF THE
31
The electronic board which controls the movement of the motor must be correctly calibrated to allow safe operation of
the system. The software manages in particular the acceleration and braking ramps, and the distance at which the door
must start to slow down, in order to approach the uprights gently.
4 parameter PRESETS are available, referring to different weights of the operated door.
IMPORTANT! If the door stops and reverses its movement during opening or closing, try the next preset
Turn off the board, adjust the dip-switches and wait 5 seconds.
Turn the board on again.
DIP SWITCH 3= ON
Preset 1:
Doors weighting
approx. 20 kg
AUTOMATIC RECLOSING
32
Turn off the board, adjust the dip-switches and wait 5 seconds.
Turn the board on again.
DIP SWITCH 1 and 2= OFF:
Automatic reclosing disabled (see
also point 30, door lock switch)
DIP SWITCH 1=OFF, 2=ON:
The door closes automatically a
fter 5 seconds of inactivity
RADAR
(optional)
SWITCH
INPUT (N.C.)
DOOR-WEIGHT PRESET
DIP SWITCH 4= ON
Preset 2:
Doors weighting
approx. 40 kg
radar connection
DIP SWITCH 5= ON
Preset 3:
Doors weighting
approx. 60 kg
ADJUSTMENT
DIP SWITCH 1=ON, 2=OFF
The door closes automatically
after 2 seconds of inactivity
DIP SWITCH 1=ON, 2=ON:
The door closes automatically
after 10 seconds of inactivity
Open
exit 24V
Jumper
DIP SWITCH 3-4-5= OFF
Preset 4:
Doors weighting
up to 80 kg
R1387 DCM2461/SCRIGNO - OPEN2.0
2.0
| pagina 61
