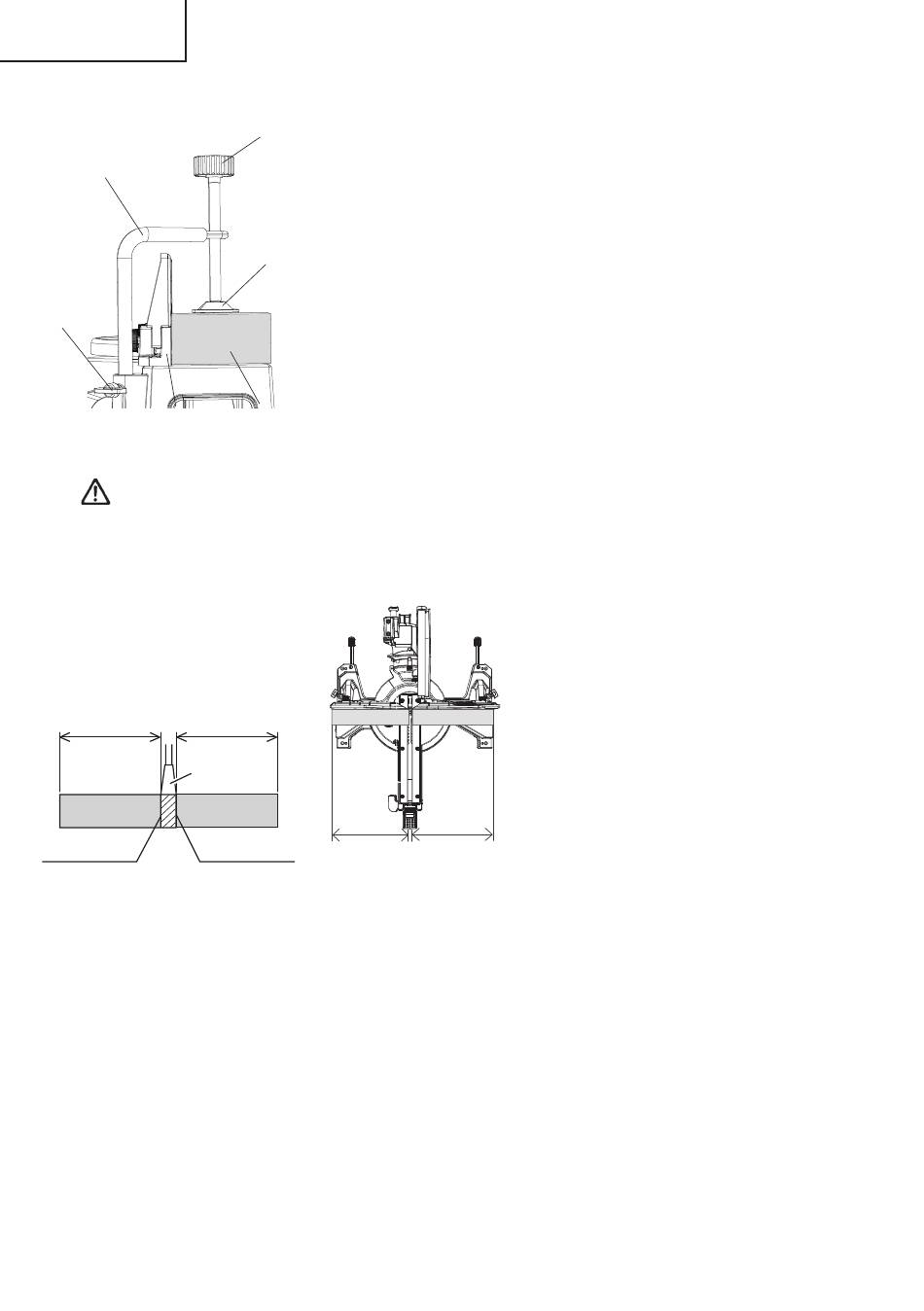

2. Using the Vise Assembly (Standard accessory)
Vise shaft
Vise lock
knob
Fence
Fig. 25
WARNING:
3. Cutting Operation
ⓐ
Saw blade
ⓑ
ⓐ
Marking
Marking
(pre-marked) (pre-marked)
(Front view)
(3) Once the saw blade contacts the workpiece, push the handle down gradually to cut
into the workpiece.
(4) After cutting the workpiece to the desired depth, turn the power tool OFF and let the
saw blade stop completely before raising the handle from the workpiece to return it to
the full retract position.
28
Knob
Vise plate
Workpiece
Always fi rmly clamp or vise to secure the workpiece to the fence;
otherwise the workpiece might be thrust from the table and cause
bodily harm.
ⓑ
ⓐ
Adjusting line
Fig. 26
(1) The vise assembly can be mounted on the base.
(2) Turn the upper knob and securely fi x the
workpiece in position (Fig. 25).
(1) As shown in Fig. 26 the width of
the saw blade is the width of the
cut. Therefore, slide the workpiece
to the right (viewed from the
operator's position) when length ⓑ
is desired, or to the left when length
ⓐ is desired.
If a laser marker is used, align the
laser line with the left side of the
ⓑ
saw blade, and then align the ink
line with the laser line.
(2) Once the saw blade reaches
maximum speed, push the handle
down carefully until the saw blade
approaches the workpiece.
