B User interface description
B.1 User interface: windows

B.1.4 Alarm Configuration

B.1.4 Alarm Configuration
Alarm Configuration window
description
Alarm Configuration window is accessed from the header toolbar. This window displays
each available process variable and allows the user to configure alarm setpoints.

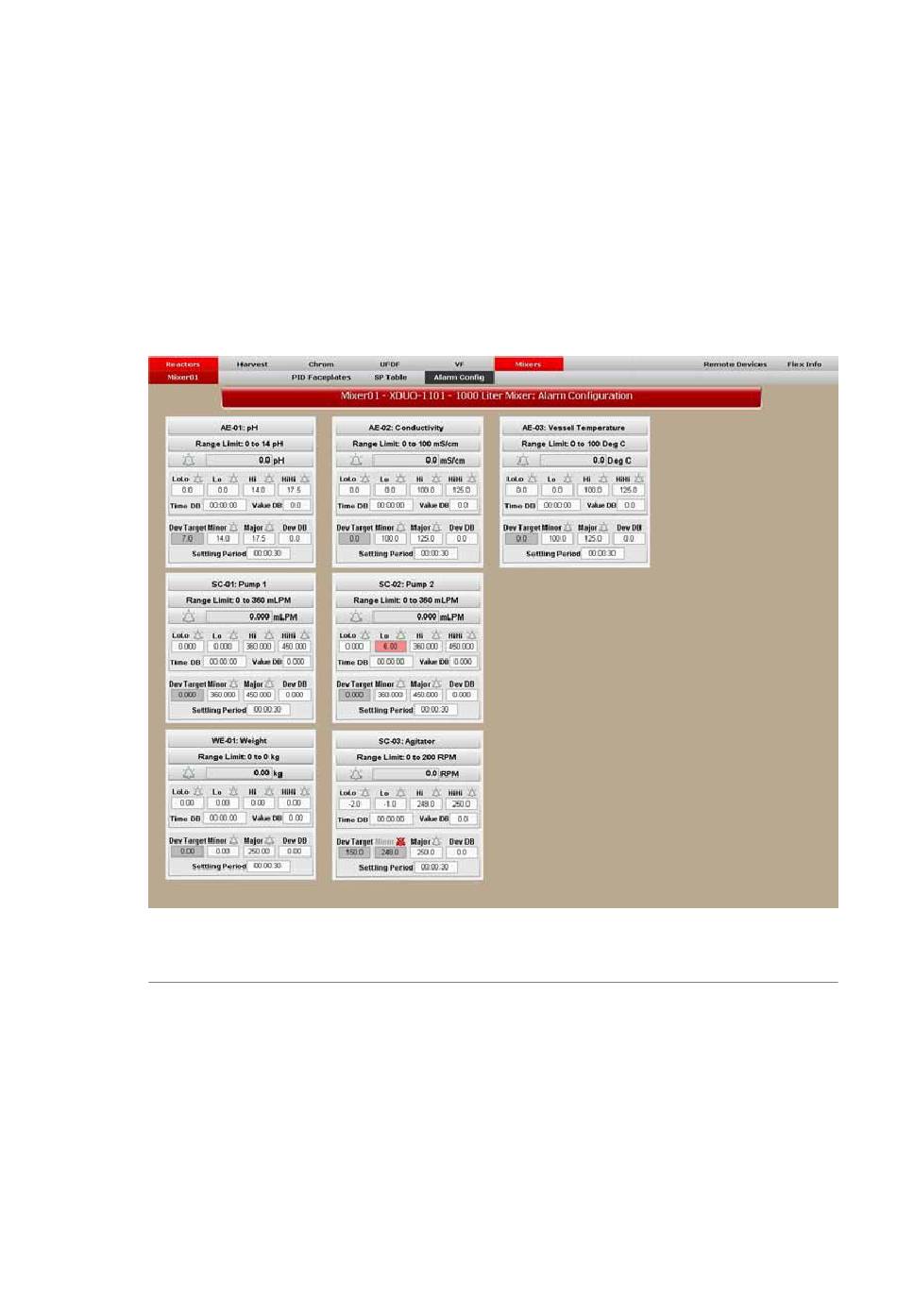

The following illustration shows an example of Alarm Configuration window.
A red text field indicates that this parameter is currently in alarmed state.
358 Xcellerex XDUO Quad Single-Use Mixeur Mode d'emploi 29-0885-07 AA
