2.3 Installation in rack configuration

We recommend to mount the battery module first, then mount the power module above
the battery module

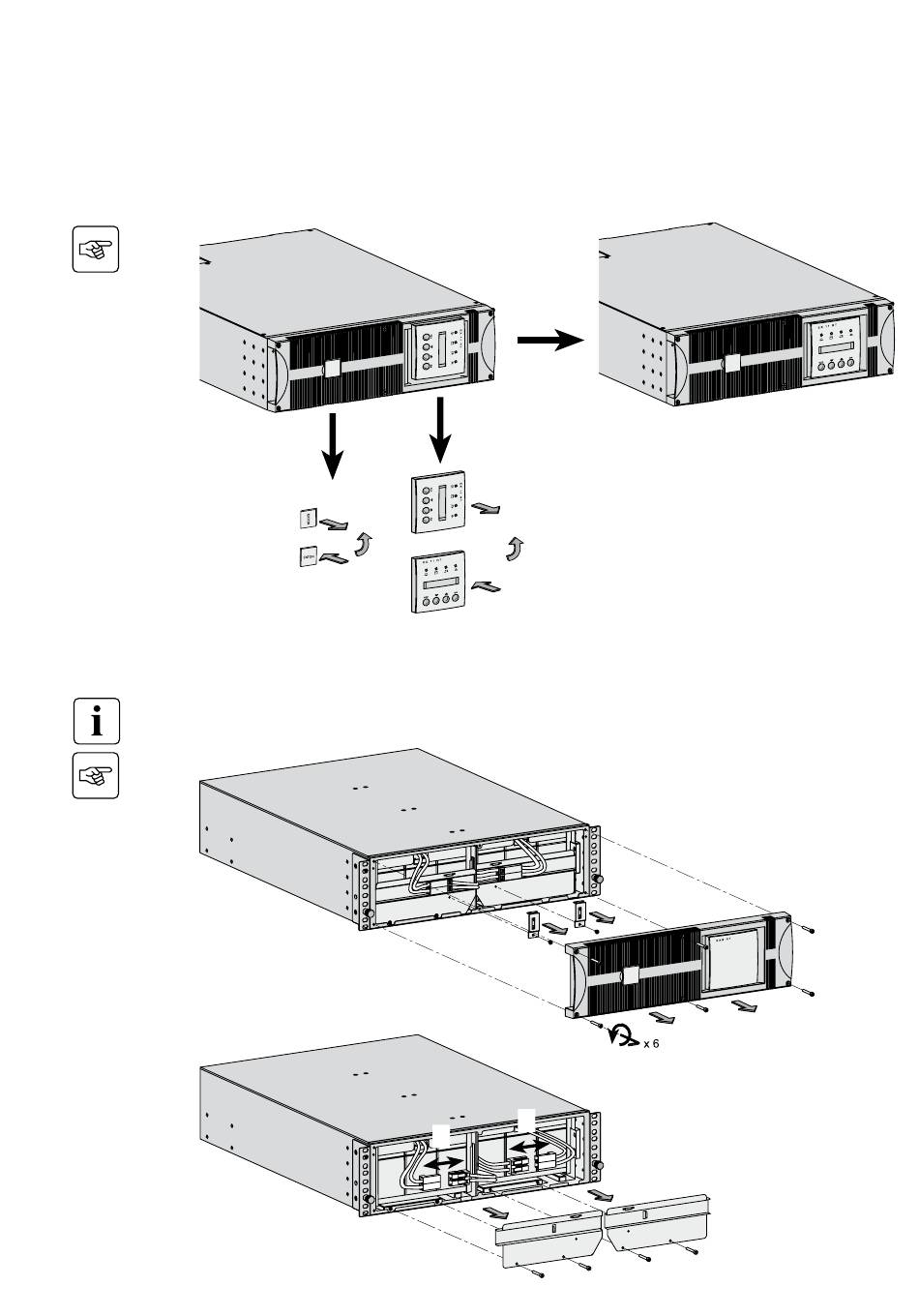

Adjustment of the orientation of the logo and control panels

Battery module rack mounting (optional rails required, part number: 68002)
The battery module is very heavy. To ease its rack integration, we strongly recommend to remove the
battery trays as explained below:
4
1
2
3
6
3
5
2
2
1
3
4
4
2. Installation
1
1
34007558EN/AE - Page 13
