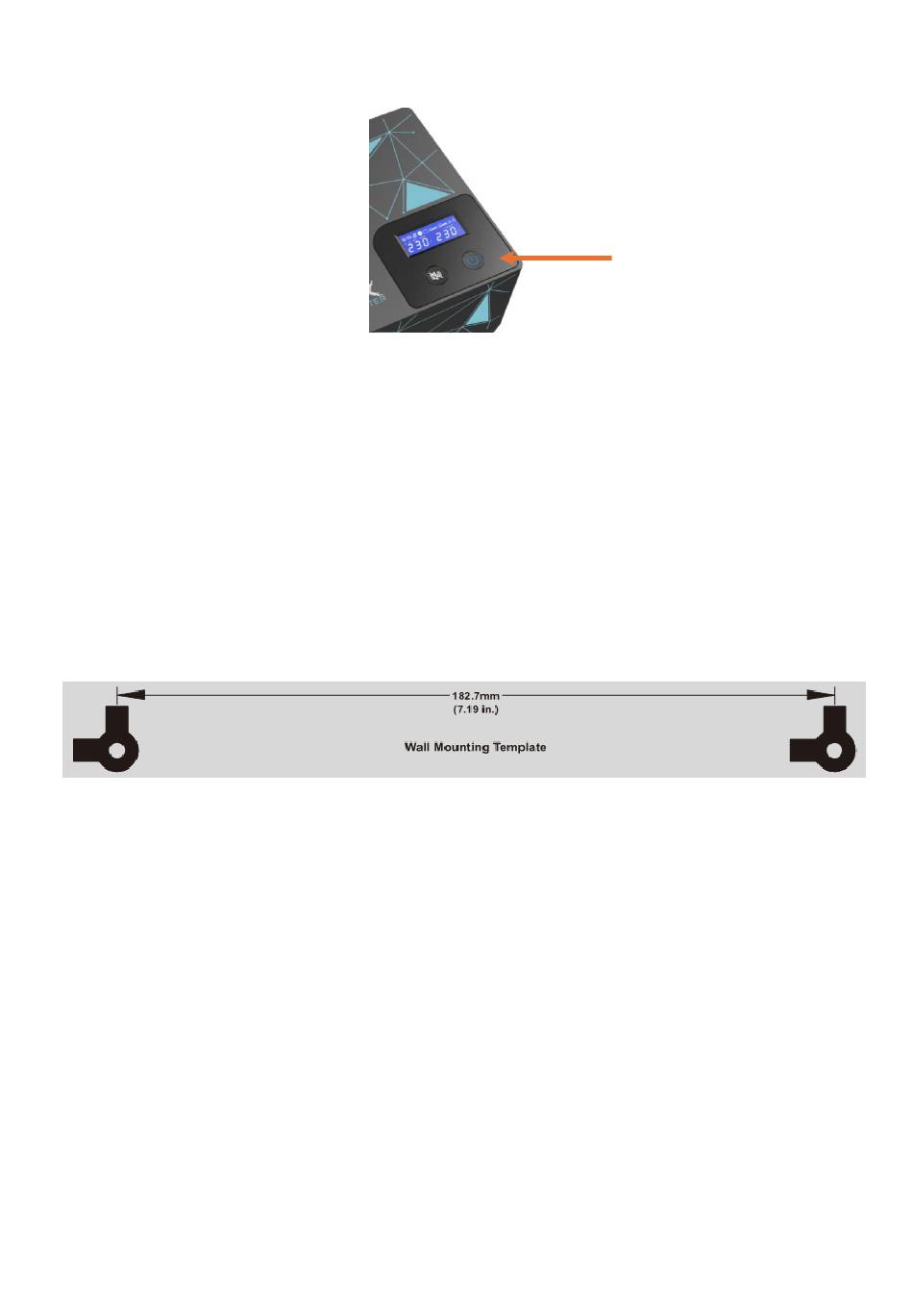

Switching the UPS on and off
Press the button on the right below the screen for 2 seconds to turn the UPS on or off.
UPS Wall mount
The UPS can be mounted vertically or horizontally to a wall surface. Use the drawing below to position
the mounting fasteners. Wall mount the UPS as follows:
1.
Use a ruler and a level to define the location of the anchors according to the diagram below.
2.
Install the mounting fasteners at the marked locations. Leave the head of both fasteners 8 mm
(5/16) out from the face of the wall. The fasteners must be able to support 6.8 Kg.
3.
Mount the UPS by positioning the key-hole slots over the mounting fasteners heads. For vertical
mounting, slide the UPS down into place. For horizontal mounting, turn it slightly
counterclockwise until it is securely in place.
Please note that the drawing below is not to scale.
