Installation
1
Safety and Installation Awareness
1.1
A quick installation guide and a safety guide are provided with the drive. Before starting installation, read all safety guidelines and
precautions in the safety guide (136R0243). For details on cybersecurity, see Security Features in the application guide (136R0283). The
design guide and application guide can be downloaded at https://www.danfoss.com/service-and-support.
Required Tools
1.2
Lifting aid
l
Measuring tape
l
Wrench with extensions and 8, 17, 19 mm sockets
l
Torx and slotted screwdrivers (T25, SL1, and SL2)
l
Wire crimper
l
Sheet metal punch and/or pliers for cable entry plate
l
Verifying the Shipment and Its Contents
1.3
Make sure that the items supplied and the information on the product label correspond to the order confirmation. The product label is
placed on the lower right corner of the exterior door and also on the interior of the drive.
1
2
3
4

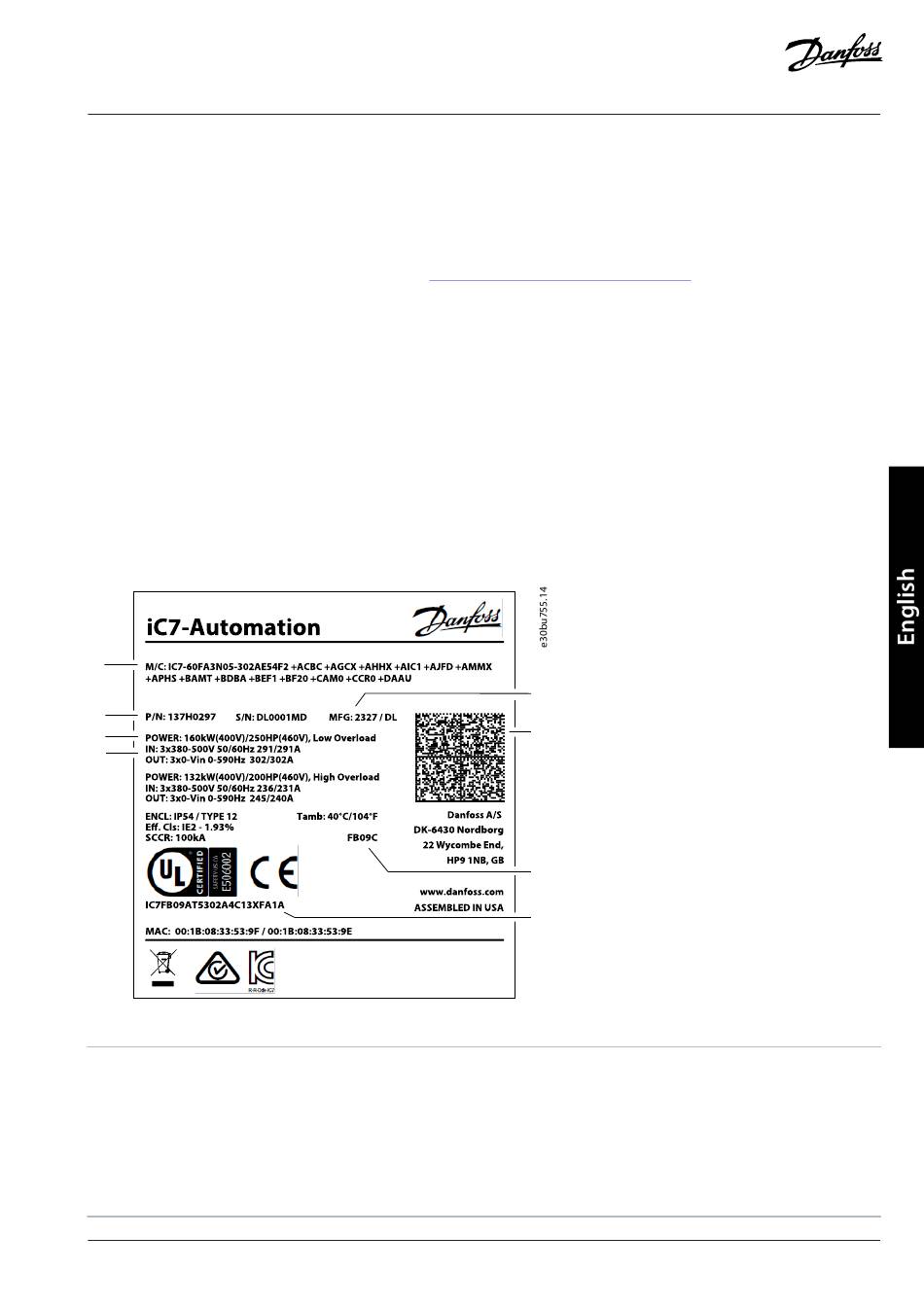

Figure 1: Example of a Product Label
1 Model code (2D code shows the full model code)
3
Power rating
5 Manufacture date (YYWW)
7 Frame designation
Danfoss A/S © 2025.05
5
6
7
8
2 Code number (P/N) and serial number (S/N)
4
Input and output voltage, frequency, and current
6 2D code – accessible by using a Datamatrix ECC 200
compatible barcode reader – containing the model code,
code number, serial number, and manufacture date
8 Compliance code
