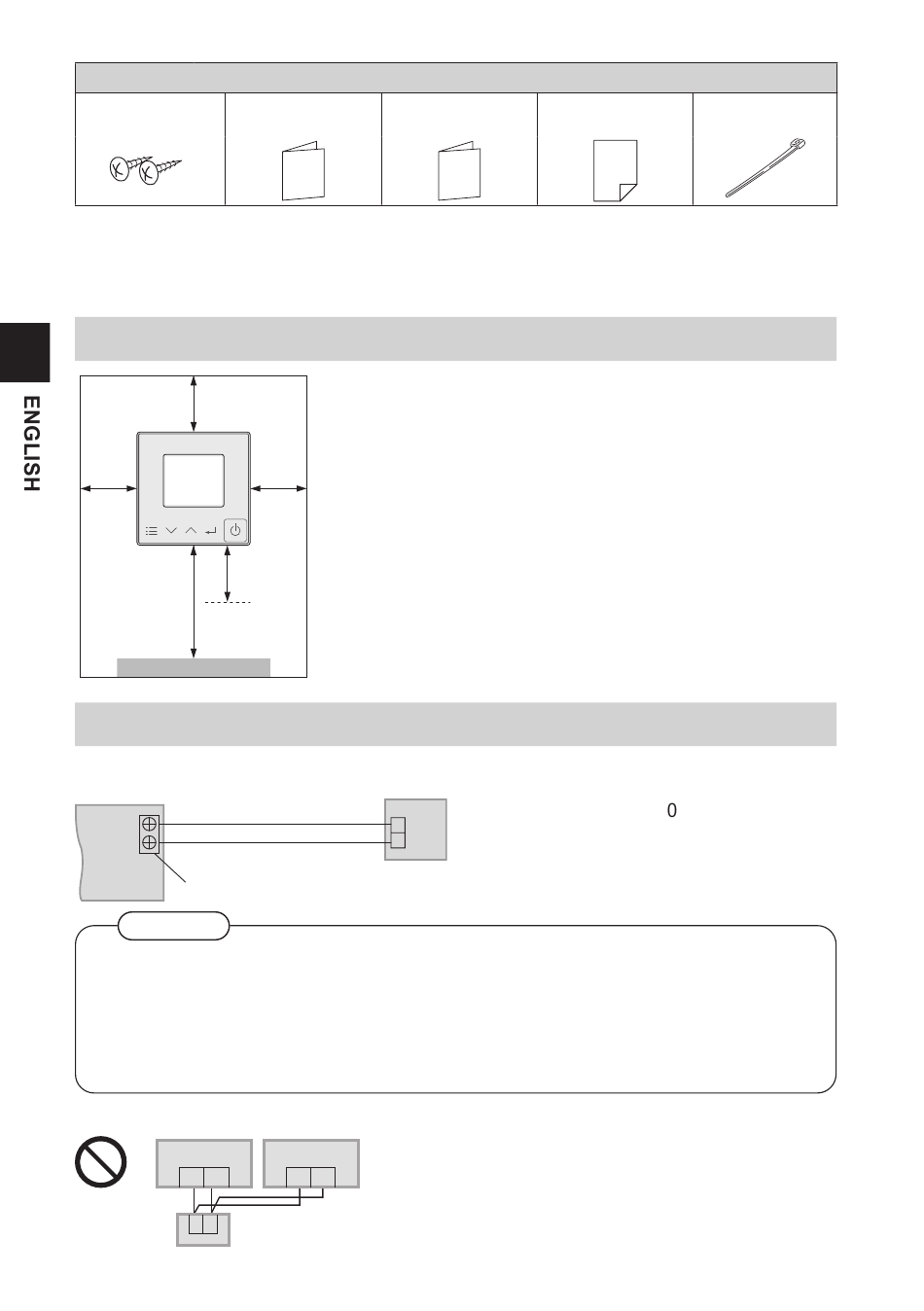

Installation Precautions - Panasonic Cz-Rtc6Blw2 Instructions D'installation

Screw
(2)
M3.8 x 16
*Remote control wiring is not supplied. (fi eld supplied item)

Installation Precautions

Installation location
50 mm
50 mm
1 to
1.5 m
Floor
Remote control wiring
Wiring diagram
Indoor unit
R1
R2
RC wiring (fi eld supply)
• No polarity
Terminals for RC wiring
Attention
 Use the fi eld supplied RC wiring with at least 1 mm in thickness of insulation part including the sheath.
Wiring Regulations may diff er depending on location. For fi eld wiring rules, please refer to your LOCAL
ELECTRICAL CODES.
You must ensure that installation complies with relevant rules and regulations.
 Be careful not to connect cables to other terminals of indoor units (e.g. power source wiring terminal).
Malfunction may occur.
 Do not bundle together with the power source wiring or store in the same metal tube. Operation error may occur.
 If noise is induced to the unit power supply, attach a noise fi lter.
Wiring as shown below is prohibited.
Indoor unit
R1 R2
1 2
6
Supplied accessories
Operating Installation
(1)
Instructions Instructions
 Install at the height of 1 to 1.5 m from the fl oor (Location where
average room temperature can be detected).
 Keep a space around the remote controller as detailed on the fi gure
shown left.
 Avoid the following locations for installation.
50 mm
• In the shadow or backside of objects deviated from the room airfl ow
• Location where condensation occurs (The remote controller is not
moisture proof or drip proof)
• Location near heat source
 Keep distance of 1 m or more from the TV, radio and PC. (Image blur
50 mm
or related noise may occur)
 Do not use in special environments.
Use in places with much oil (including machine oil), steam, fl ammable
or corrosive gas, voltage fl uctuation, surrounding the metal body,
may lead to severe decrease in functionality and damage to parts.
RC
1
2
Indoor unit
R1 R2
RC wiring
RC
(1) Instruction
 Type of wiring
 Use cables of 0.75 to 1.25 mm
 Total wire length
 Number of connectable units
 Remote controller : 1 unit connection only
 Indoor unit
(1) Clamper (1)
.
2
: 1 0 m or less
: Max. 8
