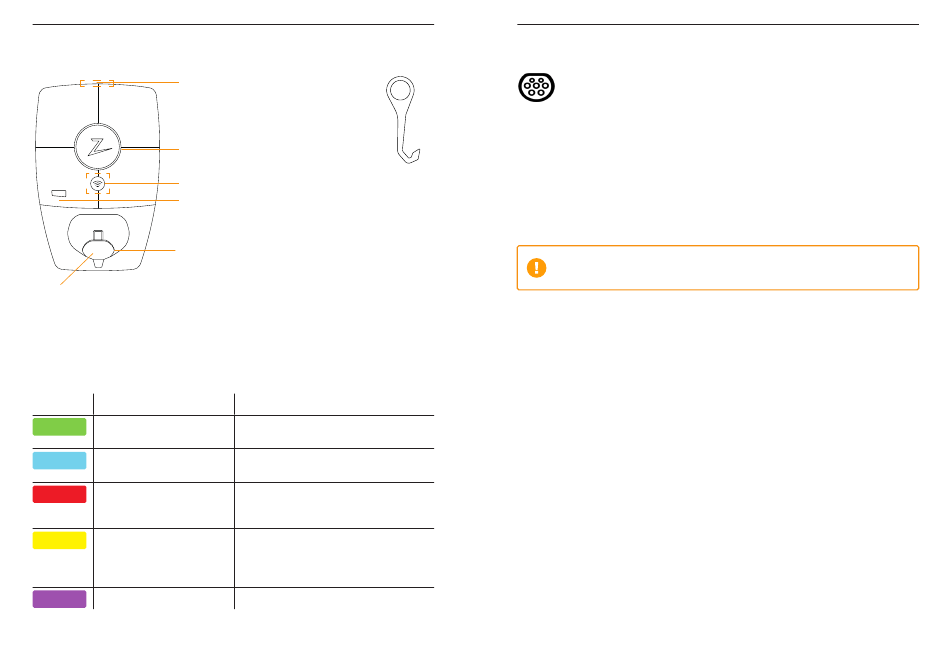

Zaptec Pro

Open the front cover here
Status indicator (Z)
RFID zone
MID model only: display showing
total energy (kWh)
Electrical outlet
EN 62196-1/2, Mode 3 Type 2
Self-closing protective cover
Status Indicators on the Charging Station
The status of the charging station is shown by the status indicator (Z)
using the following colours:
Colour Continuous
Ready to charge
GREEN
Charging complete
Connected to a vehicle and
BLUE
ready to charge
Error (see the
RED
Troubleshooting section for
further details)
YELLOW
PURPLE
8
SmartKey
Flashing
Authentication OK
Charging
Authentication failed (see the
Troubleshooting section for further
details)
System starting up
Awaiting authentication
Awaiting Zaptec Portal
Vehicle added to queue
Firmware updating
Cable
Zaptec Pro needs a Type 2 charging point
in order for you to be able to charge
How to Start Charging
1. Check that the status indicator (Z) is illuminated green.
2. Remove the protective cover to gain access to the electrical outlet.
3. Attach the charging connector to the Zaptec Pro.
4. Attach the charging connector to your vehicle.
5. The status indicator will flash blue once charging has started.
Charging current may vary depending on the capacity of the installation and
the number of active charging stations.
How to Start Charging with Authentication
Charging with authentication requires you to have registered a user profile via Zaptec
Portal and for your user profile to have had access granted to them (via Zaptec Portal)
to the charging station/facility. The charging pass is linked to your user.
For details on how to set this up, see the section Connecting a Charging Pass
to Your User.
The recommended authentication method is to use a charging pass.
Start charging with an authentication RFID tag/charging card:
1. Follow steps 1–4 in How to Start Charging.
5. The status indicator (Z) will now flash yellow to indicate that it is awaiting
authentication.
6. Hold the charging pass up to the RFID zone; see the illustration in the section
Zaptec Pro.
7. The status indicator will flash green once authentication is approved.
8. The status indicator will flash blue once charging has started.
If the status indicator is flashing red, see the Troubleshooting section for further details.
