User manual
To do this, perform a no-load test (with no sheet metal between the electrodes). Once calibration has been successfully completed, the machine
displays «ready to weld». If the calibration fails, check that the caps are in good condition and that the arm is securely locked, and repeat the
calibration procedure.
When the machine is ready, close the clamp onto the area you want to weld, and the weld will start.
The machine will display a fault if it measures a sheet assembly of greater than 7.5mm, or if it measures no material at all.

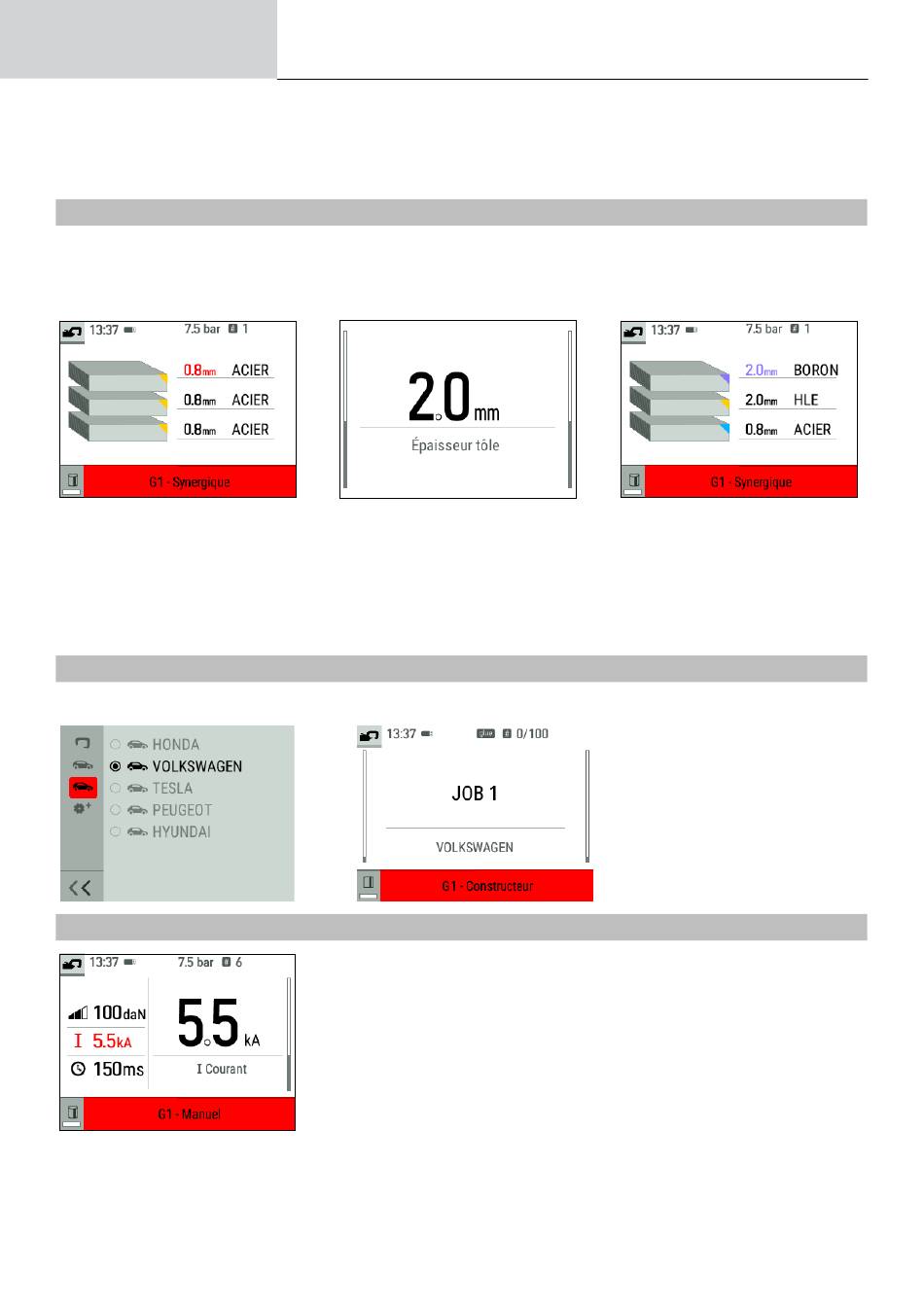

4.3.2 Synergic Mode
This mode determines the welding parameters based on the thickness of the sheets and the type of steel.
The thickness of each sheet can be set between 0.5mm and 3mm. The types of steel are: steel and coated steel, HLE/THLE steel, UHLE steel, and
boron steel (BORON).
It is possible to insert an assembly consisting of up to 3 sheets, with a maximum assembly thickness of 7.5mm.
Use the thumbwheel to select the thickness and type of steel for each sheet. To activate the third sheet, select it and enter the thickness. To deactivate
it, enter a thickness of zero «---».
To help make the display easier to interpret, the type of material is colour-coded.
- Blue: STEEL
- Yellow: HLE (and THLE)
- Orange: UHLE
- Purple: BORON
4.3.3 Manufacturer Mode
This mode only works in clamp mode. It allows a pre-registered point to be called up by name according to the manufacturer's repair specifications.
Once this mode has been selected from the general menu, select the manufacturer and the point defined in the repair specification.
4.3.4 Manual Mode
Limitation of force and current parameters according to the type of arm
To prevent damage to the arm, the machine automatically limits the maximum force and current that can be selected by the user in relation to each
arm.
Example:
G1 arm Max current = 13kA Max force = 550daN
G7 arm Max current = 5.5kA Max force = 150daN
46
Translation of the original
instructions
This mode allows you to set the parameters of the weld spot manually, following the instructions in a
repair manual. The parameters that can be set in this mode are:
- Current
- Time
- Clamping force
GYSPOT PTI NEO - 400 V
