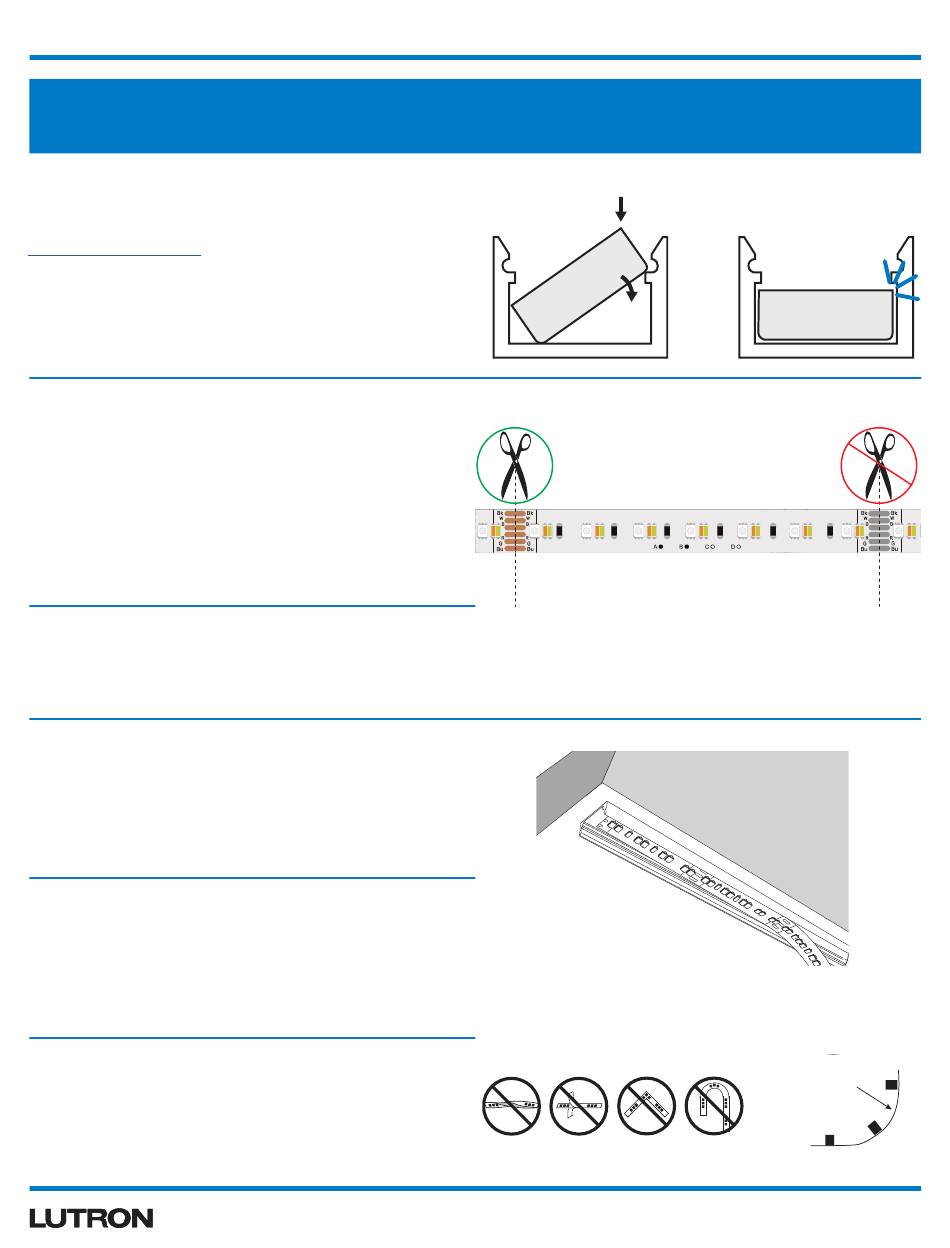

1. If installing the LED tape into an aluminum channel
(optional), follow the mounting instructions on the
Extrusion Install Guide
Note: When using a 6-pin connector with the SR2
extrusion, slide the connector in from the extrusion end
or insert angled from the top and snap in.
2. Measure and cut the LED tape to the desired length at
one of the marked locations, ensuring that the cut is
perpendicular to the tape.
Note: If using tape-to-wire connectors, DO NOT cut at
the soldered pads. Connectors CANNOT be used at
locations with soldered pads.
3. Clean the surface that the LED tape will be adhered to,
ensuring that it is dry and free of dust.
4. Peel the backing off the LED tape and attach the LED
tape to the surface at a point that allows the LED tape
to connect to the wireless controller. Press and hold for
10 seconds.
a. The first section of tape is provided with soldered
leads for convenience, but the tape may be started
from any section by installing a wire-to-tape
connector (see LED Tape Installation step 5).
b.
DO NOT twist or repeatedly bend the LED tape as this
could cause damage to the connections in the tape itself.
Note: Bend radius may not be tighter than 2 in (50 mm).
®
Lutron Tape Light Solution
LED Tape Installation
prior to installing the tape.
Correct
3 Customer Assistance — 1.844.LUTRON1
Incorrect
DO NOT
cut at the
soldered pads
Bend radius may
not be tighter than
2 in (50 mm)
