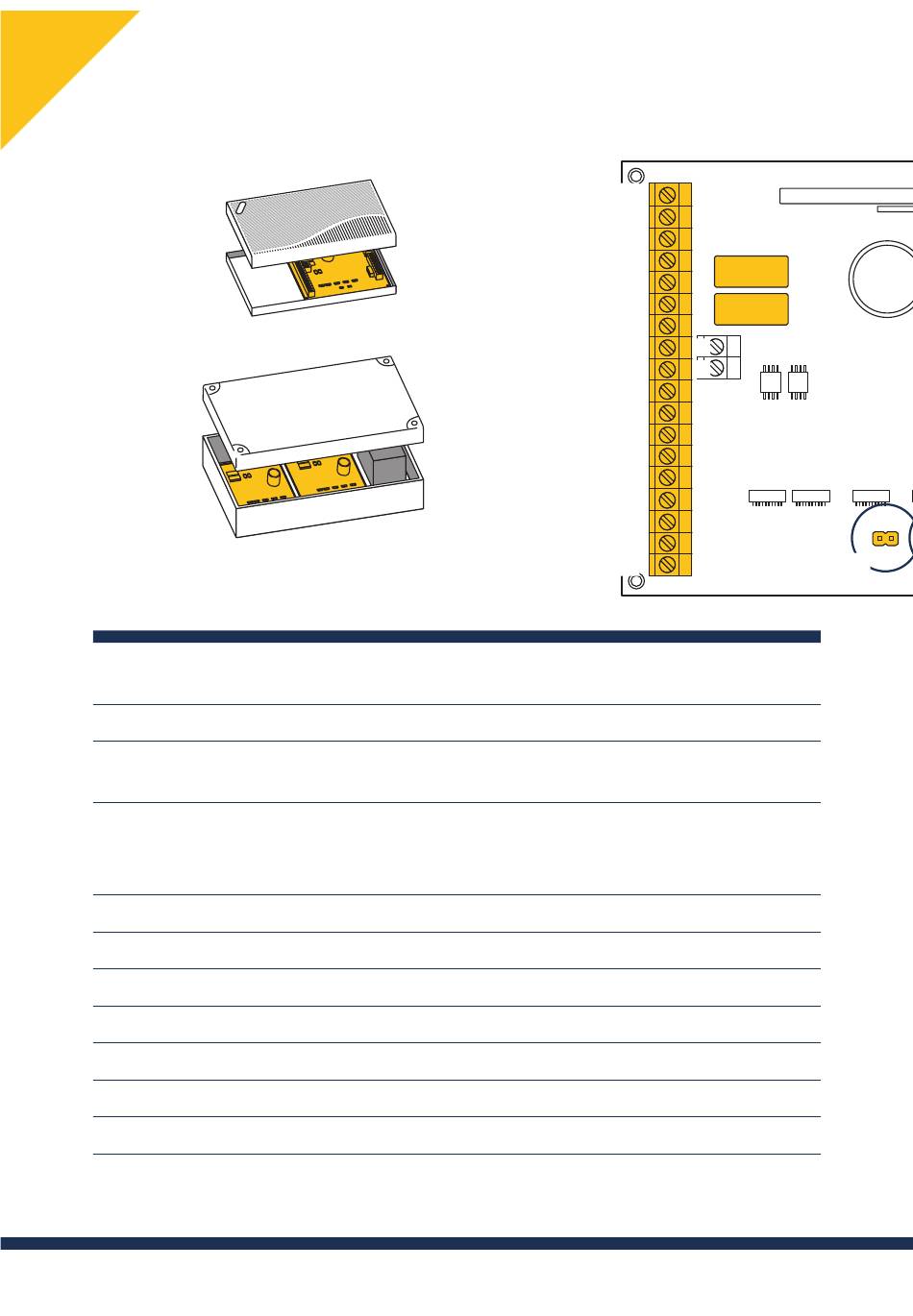

ELENCO COLLEGAMENTI CENTRALINA / CONTROL UNIT
Art. 54250
Art. 54255
Alimentazione centralina, DC / Control unit power supply, DC /
Alimentation centrale, DC
500 mA max (scheda sensoria / sensitive board / carte sensorielle)
Alimentazione centralina, AC / Control unit power supply, AC /
Alimentation centrale, AC
Ingresso connessione per interblocco /
Interlocking connection input /
Entrée connexion pour inter-blocage
Uscita interblocco / Interlocking output / Sortie inter-blocage
Massa / Ground / Terre
Blocco serratura / Lockout / Blocage serrure
Ingresso apertura / Opening input / Entrée ouverture
Ingresso chiusura / Closing input / Entrée fermeture
Uscita apertura / Opening output / Sortie ouverture
Uscita chiusura / Closing output / Sortie fermeture
Uscita +5 V / Output +5 V / Sortie +5 V
+12 V IN
1
-12 V IN
2
+12 V OUT
3
AC IN
4
AC IN
5
ITB IN 1
6
ITB IN 2
7
ITB IN 3
8
ITB OUT
9
GND
10
GND
11
LOCK
12
APERT
13
CHIUS
14
GND
15
OUT AP
16
OUT CH
17
5 V
18
F1
F2
