Manual Operation
3.1.7 View Status of Microprocessor Inputs
This selection allows the user to view the status of each microprocessor input. Each input is iden-
tified by name and MTA connection. A + indicates the input is grounded; a – indicates the input
is open. Page 0 (Figure 28: Typical Inputs Display for Input/Output Board, page 28
inputs for input/output board #1. Page 1 displays the inputs for input/output board #2. Page 2
(Figure 29: Inputs Display for Microprocessor Board, page 28
microprocessor board. Page 3 displays the inputs for input/output board #3 when the press is con-
figured for Extra Data Pass. Page 4 displays the inputs for input/output board #4 when the press
is configured for Allied Weight Inputs.

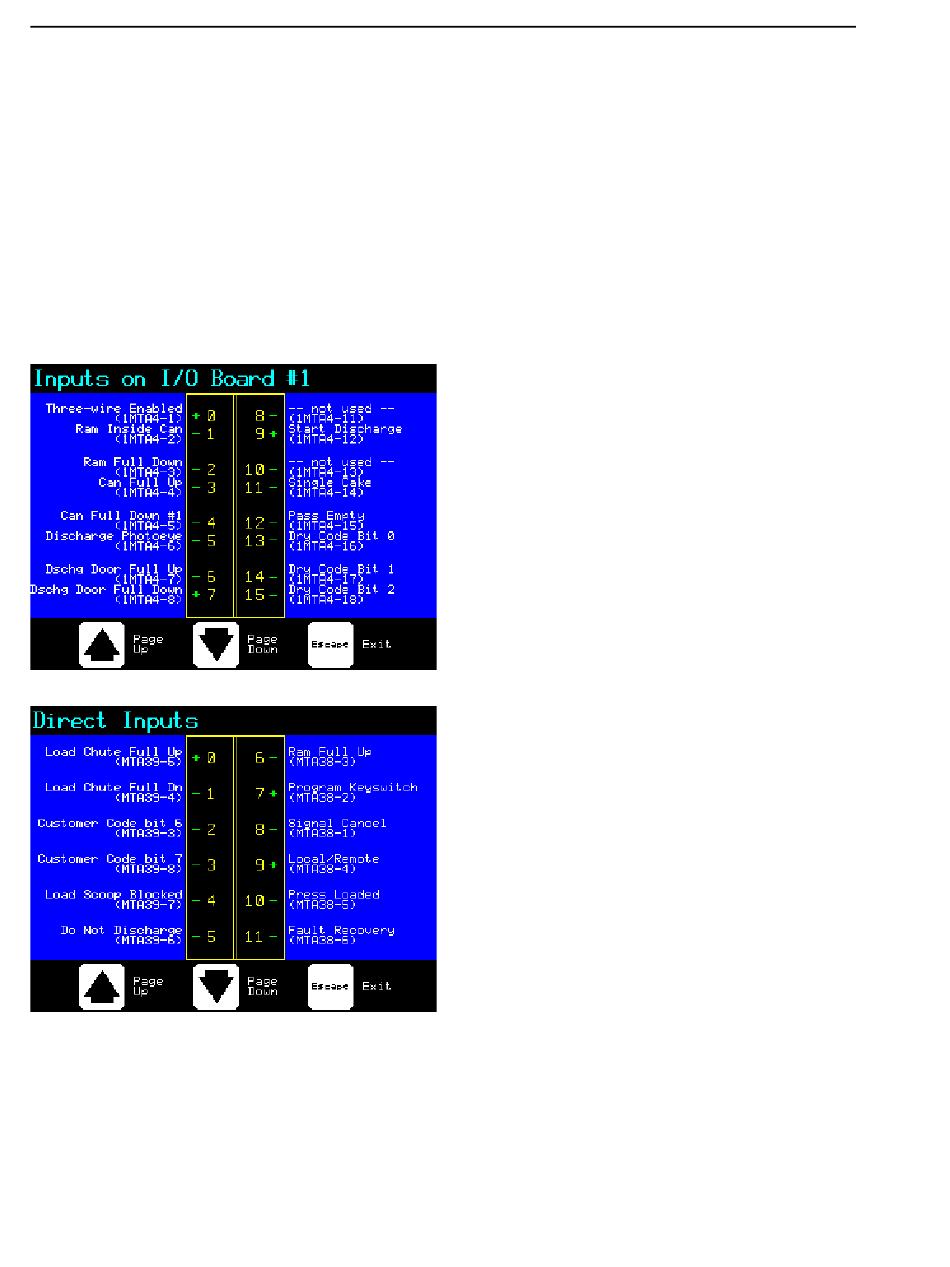

Figure 28. Typical Inputs Display for Input/Output Board
Figure 29. Inputs Display for Microprocessor Board
28
BNP1VO02.C18 0000581097 A.11 A.2 B.2 7/27/23, 11:03 AM Released
) displays the direct inputs to the
) displays the
