Milnor Mark VI Guide De L'opérateur page 16

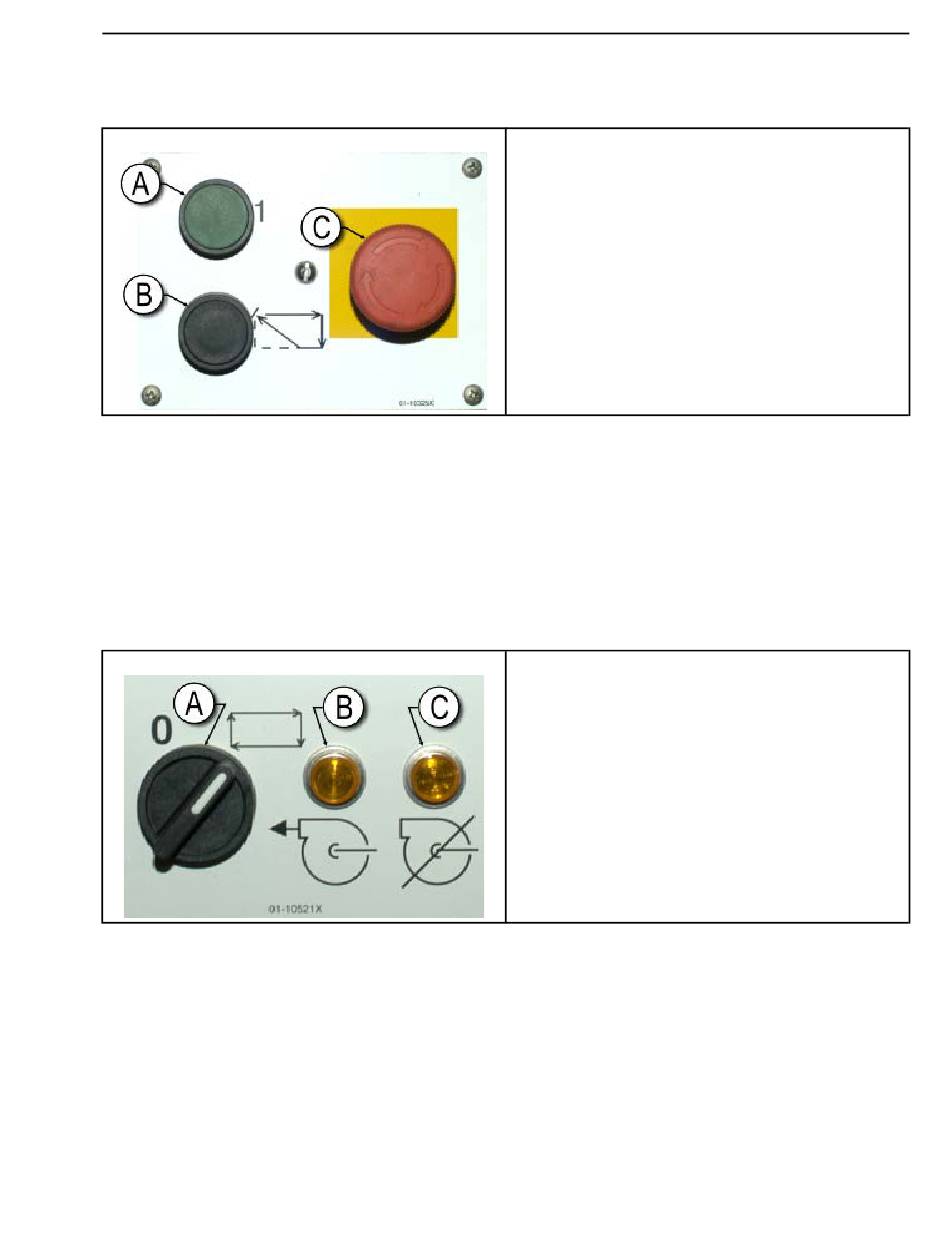

Figure 5. Stop/Fault Recovery Controls
Control Panel
1.1.4 Reuse Pump Controls
The reuse pump sends water extracted by the press back to the washer, where the water is used to
flush goods down the load scoop and to fill the first module. The press microprocessor control
turns this pump on and off as necessary to move the water and minimize the time the pump runs
dry. The two-position switch allows a person to disable the pump, and the two indicator lamps
help determine if the pump is running, or not running when it should run.
Figure 6. Reuse Pump Controls
Control Panel
1.1.4.1 Reuse Pump Off/Automatic Switch
The pump off/automatic switch allows the operator to disable the reuse pump, primarily for
maintenance.
Display or Action
Pellerin Milnor Corporation
Explanation
0 This symbol represents the Off—or disabled—switch position.
Legend
A... Start switch (see Section 1.1.2.5 , page
B... Fault Recovery switch (see
11)
C... Emergency Stop switch (see
4)
BNPUUO01.C13 0000579478 A.2 B.2 A.6 7/6/23, 4:40 PM Released
Legend
A... Pump Off/Automatic switch
B... Pump Running lamp
C... Pump Disabled lamp
BNPUUO01.C14 0000579491 B.2 A.6 7/26/24, 4:05 PM Released
Controls
7)
Section 1.1.5.2 , page
Section 1.1.1 , page
9
