If the COINC conveyor has a cake (1=Yes), the controller may prompt the operator to confirm
cake data. The COINC conveyor returns to automatic operation after cake data is verified. If the
COINC is not loaded, the normal run display appears.
Figure 11. COINC Loaded Prompt
2.1.4 Using the Normal Run Display
In the normal automatic operating mode, the operator only needs to monitor the press for load er-
rors and ensure that the desired pressure is achieved.
lustrates the important elements of the display during normal operation, which are described in
Section 2.1.4.1 : Formula Number, page 15
page 17.
Figure 12. Normal Run Display
2.1.4.1 Formula Number
Valid formula numbers are 00 through 15. When the press receives a batch, the Miltrac™ control-
ler sends the press a formula number, along with other batch data. The press executes the local
formula that corresponds to the number it receives from the Miltrac™ controller.
2.1.4.2 Formula Name
The formula name is stored in the press controller and corresponds to the formula number.
Pellerin Milnor Corporation
through
Press Operating
BNP1VO01.C05 0000579934 B.2 A.4 A.6 7/13/23, 9:25 AM Released

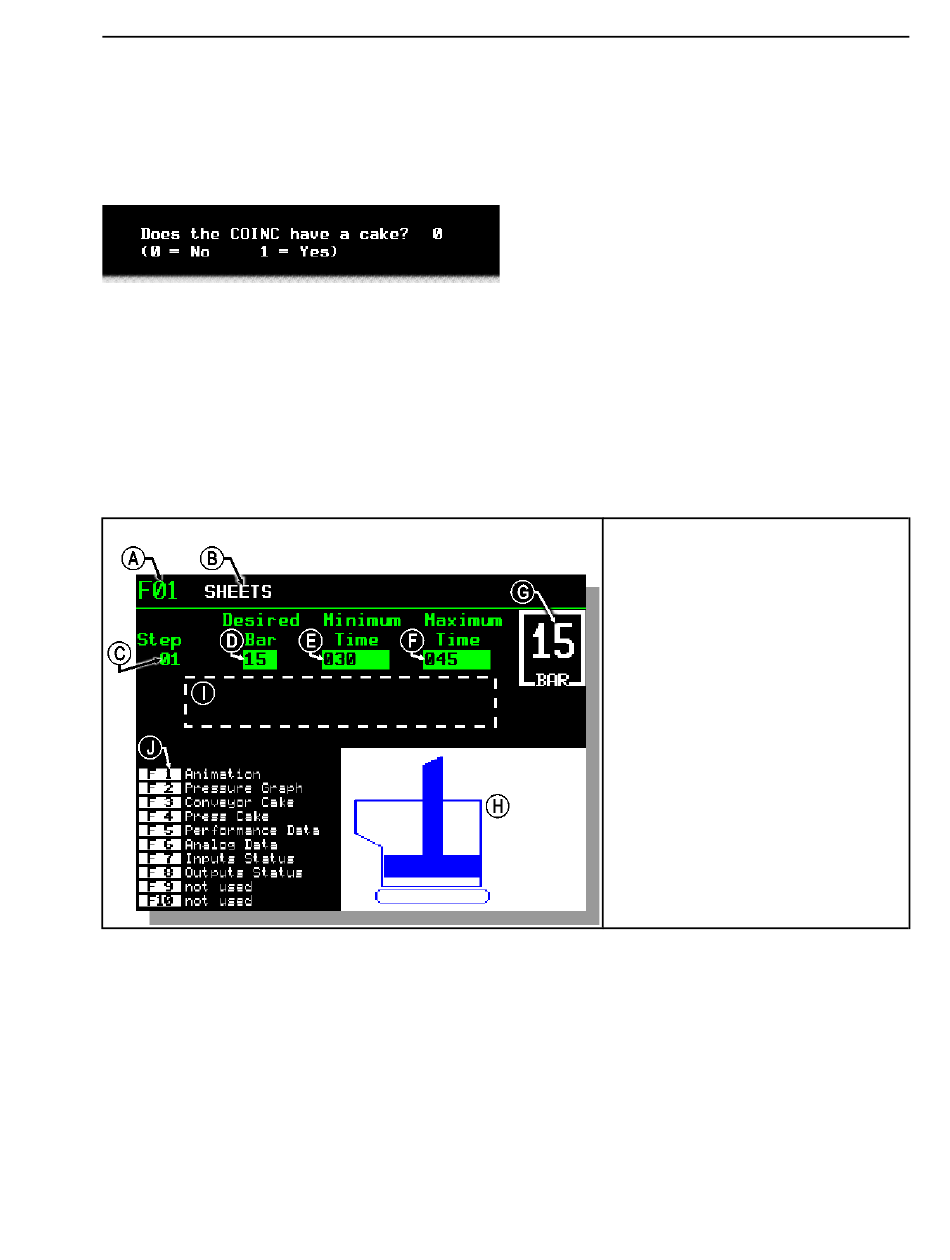

Figure 12: Normal Run Display, page 15
Section 2.1.4.10 : Display Options Help,
A... Formula number
B... Formula name
C... Current step number
D... Desired pressure in bar
E... Minimum time
F... Maximum press time
G... Current pressure in bar
H... Animation and graphing region
I... Message region
J... Display options help
