1.1.5.1 Press is Loaded Switch
The press is loaded switch provides an input to the microprocessor controller to indicate that the
press contains a load and should prompt for cake data.
Display or Action
SHPL
1.1.5.2 Fault Recovery Switch
The fault recovery switch makes a momentary input to the microprocessor controller to indicate
that the cause of the previous fault has been cleared. This microprocessor input signals the micro-
processor that it is safe to resume operating when the operator presses the start switch.
Display or Action
SHRF
1.1.6 Lamp Test Switch (Optional)
Certain equipment standards require this momentary push-button switch. When it is provided, it
is mounted near the main switch panel. When this switch is pressed, all indicator lamps on the
switch panel are illuminated, allowing the operator to check for malfunctioning bulbs.

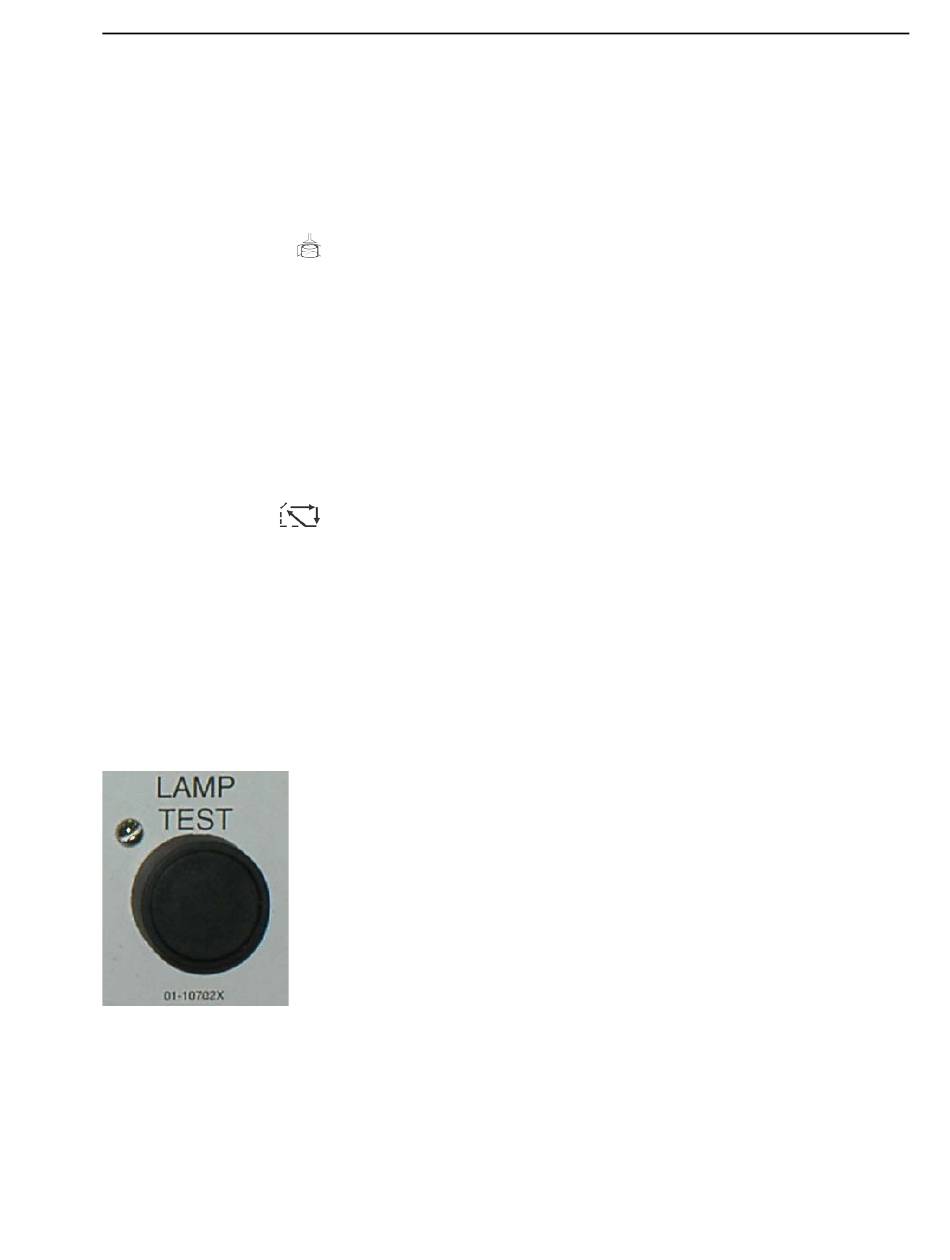

Figure 8. Lamp Test Switch
1.1.7 Gauge Cluster
The Milnor ® single stage press is equipped with three gauges for monitoring pressures in the hy-
draulic system. The arrangement of these gauges is shown in
Pellerin Milnor Corporation
Explanation
This symbol indicates the press is loaded switch in this manual.
This notation in wiring diagrams refers to the press is loaded
switch.
Explanation
This symbol represents the fault recovery switch in this manual.
This notation in wiring diagrams refers to the fault recovery
switch.
