Controls
The gauges described here are for maintenance purposes only. See the service manual for
more details.

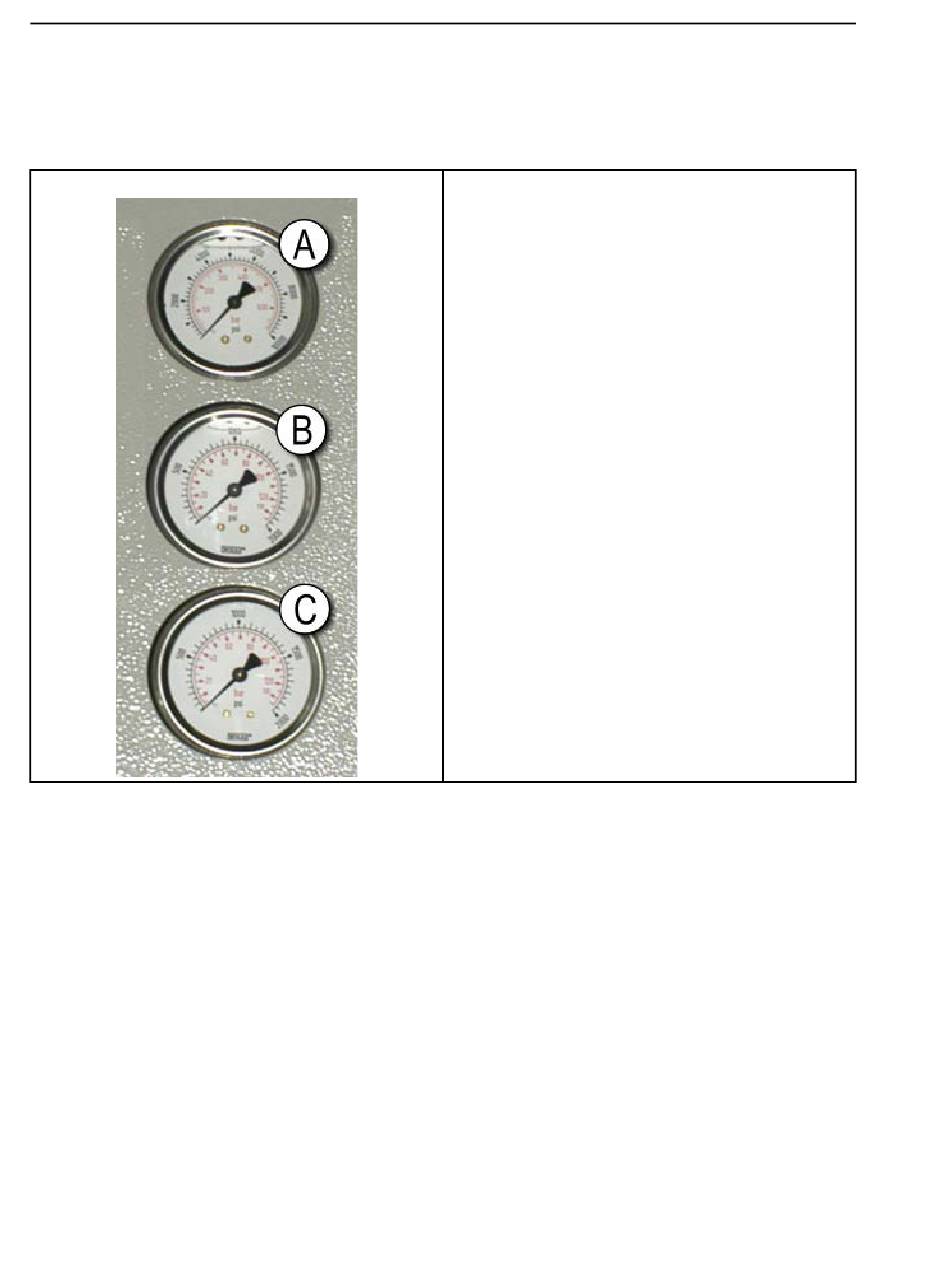

Figure 9. Gauge Cluster
Gauges
1.1.7.1 System Pressure Gauge
The top gauge is used for setting the idle pressure, pump compensation pressure, first and second
stage motor horsepower, proportional valve maximum pressure, and system relief pressure.
1.1.7.2 Ram Relief Pressure Gauge
The middle gauge is used to set the ram relief pressure and second stage motor horsepower.
1.1.7.3 Can Relief Pressure Gauge
The lower gauge is used to set the can relief pressure.
12
Legend
A... System pressure gauge
B... Ram Relief pressure gauge
C... Can Relief pressure gauge
