Milnor Mark VI Guide De L'opérateur page 17

Controls
SHPRP
1.1.4.2 Pump Running Lamp
Display or Action
ELPRP
1.1.4.3 Pump Disabled Lamp
Display or Action
ELPTT

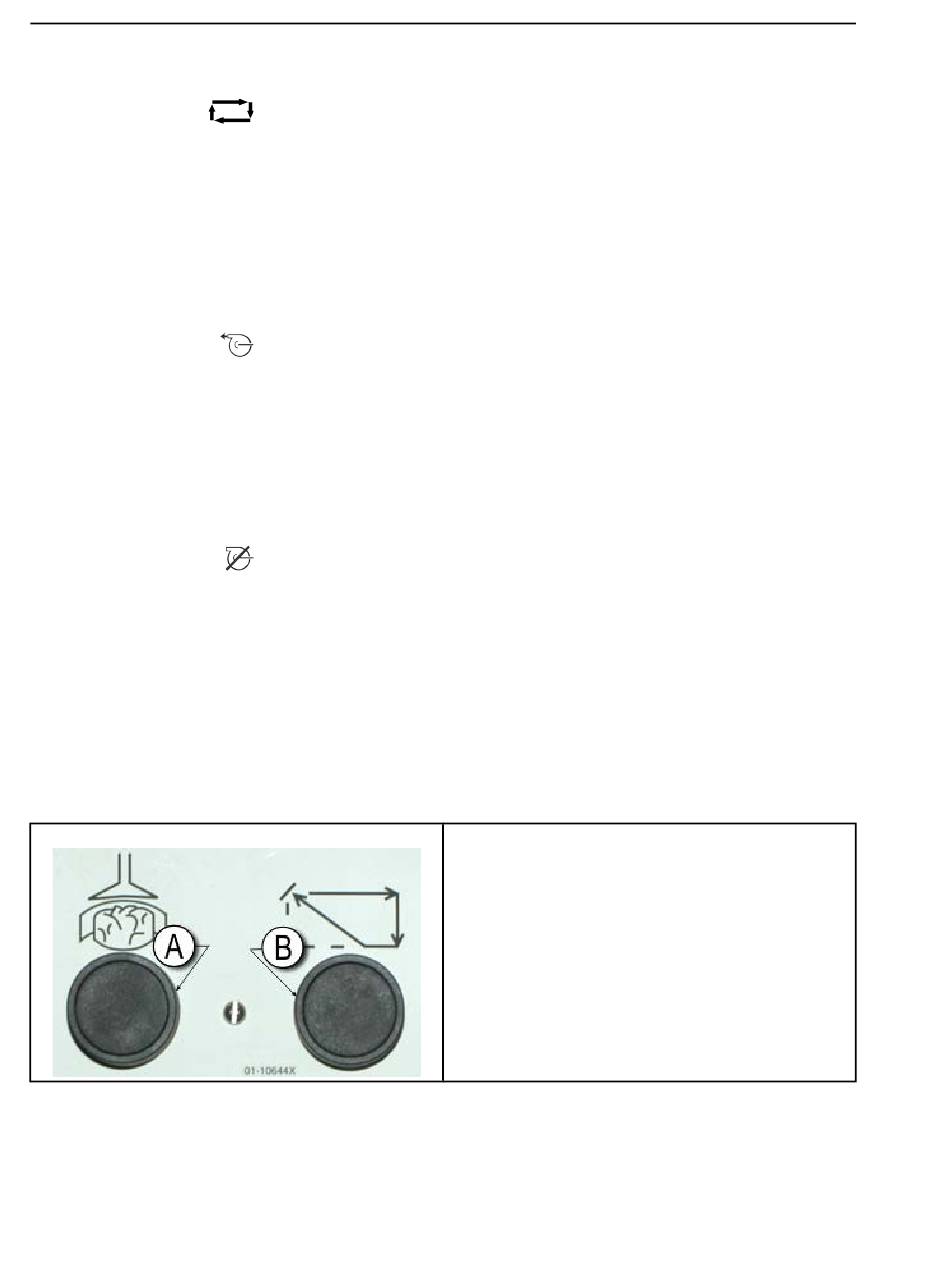

1.1.5 Press is Loaded/Fault Recovery controls
Figure 7. Press Loaded/Fault Recovery Controls
Control Panel
10
This symbol represents the Automatic operation switch position.
In this position, the controlled component operates under the con-
trol of another component, usually the microprocessor.
In wiring diagrams the Reuse Pump Off/Automatic switch is
item SHPRP.
Explanation
This symbol represents the Pump Running lamp in this manual.
The lamp is illuminated when the reuse pump is running.
This symbol represents the Pump Running lamp in the wiring
diagrams.
Explanation
This symbol represents the Pump Disabled lamp in this manual.
The lamp is illuminated when the reuse pump did not run after op-
eration was commanded, which is an error condition. The most
common cause of this error is a tripped reuse pump motor
overload.
This symbol represents the Pump Disabled lamp in the wiring
diagrams.
BNPUUO01.C17 0000579488 A.3 B.2 A.6 7/10/23, 11:19 AM Released
A...
B...
BNPUUO01.C15 0000579490 B.2 A.6 7/26/24, 4:06 PM Released
BNPUUO01.C16 0000579489 B.2 A.6 7/26/24, 4:08 PM Released
Legend
Press is Loaded switch
Fault Recovery switch
