Wiring A Probe - ADEUNIS TEMP V4 IP68 Sigfox RC1 Guide Utilisateur

TEMP V4 IP68 Sigfox RC1 - Guide utilisateur / User guide version V3.1.1
CAUTION: To maintain the IP 68 it is important to screw the cable glands fully and screw the screws with a PZ.1 head
and a tightening torque of 0.9 N.m.
As a reminder the probe 1 is on the rounded side of the housing, the probe 2 is on the flat side of the housing.
1
2 1
3
5V + -
1 2 3 4
Remove the gland plug

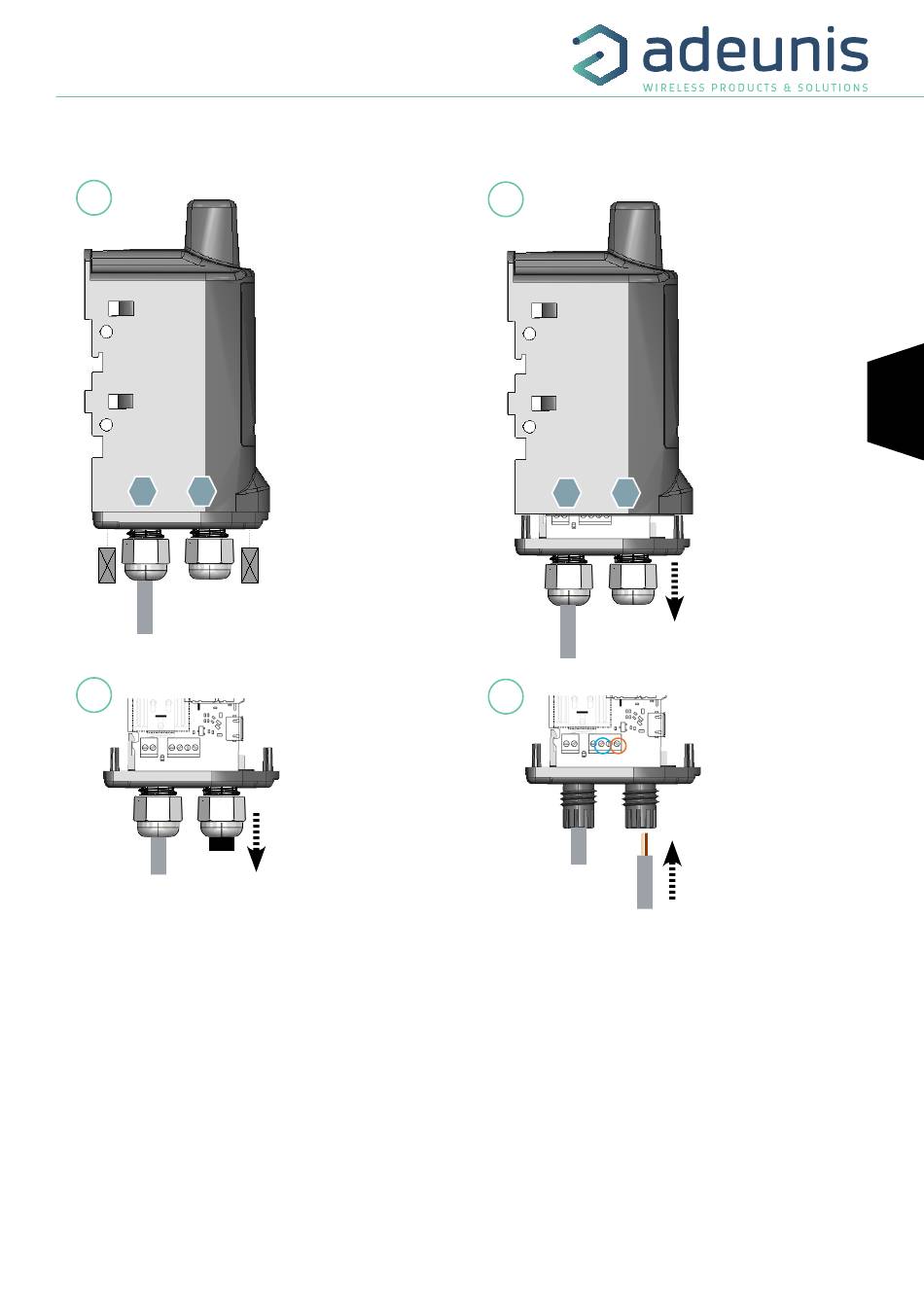

5.2. Wiring a probe

In order to wire a probe, please follow these instructions:
*The wiring of the probes at the right place is important to match the associated registers and for the interpretation of the results (cf. Technical
Reference Manual, Registers).
Remove the
screws
2
2 1
5V + - 1 2 3 4
4
5V + - 1 2 3 4
Insert the cable of the probe supplied with
the product and connect the wires to the
terminal blocks:
• for probe 1* terminals 3 and 4
• for probe 2* terminals 1 and 2
Open the product by
FR
pulling on the cable
gland
WARNING : do not
pull on the wires
EN
55 of 57
