Pump Reassembly; Restart Instructions - Sta-Rite Supermax-Vs2 Guide De L'installateur

18

Pump Reassembly

1. When installing the replacement seal into the
seal plate, use soapy water to wet the rubber
boot before pressing it into the seal plate.
2. Remount the seal plate to the motor.
3. Before installing the rotating portion of the seal
on the motor shaft, wet the motor shaft with
soapy water and slide the seal onto the motor
shaft. Ensure that the carbon face contacts the
ceramic face of the stationary seat. Press the
seal into the seal plate with your thumbs and
wipe off the ceramic with a clean cloth.
4. Screw impeller onto the motor shaft (clockwise
to tighten).
5. Screw in the impeller lock screw (counter-
clockwise to tighten).
Note: Insert a 1/4" hex Allen wrench into the
motor shaft through the hole in the rear motor
fan cover. This will prevent the motor shaft
from rotating and you screw in the impeller lock
screw.
6. Remount the diffuser onto the seal plate. Make
sure the plastic pins and holding screw inserts
are aligned.
7. Grease the diffuser quad ring and seal plate
O-ring prior to reassembly.
8. Assemble the motor sub-assembly to the
strainer pot-pump body. Tighten the bolts until
all 4 bolts are in place and finger tightened.
9. Fill the pump with water.
10. Reinstall the pump lid and plastic clamp; see the
next section, 'Restart Instructions'.
11. Re-prime the system.
DIFFUSER SEAL
DIFFUSER SCREWS (3X)
DIFFUSER IMPELLER SET SCREW
(REVERSE THREAD)
SuperMax

Restart Instructions

If VS2 Variable Speed Pump is installed below the
water level of the pool, close return and suction
lines prior to opening hair and lint pot on pump.
Make sure to re-open valves prior to operating.
Priming the Pump
The pump strainer pot must be filled with water
before the pump is initially started.
Follow these steps to prime the pump:
1. Remove the pump lid plastic clamp. Remove the
pump lid.
2. Fill the pump strainer pot with water.
3. Reassemble the pump cover and plastic clamp
onto the strainer pot. The pump is now ready to
prime.
4. Open the air release valve on the filter, and stand
clear of the filter.
5. Turn on the power to the pump.
6. Press the Start/Stop button on the drive keypad.
If the pump is currently scheduled to run it will
start.
Note: If the pump is not schedule to start, press
a Speed button to begin a manual override that
will start the pump.
7. When water comes out of the air release valve,
close the valve. The system should now be free
of air and recirculating water to and from the
pool.
MOTOR TO SEALPLATE
MECHANICAL SEAL
SEAL PLATE
SEAL PLATE O-RING
IMPELLER

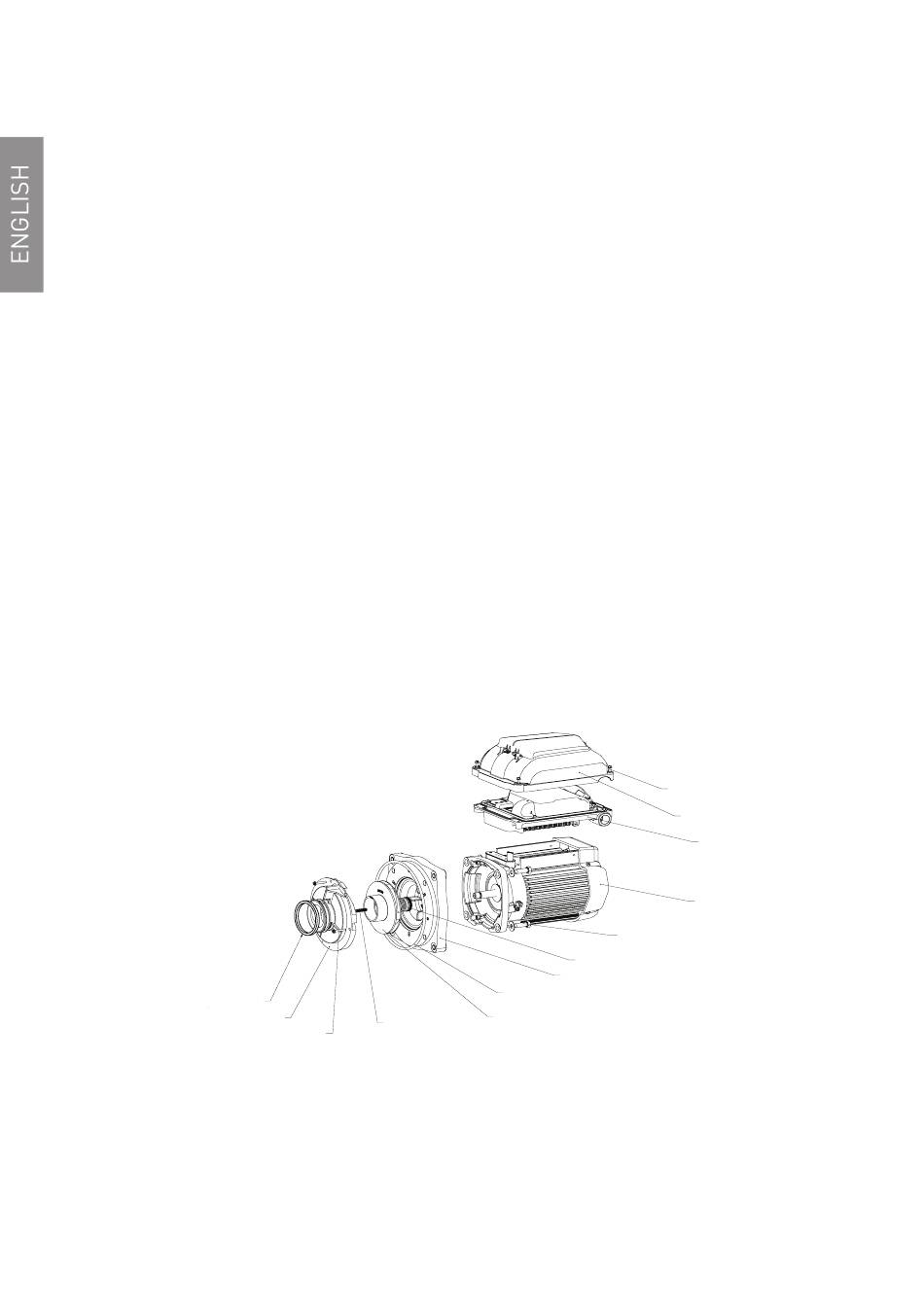

VS2 Motor Assembly
®
DRIVE COVER TO
DRIVE SCREWS (4X)
DRIVE COVER
DRIVE
MOTOR
HARDWARE (4X)
