English

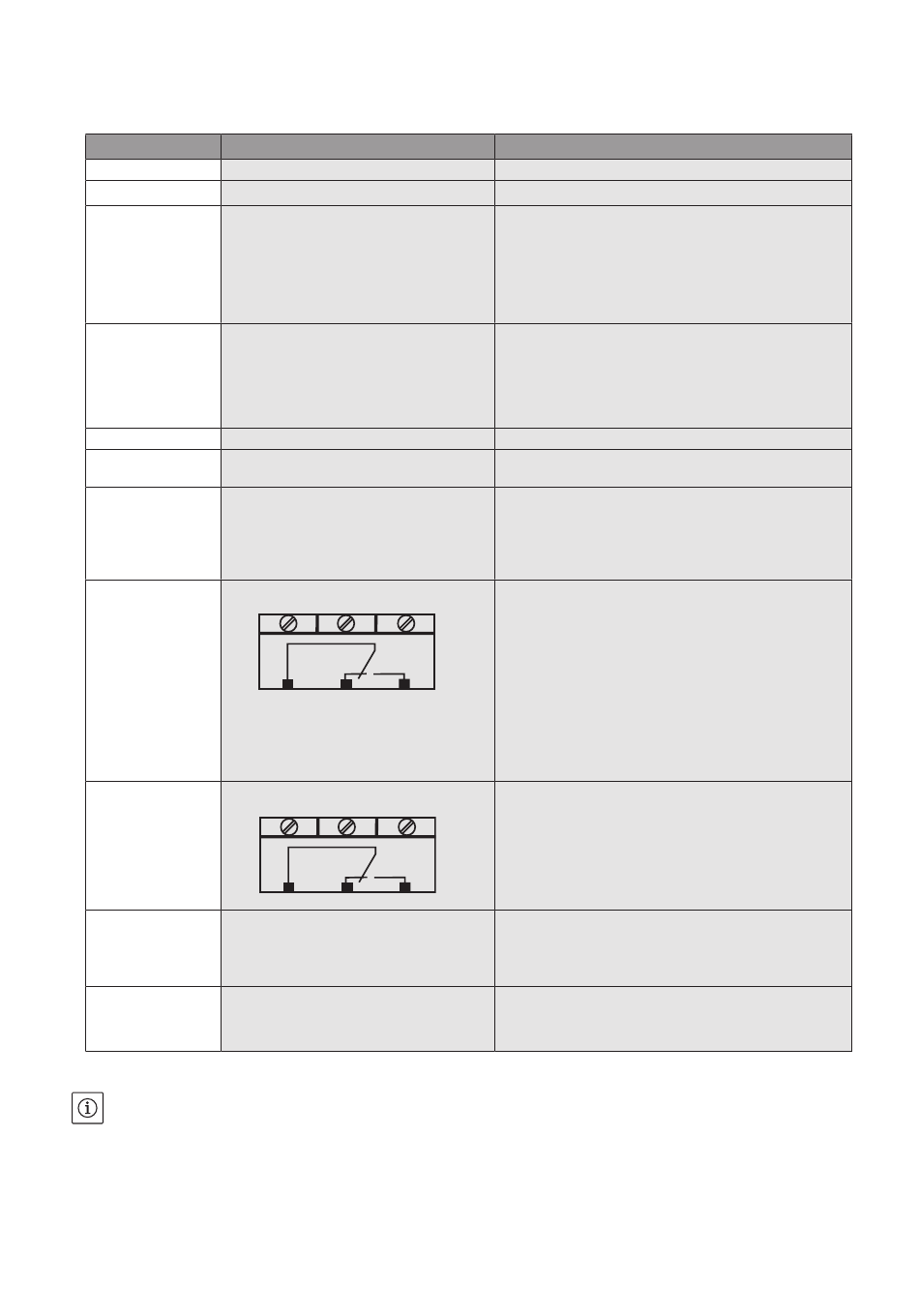

Connection terminal assignment
- Remove the screws and take off the
converter cover.
Type key
L1, L2, L3
PE
IN1
IN2
GND (x2)
+24 V
Ext. Off
SBM
SSM
PLR
LON
The terminals IN1, IN2, GND and Ext. Off comply with the
requirement "secondary isolated circuits, limited voltage /
limited current" (according to UL508C and EN61800­5­
1) with respect to the mains terminals as well as the SBM
and SSM terminals (and vice versa).
48
Assignment
Mains connection voltage
Earth terminal
Sensor input
External setpoint input
Ground terminals
Continuous power supply for sensor
ON/OFF control input
"DEACTIVATION priority"
for a potential­free external switch
"Available transfer" relay
"Failures transfer" relay
Connection terminals of the PLR
communication interface
Connection terminals of the LON
communication interface
Remarks
Three-phase current 3 ~ IEC38
x1
Nature du signal : tension (0 ­ 10 V, 2 ­ 10 V)
Signal nature: voltage (0­10 V, 2-10 V)
Input resistor: Ri ≥ 10 kΩ
Signal nature: current (0­20 mA, 4­20 mA)
Input resistor: R = 500 Ω
b
Can be configured in the "Service" menu <5.3.0.0>
Signal nature: voltage (0­10 V, 2-10 V)
Input resistor: Ri ≥ 10 kΩ
Signal nature: current (0­20 mA, 4­20 mA)
Input resistor: Rb = 500 Ω
Can be configured in the "Service" menu <5.4.0.0>
For each IN1 and IN2 input
Max. current: 60 mA.
The power supply is protected from short­circuits.
The potential­free external switch is used to activate
and deactivate the pump.
On installations with high numbers of starts
(> 20 per day), activation and deactivations should
be performed via "Ext. Off".
In normal operation, the relay is activated when the
pump is running or in standby.
The relay is deactivated if an initial malfunction occurs
or if the main power supply is disconnected (pump
switches off).
Pump availability, even temporarily, can thus be signalled
to the switchgear.
Can be configured in the "Service" menu <5.7.6.0>
Potential­free contact:
minimum: 12 V DC, 10 mA
maximum: 250 V AC, 1 A
If consecutive malfunctions of the same type are
detected (from 1 to 6 according to significance),
the pump switches off, and this relay is activated
(until manual intervention).
Potential­free contact:
minimum: 12 V DC, 10 mA
maximum: 250 V AC, 1 A
The optional IF module PLR can be inserted into the
multiple connector placed in the converter connector area.
The module is protected from polarity reversal.
The optional IF module LON can be inserted into the
multiple connector placed in the converter connector area.
The module is protected from polarity reversal.
WILO SE 04/2020
