PRODUCT
IDENTIFICATION
Hot Air
Outlet
(Front)
Lower Shell
On/Off Switch
Generic LP 155
Hose /Regulator
Assembly

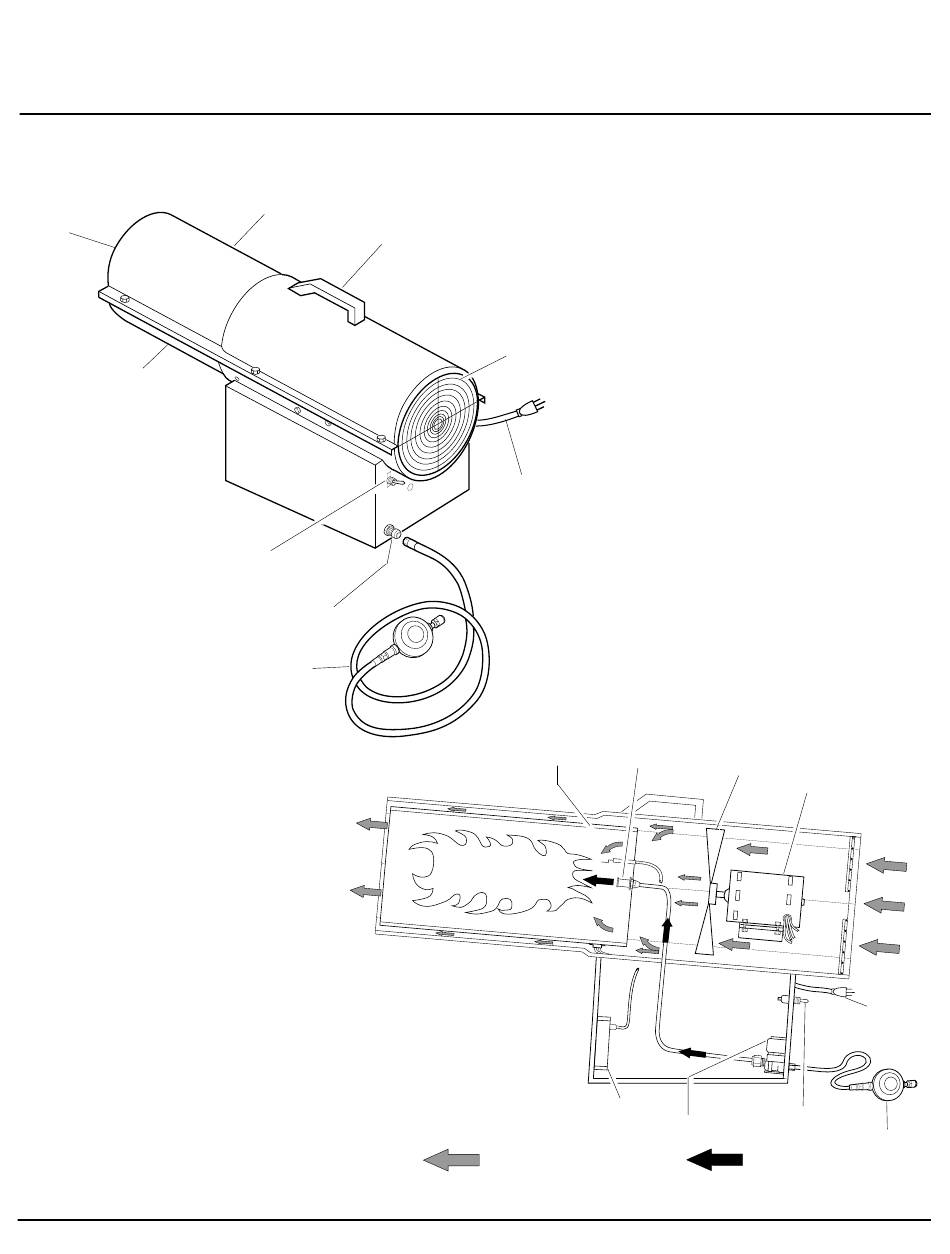

Figure 1 - Model RCLP155B
THEORY OF
OPERATION
The Fuel System
The hose/regulator assembly attaches to the
propane gas supply. The propane gas moves
through the solenoid valve and out the nozzle.
The Air System
The motor turns the fan. The fan pushes air
into and around the combustion chamber.
This air is heated and provides a stream of
clean, hot air.
The Ignition System
The direct spark ignitor (DSI) sends voltage
to the spark plug/ignitor. The spark plug/
ignitor ignites the fuel and air mixture.
THE SAFETY CONTROL
SYSTEM
This system causes the heater to shut down
if the flame goes out.
103909
Upper Shell
Handle
LP-PFA/PV 008B
Inlet
Connector
Combustion Chamber
Clean
Heated
Air Out
(Front)
Figure 2 - Cross Section Operational View
OWNER'S MANUAL
UNPACKING
1.
2.
3.
Fan Guard
Power Cord
Nozzle
Air For Combustion
DSI
Air For Combustion
And Heating
3
Remove all packing items applied to
heater for shipment. Keep plastic cover
caps (attached to inlet connector and
hose/regulator assembly) for storage.
Remove all items from carton.
Check all items for shipping damage.
If heater is damaged, promptly inform
dealer where you bought heater.
Fan
Motor
Fuel
On/Off Switch
Solenoid
Valve
Hose/Regulator
Assembly
Fuel
Cool
Air In
(Back)
Power
Cord
