FIXTURE ASSEMBLY INSTRUCTIONS
Take caution when handling light bars. Ensure the LED
array does not come in contact with sharp objects or
force that may damage the diodes.
1

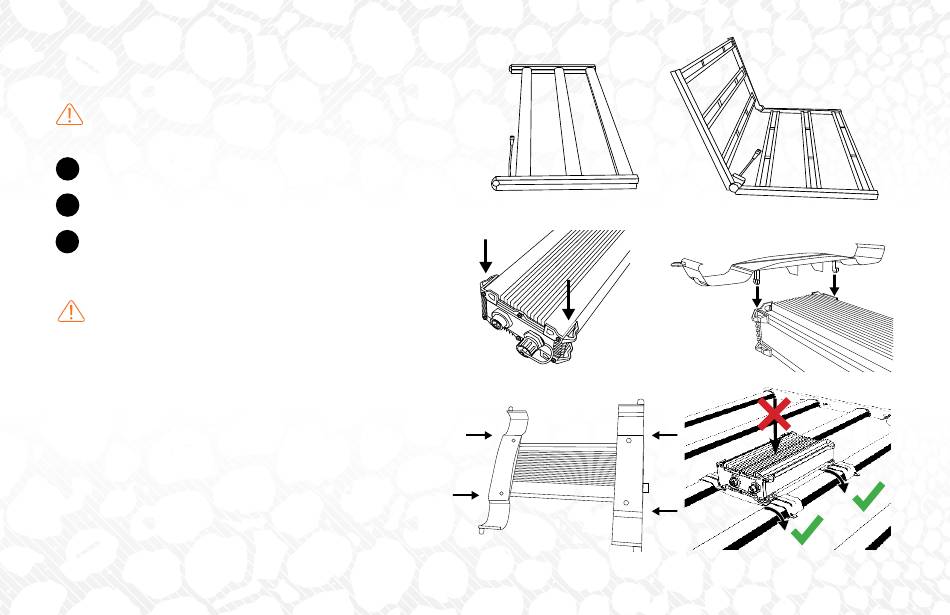

Unbox and unfold light bar module .
2
Place on flush, stable surface . Make sure LEDs are facing down .
3
Install power supply brackets to power supply and then to light bar
module .
DO NOT push directly on power supply to attach to the
two center light bars. Use the clips on the corner of the
bracket to the two center light bars.
SPYDR 2x, and 2p
i.
Place the PSU on a flat level surface and identify the reinforced
corner mounts on unit and securing posts on brackets .
ii.
Insert bracket posts into the corner mounts of the PSU . The
center fins of the bracket will fit inside of the PSU's heat sink .
iii.
Push/slide bracket in towards PSU until the bracket clips into
place . Repeat on opposite side .
iv.
Once brackets are securely attached flip unit over and clip on to
the two center bars in the middle of the SPYDR2 fixture by using the
clips on the corner of the bracket .
4
i.
"
K
C
L I
C
"
iii.
"CLICK"
ii.
iv.
"CLICK"
