AC AND DC CABLE INSTALLATION
WARNING: Risk of Electrical Shock . Turn off and disconnect the power before installing, moving, or cleaning to reduce the possibility of
serious injury . DO NOT connect or disconnect cables to or from the power supply or LED light bar while energized . Test all cable connections
for correct and secure engagement after installation .

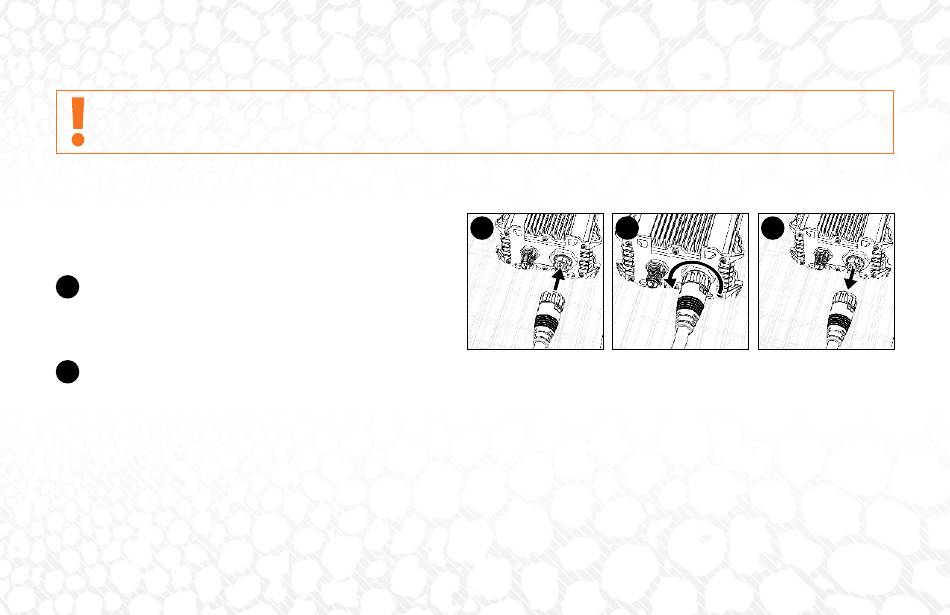

INSTALLATION OF THE DC POWER CABLE TO THE POWER SUPPLY AND LED LIGHT BAR
All DC cables use a push-lock type M19 2-pin connector to connect
the cable to the power supply and LED light bar.
To Attach or Remove the Connectors:
To attach the connector, match up the keyed pins on the cable (male to
1
female) to the receptacle and push it on until you hear a "click" . Check
that the connector is securely attached by lightly tugging on the cable .
The cable will not come off if properly installed . Failure to test the cable
connection may result in electrical shock or damage to the product .
2
To remove the connector, twist the ring on the base of the connector
counter-clockwise approximately a quarter turn until it stops to release,
and then pull straight out .
1
2a
"CLICK"
2b
