RACKS WITH TRAYS AND VAS CONTINUED

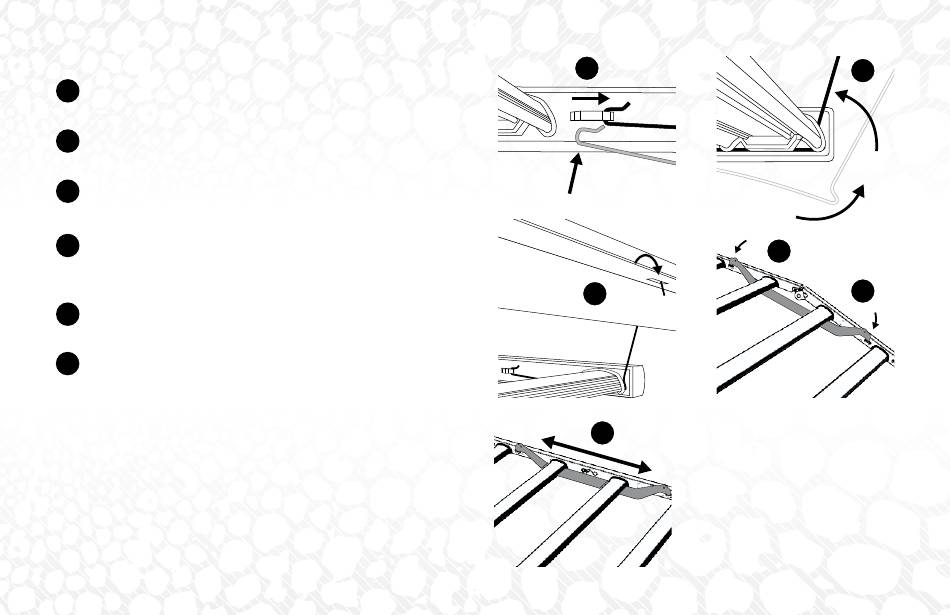

Hook one of the wire hangers on the 2nd bridge lance furthest from the
1
hinge .
Bring wire around the end light bar such that it fits around the end
2
connector as shown .
Hook the other end of the wire hanger into slots on the rack system .
3
Repeat on both sides of the rack .
Install one side of brace by hooking one end of brace into bridge lance
4
on SPYDR frame . Install other side of brace by slightly collapsing SPYDR
fixture at hinge .
Hook the free end of brace into bridge lance on opposite side of SPYDR
5
frame on the other side with the hinge collapsed .
Complete hinge brace installation by unfolding SPYDR frame to fully
6
opened position . Repeat on the other side .
1
3
6
2
"CLICK"
4
5
