INSTALLATION OF THE AC POWER CABLE TO THE POWER SUPPLY
All AC power cables use a push-lock type M19 3-pin connector to
connect the cable to the power supply. The connection to power is
available in several plug types for receptacles, or in pigtails for direct wiring .
To Attach or Remove the Connectors:

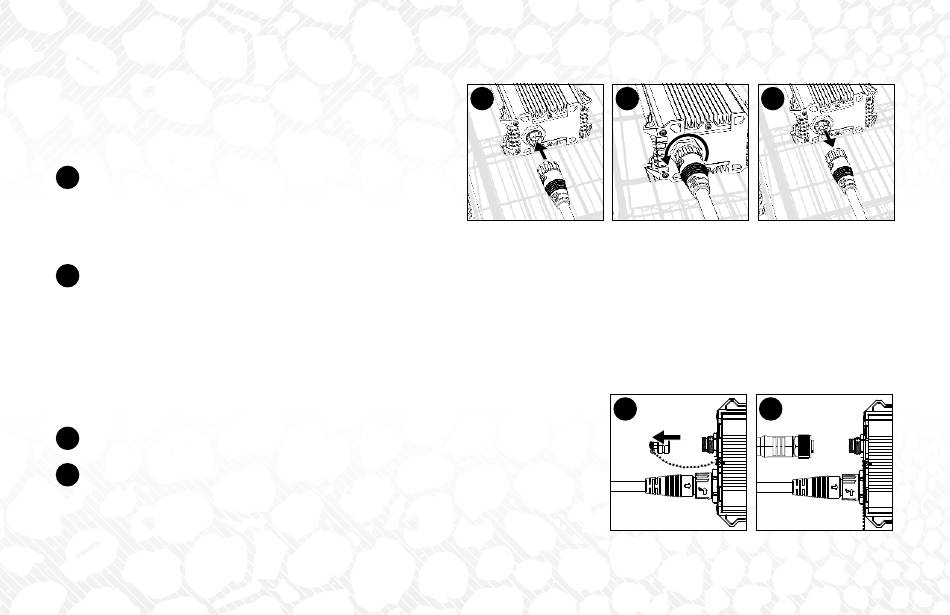

To install the connector, match up the keyed pins on the cable (male to
1
female) to the receptacle and push it on until you hear a "click" . Check
that the connector is securely attached by lightly tugging on the cable .
The cable will not come off if properly installed . Failure to test the cable
connection may result in electrical shock or damage to the product .
2
To remove the connector, twist the ring on the base of the connector
counter-clockwise approximately a quarter turn until it stops to release,
and then pull straight out .
INSTALLATION OF THE DIMMING CABLE TO THE POWER SUPPLY
The DC dimming cable uses a coaxial type A-code M12 3-pin connector to connect
the cable to the power supply. To install the DC dimming cable:
1
Remove the dust cap from the power supply dimming port and let it hang by the chain .
Match up the connector end on the cable (female) to the power supply dimming port
2
(male) and twist the ring on the connector clockwise to tighten until hand-tight . Check
that the connector is securely attached by lightly tugging on the cable . The cable will
not come off if properly installed . Failure to test the cable connection may result in
electrical shock or damage to the product or connected lighting controller .
14
1
2a
"CLICK"
2a
2b
2b
