lines by colors respectively into detector terminals. Power input
(red line for power positive while black line for negative), and
signal output (white for NO / NC while blue for GND). Fix and
install cable detector.
3). Loosen the screw terminals of host cable defense zones with a
screwdriver, and then connect four-core detector signal lines
respectively to the defense port (white for Z1 while blue for
GND), and power port (red for DC12V output while black for
GND); it is tightened.
4). Other detectors will be subject to the same connection, and
note that the power supply is aligned to the power supply while
the signal is aligned to the signal.
5). The alarm system has 8 cable defense zones, respectively for
8 different types of cable detectors.
6). If you access more than 8 cable detectors, detector signal
lines in the adjacent position with the same type can be installed
subject to series connection into one zone. Regardless of which
detector is triggered, the host will alarm, but the alarm is just the
same zone.

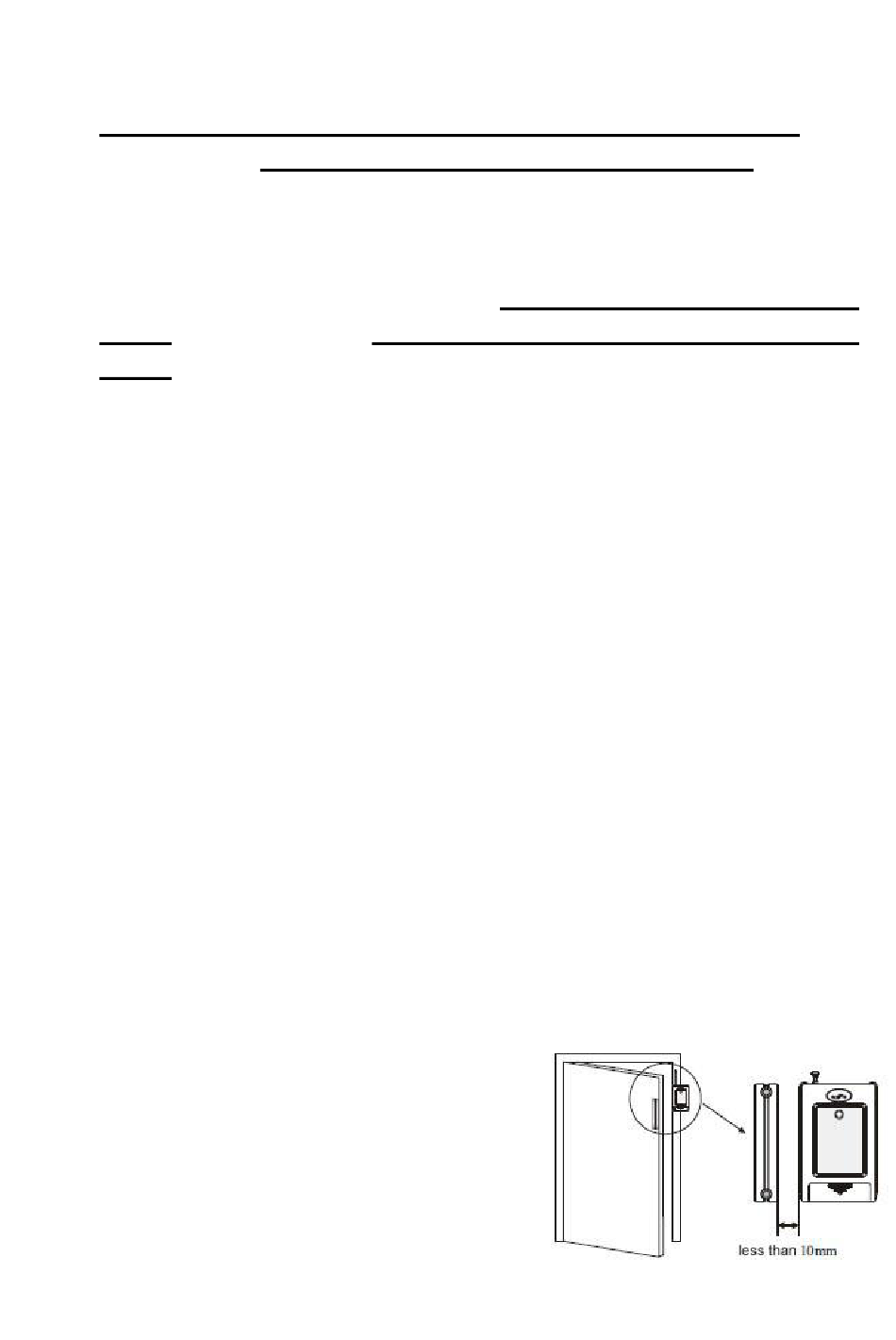

Door sensor

Door sensors are used for detecting the status of open and close of windows
and doors. It will detect it and send the signal to main panel.

Tear apart the double-side adhesive tape on the magnet and the
transmitter. Then adhere them to the appropriate position.

Magnet should be near to the side of transmitter with indicator. The two
should align with each other and the
distance should not exceed 10mm.

Please plug out the antenna for better
signal.

If the low-power indicator is on, please
change the battery.
