Mounting Template

See the back cover of this manual for the Charge Sta-
tion mounting template.

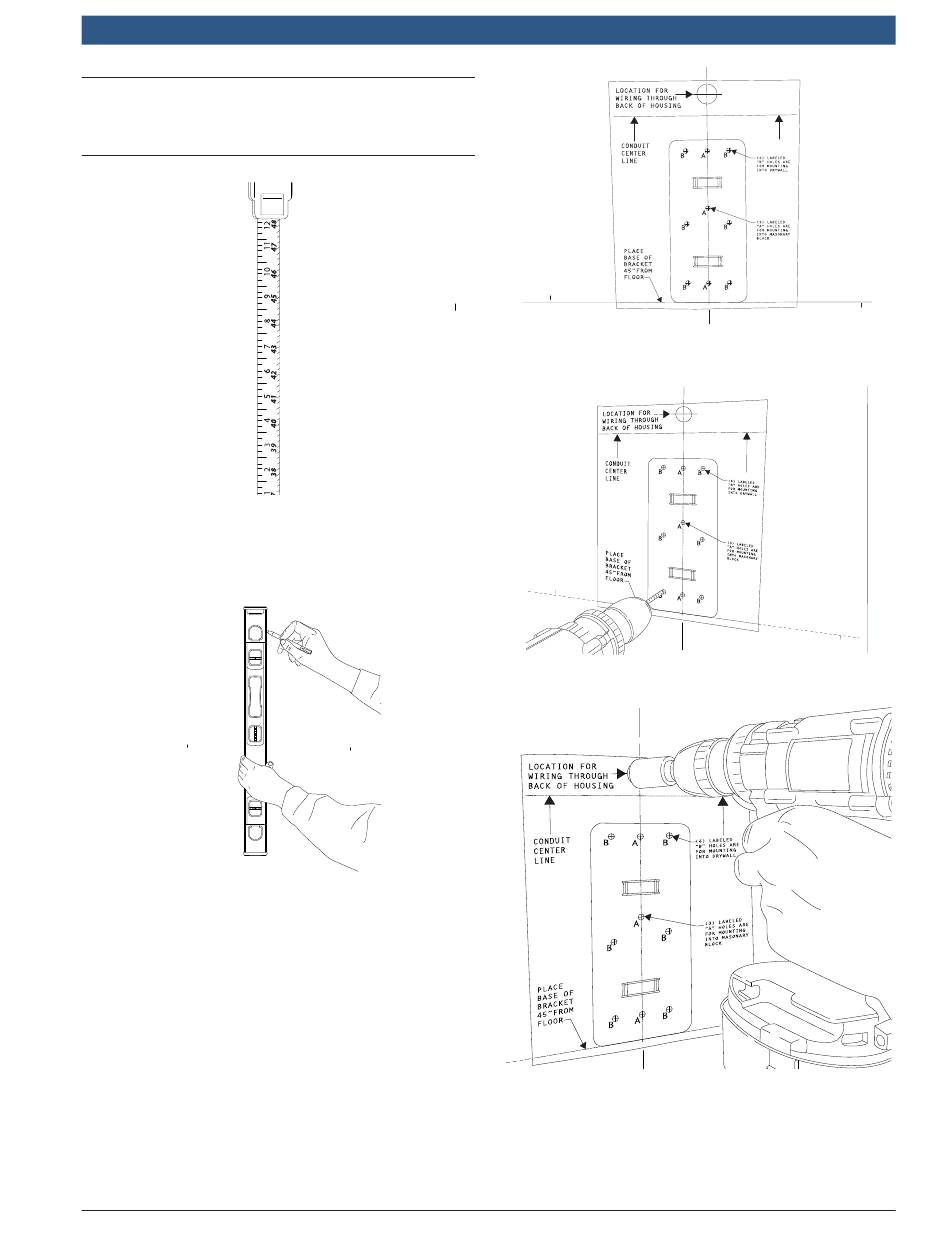

Finished Wall Charge Station Installation

ss01410
1. Using a stud finder and tape measure, locate and
mark a point equidistant between vertical studs
and 45 in. (114.3 cm) above the floor surface.
ss01411
2. From this point, use a level to draw a true vertical
line and a true horizontal line on the wall.
3. Retrieve the mounting template on the back cover
of this manual.
Bosch Automotive Service Solutions Inc.
Installation and Operating Instructions | Power Xpress Charge Station | 9 | en
ss01412
4.
ss01413
5.
ss01414
6.
Align the hash-marked center and lower horizontal
lines of the template to the lines drawn on the wall.
Adhere the template to the wall with tape.
Using a 3/16-in. (5-mm) drill bit, drill the six (6)
holes marked „B" on the template.
Using a 1 1/16-in. (28-mm) hole saw, drill a wiring-
access hole at the location indicated at the top of
the template.
