Installation
Gutter drains

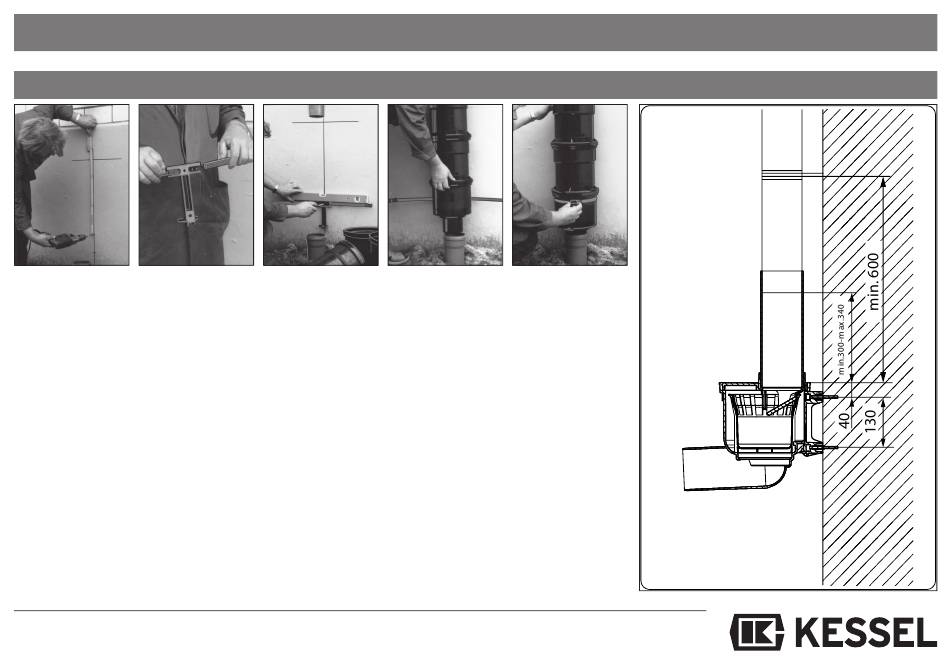

▶ Mark on and drill anchor holes as shown in the dimensioned sketch.
▶ Press retaining straps into the wall fastening from behind.
▶ Screw wall fastening onto the wall.
▶ Insert the drain completely into the discharge pipe and wall fastening.
▶ Tighten the straps of the wall fastening tautly and push into the protective pipe.
L If the odour trap is installed in a deep position, it can only be removed with tools. The KESSEL lift-out device (art. no.
850144) can be used for this. Alternatively, the odour trap can be pulled out by fitting a drainage pipe onto it.
