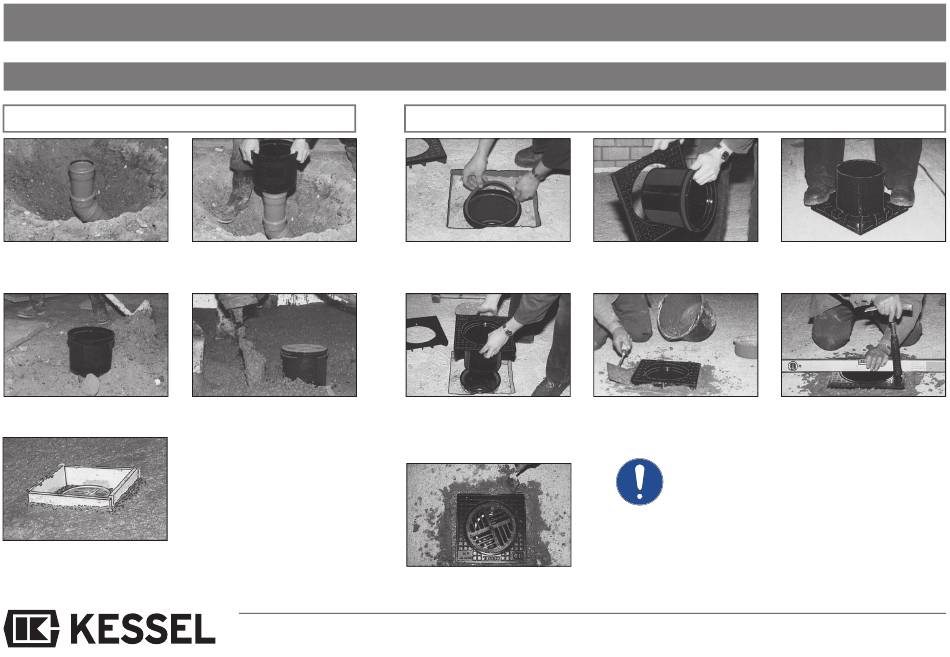

Installing the drain body
The pipe should protrude up to a
suitable distance below the ground
surface.
Fill the excavation and compact.
Set up formwork around the recess,
approx. 5 cm high and
35 cm x 35 cm (lxw).
All manuals and user guides at all-guides.com
Floor, yard and gutter drains
Put on the drain body and
the temporary cover.
Pour the concrete for the concrete
slab; cover the drain body with
socket plug DN 200 beforehand.
Installation
Installing the upper section with support frame
Insert the lip seal.
Apply lubricant on the upper section
and insert it into the drain body
(approx. 2 cm above the finished
level).
Remove residual concrete after
curing.
Insert the upper section through
the support frame from above.
Pour concrete generously under the
frame without any voids.
The stability of the product is only ensured for its self
weight, transport and for the described installation
in accordance with the intended use (e.g. load class,
road construction).
▶ Additional loads from single or strip footings or other external
actions must be avoided. If such actions are to be expected, it may
be necessary to take special measures.
4
Latch the support frame onto the
upper section
.
Position the support frame at the
required level
and align.
