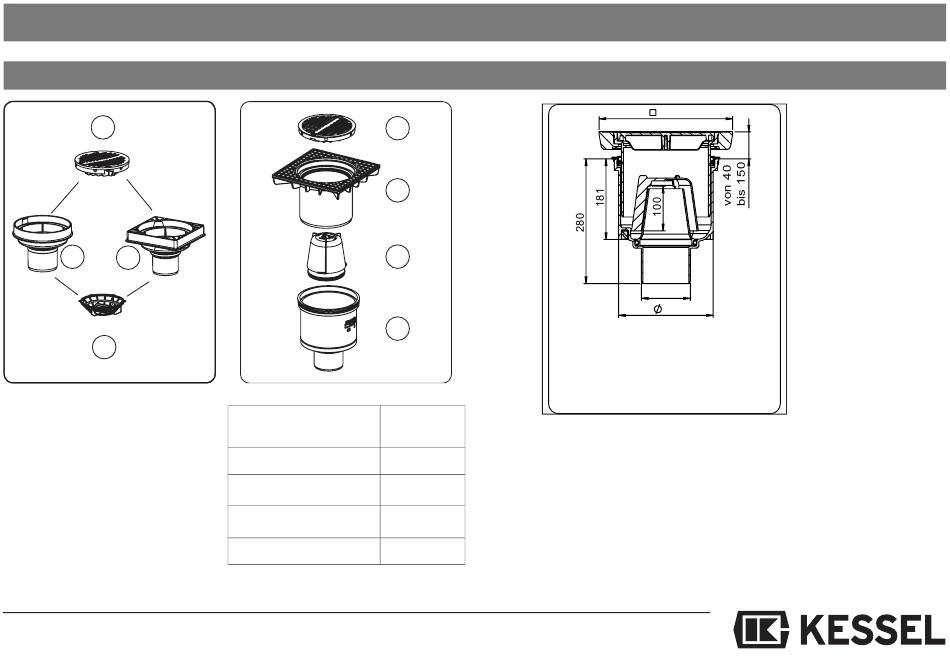

Installation example

Yard drains
1
2
3
4
frost-free depth Number of
sections
340 - 450 mm 1
580 - 690 mm 2
820 - 930 mm 3
1060 - 1170 mm 4
3
300
DN 100
210
 Slotted grating
 Upper section can be rotated with support frame, continuous height
adjustment of 40-150mm. Can be adapted to the floor level.
 Removable odour trap
④ Drain body
With art. no. 67920 A+B and 67921 A+B, no odour trap provided. With art. no.
67020.30/40 and 67060.30/40, no sludge bucket provided.
