TRITON
| Multifunctional wheelchair
•

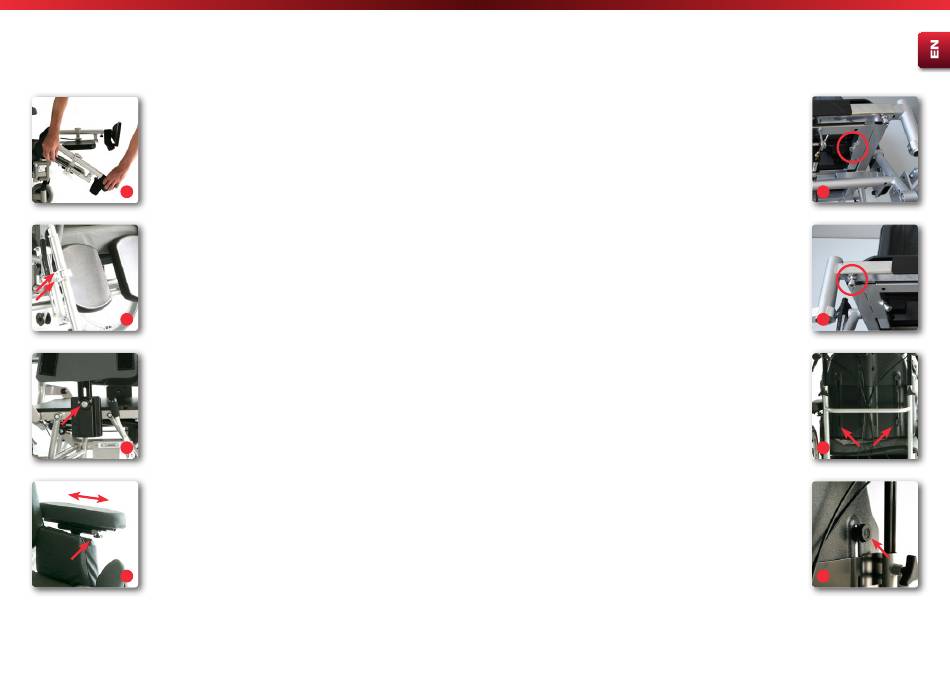

Pull the leg rests until they are in the desired position.
•
The leg rests will automatically remain in the selected position.
•
In order to lower the leg rests again, operate the lever (Fig. 11).
•
The calf pad can be moved up and down the leg rest.
•
Loosen the fixing screws (SW4) and place the calf pad in the desired
position (Fig. 12).
11
•
Tighten the fixing screws again.
4.4. Side panels and armrest
•
The height of the side panels, including the padded armrest, can
be adjusted.
•
In order to do so, operate the locking button and adjust to the desi-
red height (Fig. 13).
12
•
In order to make mounting and dismounting easier, you can also
remove the side panels completely.
•
The padded armrest can also be adjusted horizontally.
•
Loosen the plastic screw underneath the padding of the armrest
(Fig 14).
•
Move the armrest to the desired position and tighten the screw
again.
13
14
46
Multifunctional wheelchair |
4.5. Seat width
•
The width of the seat can be extended for both models by 12 cm
each in order to meet the needs of the user.
•
The same adjustments must be made on the right and left side.
•
In order to adapt the seat width, the leg supports and the side pa-
nels must be moved.
•
Tip the wheelchair onto the push handles.
•
Loosen the socket head screw (SW 6) (Fig. 15).
•
Adjust the seat to the desired width and re-tighten the socket head
screws.
4.6. Seat depth
•
The depth of the seat can be adjusted by 12 mm.
•
Take the seat padding off.
•
Loosen the 4 Allen hexagon screws (SW4) on the edge of the seat
(Fig. 16).
•
Now, move the seat to the desired position and re-tighten the screws
again.
•
Place the seat padding back on the seat.
4.7. Backrest height
•
The back height can be adjusted by 16 cm in both versions..
•
Take the backrest padding off.
•
Loosen the plastic screws at the back. (Fig. 17)
•
Adjust the backrest to the desired height and tighten the screws
again.
•
Put the padding for the backrest back on the wheelchair.
Bischoff & Bischoff GmbH | 01.06.2019
TRITON
15
16
17
18
47
