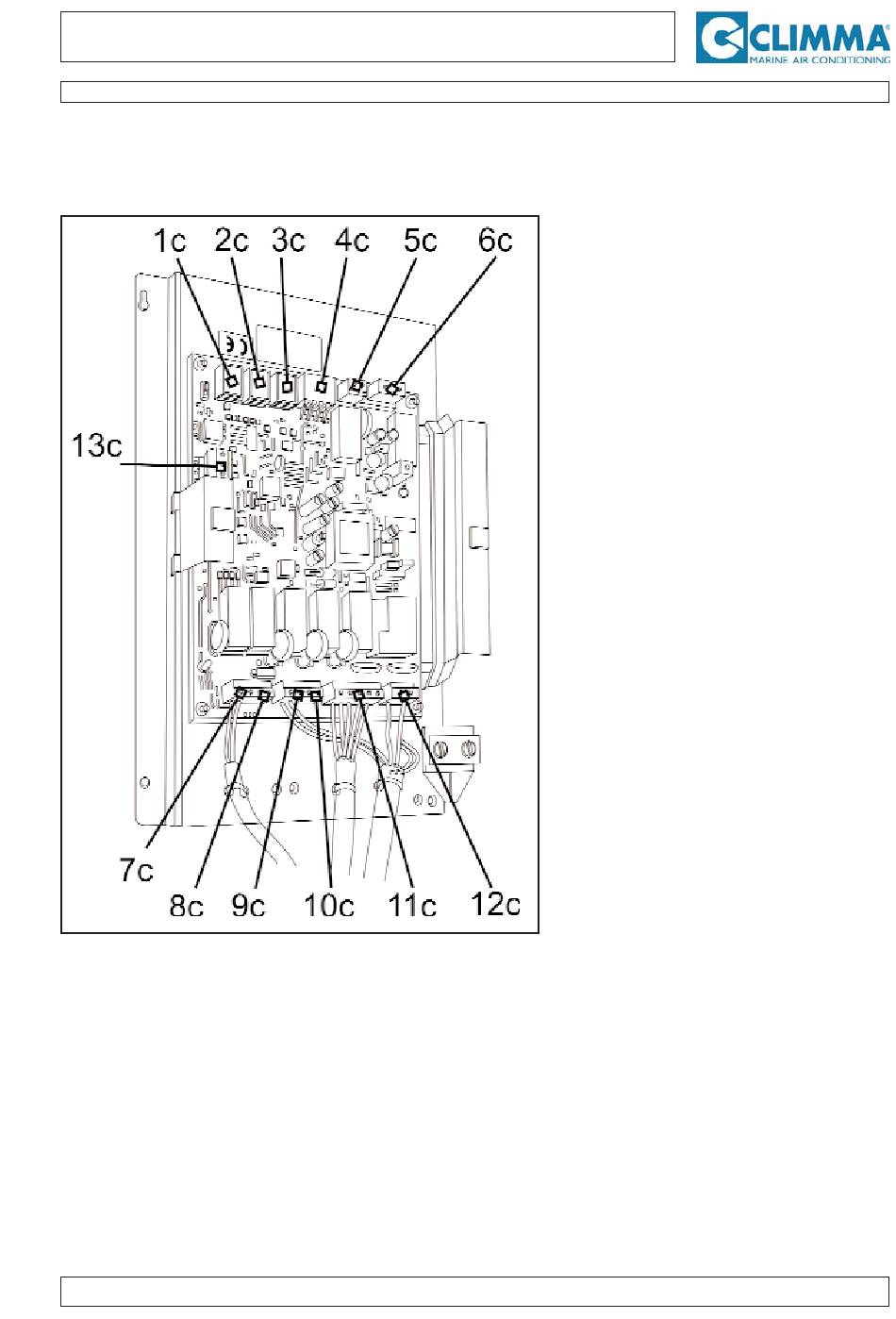

5.6 - CONNEXIONS AU PANNEAU

5.6.1 - CONNEXIONS

pag. 26
Modelli COMPACT e SPLIT - QUAT T R O
5 INSTALLATION LECTRIQUE
ROOM PROBE
1c
-OPTIONAL-
BRIDGE
2c
3c DIGITAL PANEL
4c
MECHANICAL PANEL
PUMP
5c
6c
MAIN SUPPLY
7c
HP PRESSURE
SWITCH
8c
SENSOR NTC
-OPTIONAL-
9c
REV. VALVE OR 1ST.
HEATER
10c
2ND. HEATER
11c
FAN
12c
COMPRESSOR
13c
CONNECTION FOR
RS485
