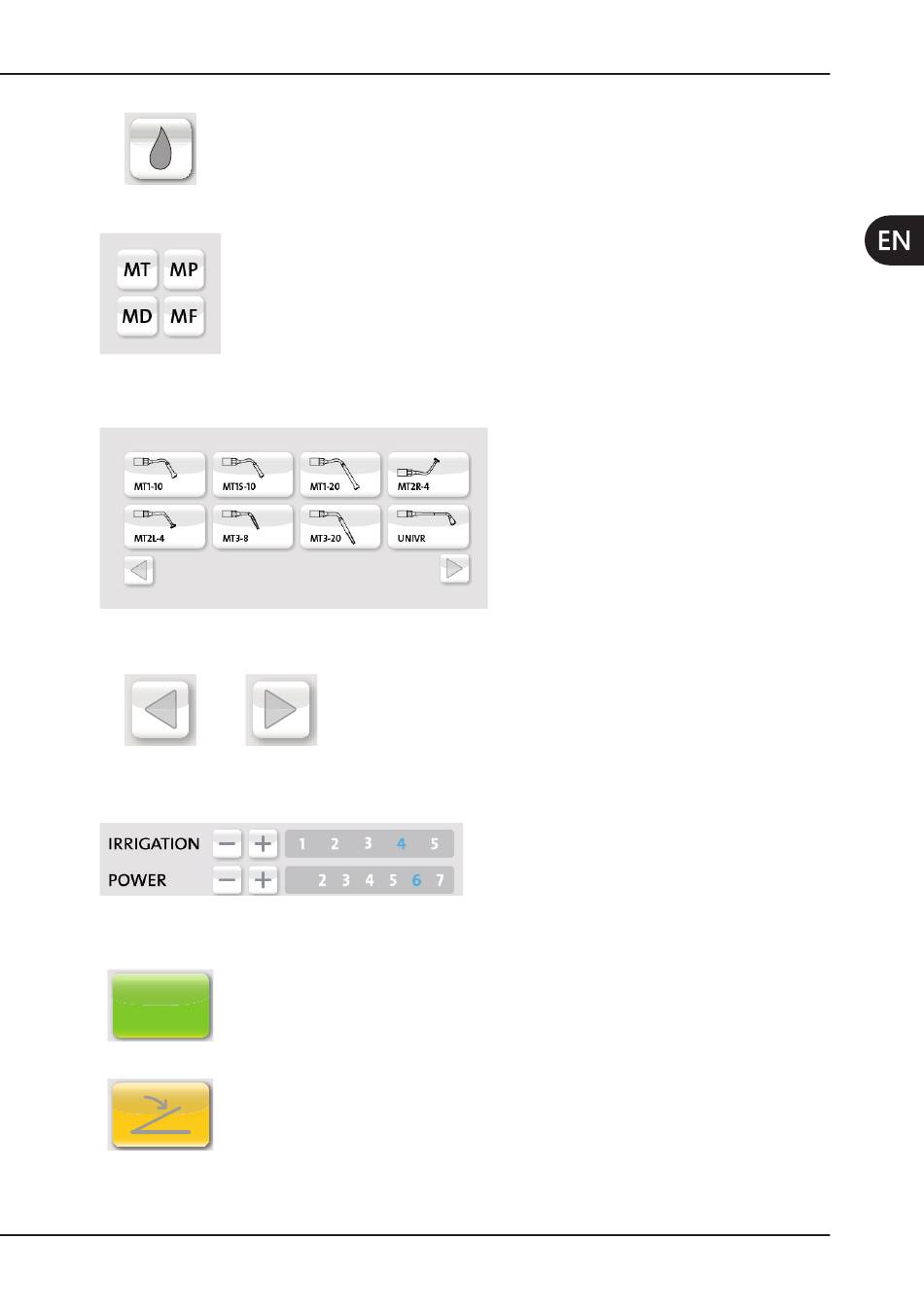

PUMP BUTTON
Enables the irrigation circuit to be filled before starting the treatment, in
order to operate with the required irrigation. The colour of the symbol
identifies the handpiece to which it is associated to.
INSERT FAMILY BUTTONS
Enable the selection of the insert family:
• MT: osteotomy
• MP: osteoplasty, curettage
• MD: drilling
• MF: finishing close to critical structures.
ACTIVATION BUTTON
OK OK
Confirms the settings previously defined and activates the device.
FOOT PEDAL BUTTON
OK
Indicates that the channel is ready to operate by pressing the foot pedal.
INSTALLATION AND CONFIGURATION
INSERT BUTTON
Allows selecting the inserts belonging
to a specific family. They are listed
according to increasing numbering, with
up to 8 shown per page.
PAGE LAYOUT BUTTONS
When there are more than 8 inserts, the
page layout buttons allow changing the
page displayed.
INSERT SETTINGS BUTTONS
Depending on the insert selected, the
default irrigation and power settings are
shown. By using the "-" and "+" buttons,
the irrigation and power levels can be
set within the range defined by the
manufacturer.
