Description
3 Description
3.1 Components

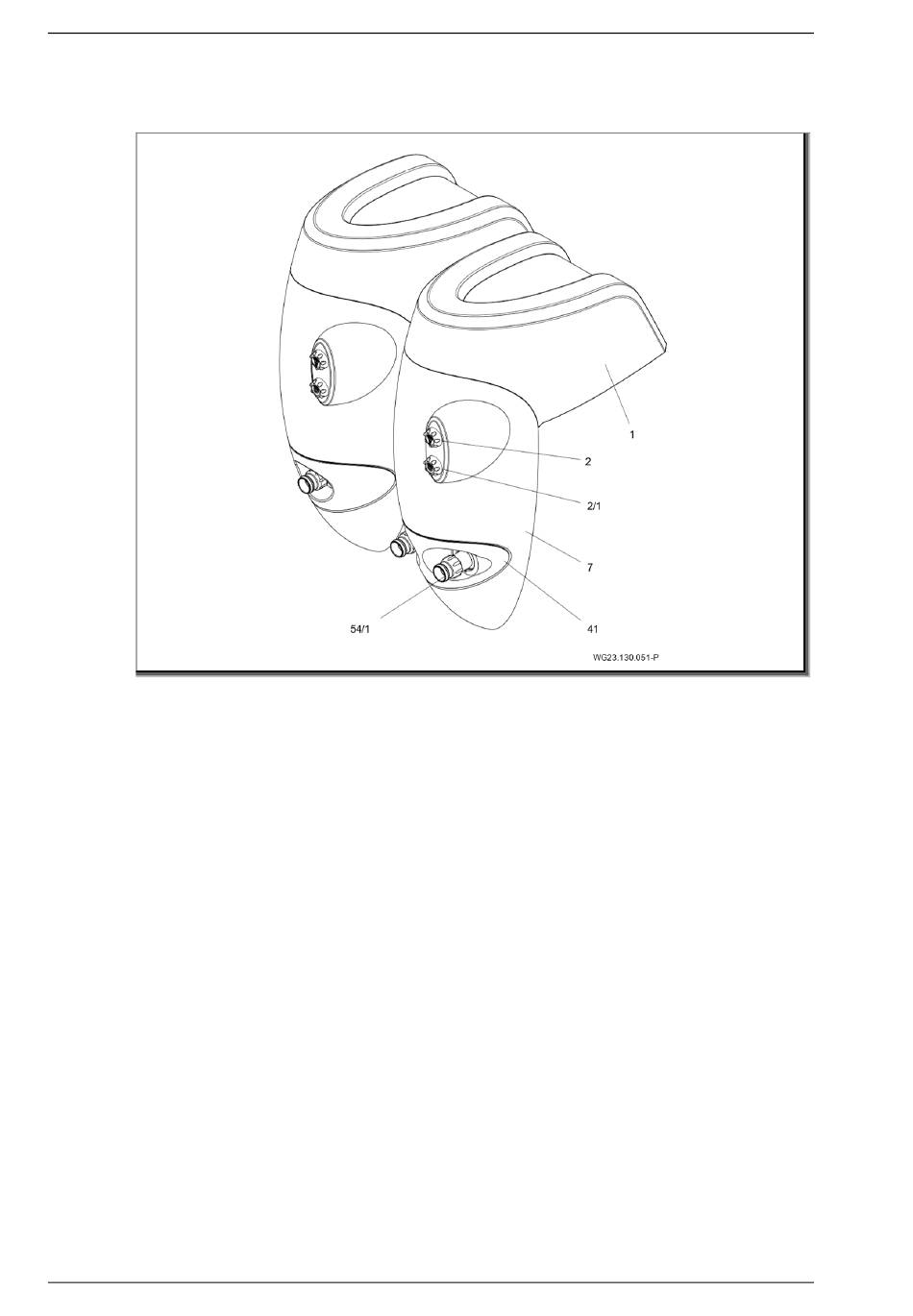

Fig. 2
(1) Cover
(2/1) Unit ON/OFF
(41) Light protection cover
3.2 Function
The overhang counter swim unit draws water from the swimming
pool via a suction line and pumps it back into the swimming pool
via the pressure line through the nozzle(s). The pump is turned
ON/OFF using the pneumatic button (2/1). By turning the
pneumatic button (2/1), air can also be added to the nozzle flow
as an option. The flow rate, and therefore the effect of the counter
swim unit, can be set using the adjustable nozzle (54/1). The unit
is equipped with integrated, underwater LED lighting for effect
lighting that can be switched ON/OFF using the pneumatic button
(2).
14 EN
(2) Light ON/OFF
(7) Cover
(54/1) Nozzle(s)
10|2020
