TIP
To store all the settings safe from power failure, these should now be saved in
the Save/load parameters window in the internal MP85A process controller
memory (Flash) and in the PC!
Select the memory directory under "File − > Specify memory directory".
Further information and tips can be called up by clicking on the Help button.
6

Measuring and displaying (continuous production)

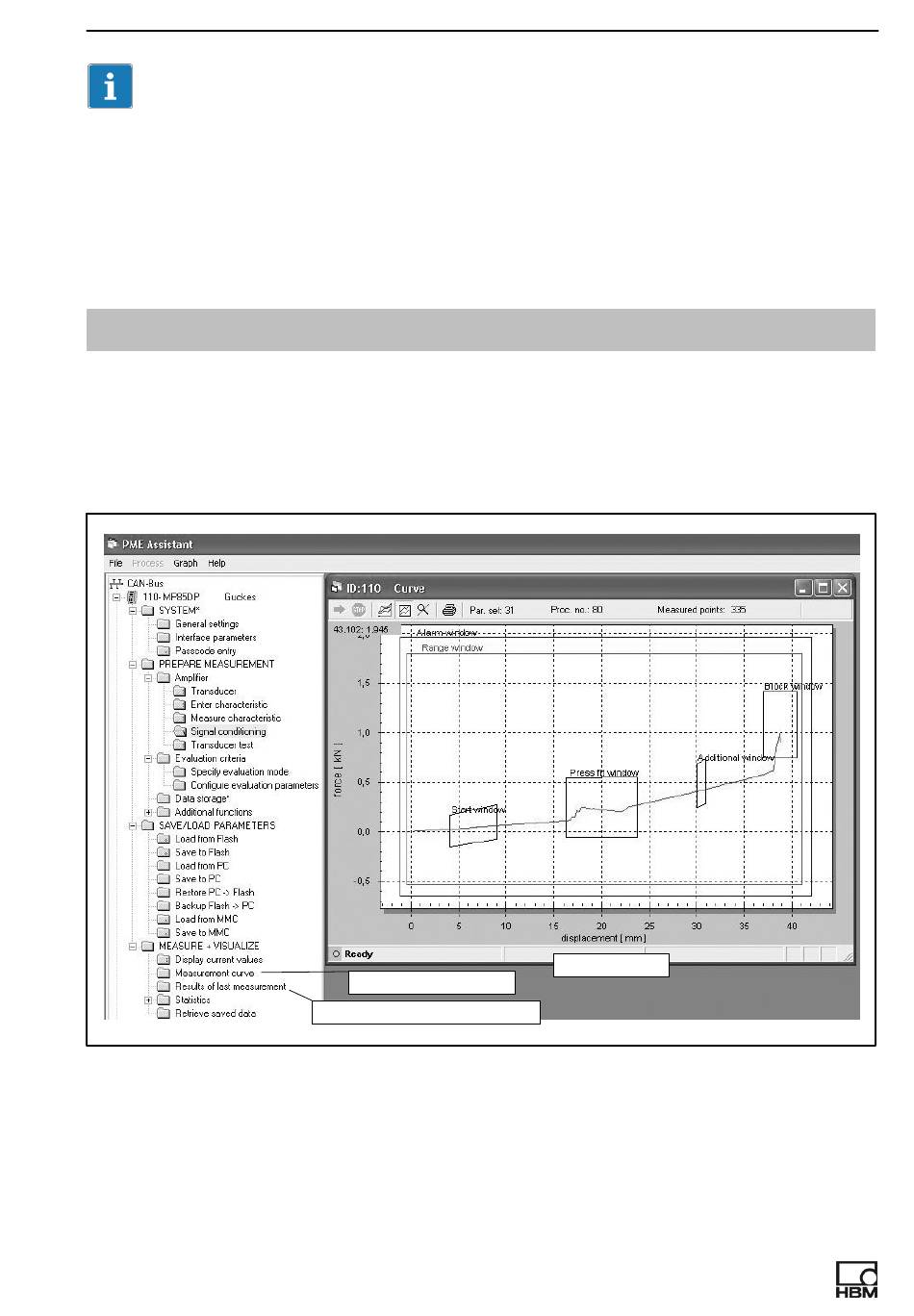

The graphic display of the test process during continuous production, with all
tolerance windows, is implemented in the Measurement curve window. By
default, the last measurement curve is always shown. It is also possible, in the
"Graphics" menu, to select the display of several curves: "Curve history".
This window also has a status bar at the lower end. It shows:
− The progress of the measurement, then after the evaluation the OK or NOK
decision
− Reasons for an alarm
− Reasons for the end of measurement
A2073-5.0 en/de/fr
Measurement curve
Results of last measurement
Status line
