ASTRA TEE® Operator's Manual

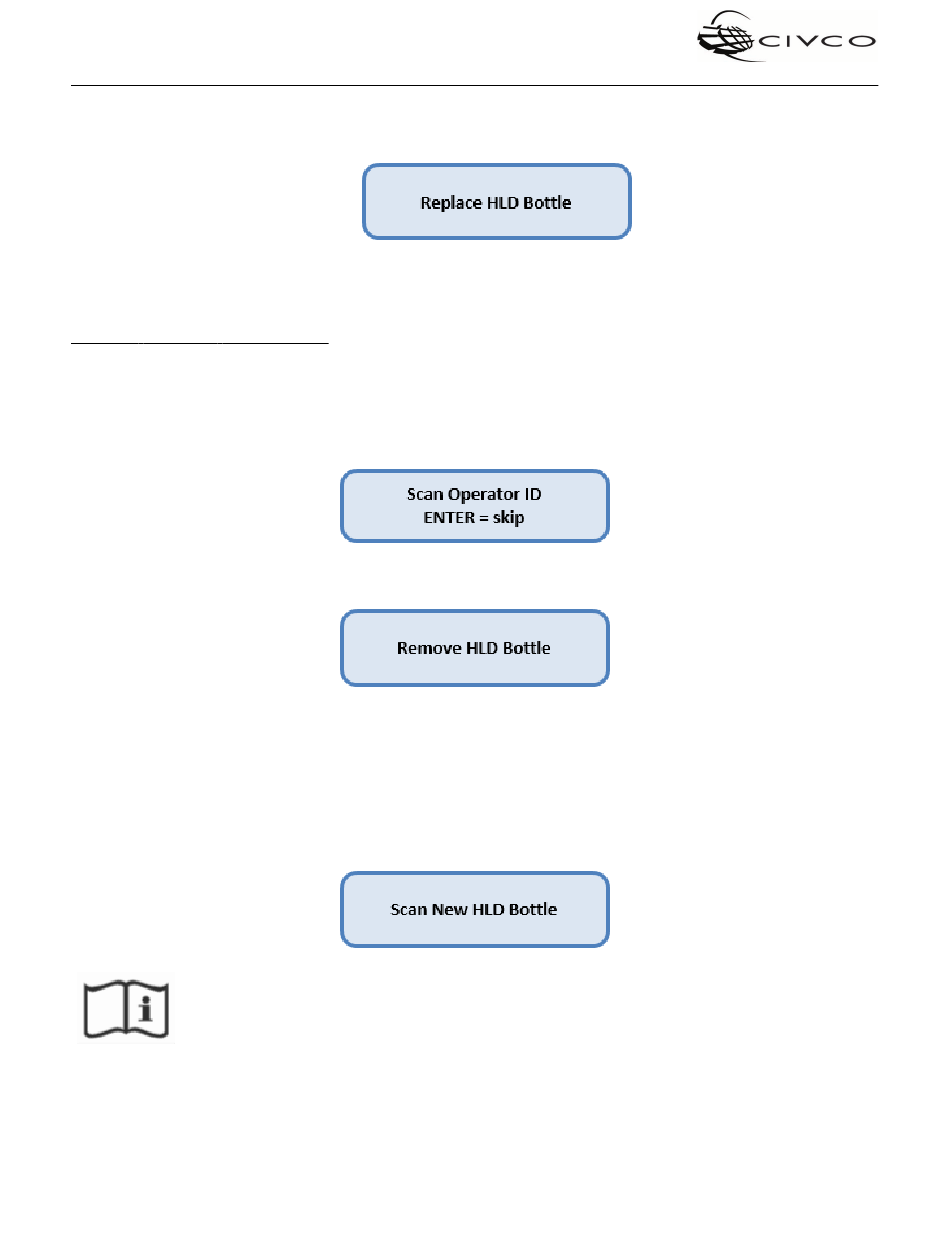

3. User initiates bottle replacement by pressing the MENU button on the keypad during idle mode. Using the
right arrow on the keypad, scroll through the menu options until it displays:
Pressing ENTER at this time will initiate a bottle replacement process – refer to "How to Replace HLD Bottle"
section.
How to Replace HLD Bottle:
When a HLD bottle replacement has been selected the following process is to be followed to replace the HLD
bottle.
1. Barcode scanner will illuminate and display will read:
2. Scan Operator ID barcode and display will read:
3. Open cabinet door.
4. Release the two quick-disconnect fittings and remove existing HLD bottle. (See Figure 4). The quick
disconnect fittings are self-sealing but a few drops may be released. Wipe these up using a paper towel.
Place the used HLD bottle in a sink.
5. Removing HLD bottle activates scanner and the display will read:
NOTE:
M0068_F
Use only HLD types approved by CIVCO Medical Solutions. System will not allow
use of unapproved HLD types. Display will read "Invalid Barcode".
16
