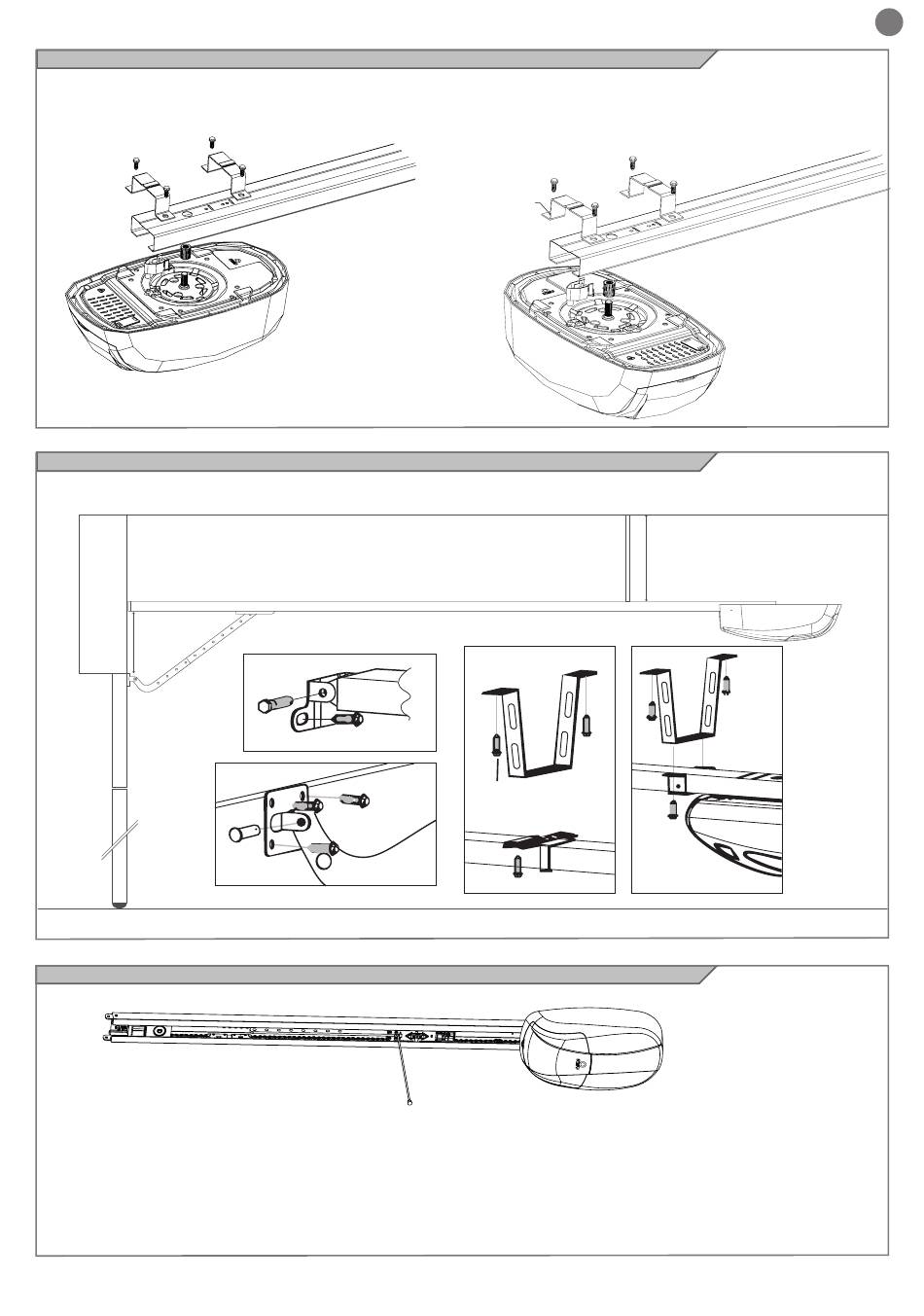

4.2 Connection of the motor body to the guide

Standard
6x15 self tapping screw
U bracket

4.3 Installation of the guide and motor on the door

Position the guide with reference to figure
Wall
MIN 0 cm
MAX 40 cm
Door
8x25 Hinge pin

4.4 Manual opening of door

In case of power failure
(1). If the door is closed:
Pull the cord and release the clutch to allow the door to be lifted easily.
(2). If the door is open:
Pull the cord once to allow the door to lower to the closed position.
Guide
lateral movement ring
Support bracket
Guide
Expansion plug
6x80 Screw
Door bracket
6x15 self-tapping
screw
Curved arm for door
Carriage
Guide
Cord
90° rotated head
6x15 self tapping screw
U bracket
Fastening
Expansion plug
Support bracket
8x20
8x20 Screw
Guide
lateral movement ring
MAX 40 cm
with standard bracket included
Fastening
Expansion
plug
U bracket
Screw
