3. Ceiling Fan Assembly
3.12

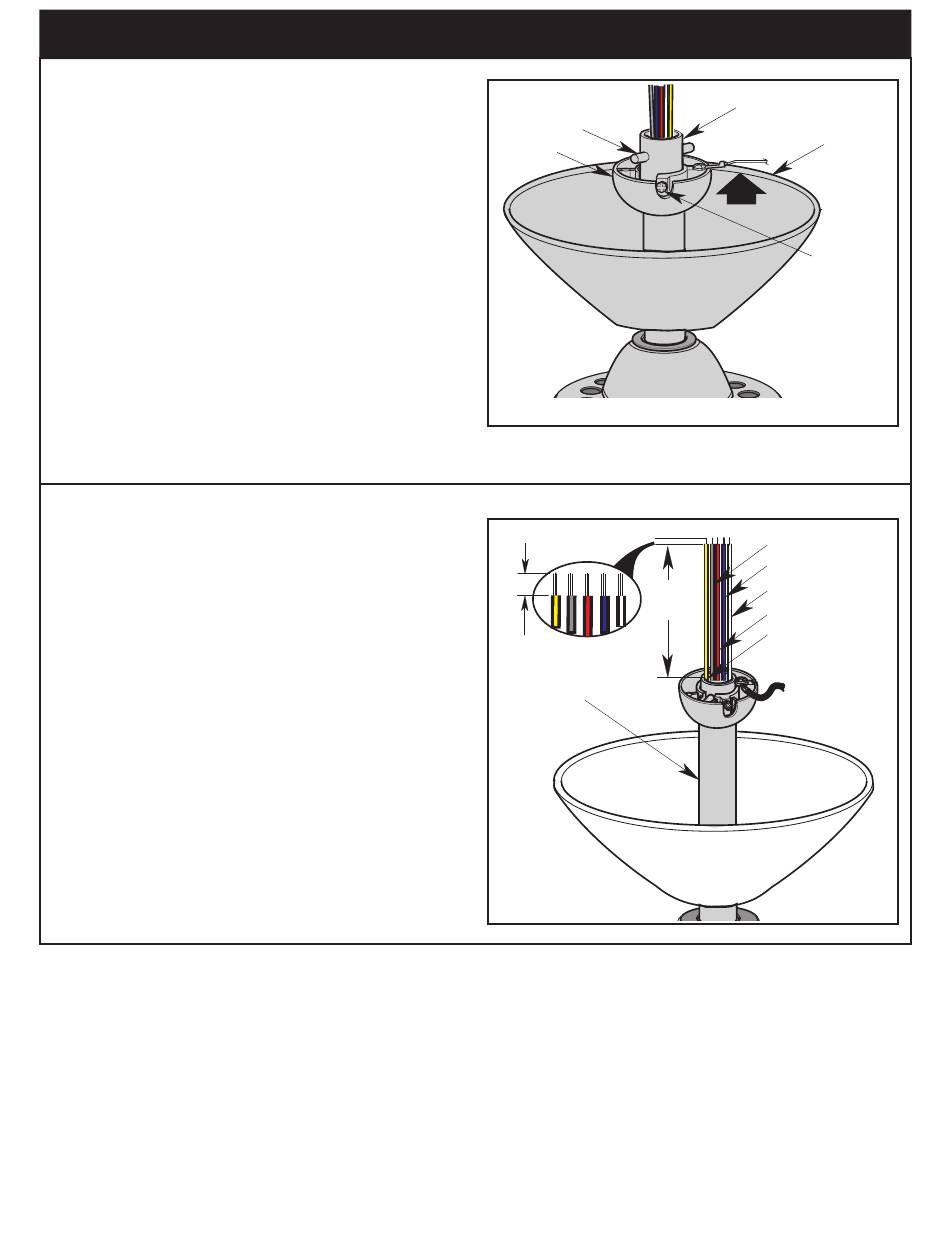

Route the Wires through the Hanger Ball (Figure 12).
Reinstall the Hanger Ball on the Downrod as follows:
Position the Pin through the two holes in the Downrod
and align the Hanger Ball so the Pin is captured in the
groove in the top of the Hanger Ball (Figure 12).
Pull the Hanger Ball up tight against the Pin and
securely tighten the Phillips Set Screw in the Hanger
Ball (Figure 12).
NOTE: A loose Set Screw could create Fan wobble.
3.13
The Fan comes with Blue, White, Grey, Red, and
Yellow Wires that are 80-inches long.
Before installing the Fan, measure up approximately
6 to 9-inches above top of Hanger Ball / Downrod
Assembly (Figure 13).
Cut off excess Wires and strip back insulation 1/2-inch
from end of Wires.
You have now partially completed the assembly of
your new Ceiling Fan, proceed to "How to Hang Your
Ceiling Fan". Final Assembly of the Ceiling Fan will be
completed once Ceiling Fan is Hung and Wired.
(Continued)
PIN
HANGER
BALL
Figure 12
INCHES
1/2
INCH
DOWNROD
Figure 13
9
DOWNROD
CEILING
COVER
PHILLIPS
SET SCREW
GREY WIRE
BLUE WIRE
WHITE WIRE
6 TO 9
RED WIRE
YELLOW WIRE
